2017 Stand-On Fuel Tank & Battery

Fuel Tank & Battery

The Bad Boy Mower Fuel Tank & Battery for the 2017 Outlaw Stand On is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the bad boy mowers parts diagrams for the 2017 Outlaw Stand On models as well. Find all of your Bad Boy mowers 2017 Outlaw Stand On parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. If you are not able to find the Bad Boy parts for your 2017 Outlaw Stand On please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

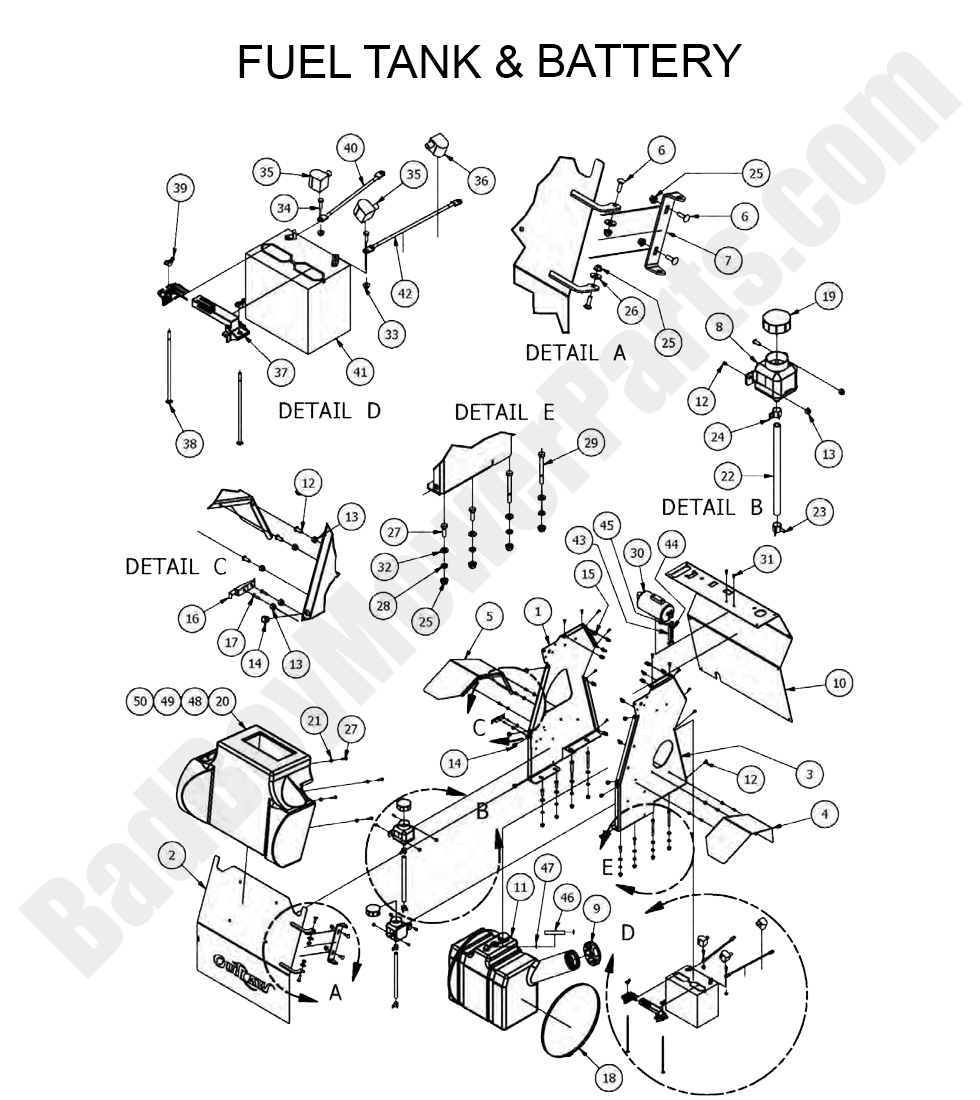

2017 Stand-On Fuel Tank & Battery
  Position Number SKU Product Title Price
6 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
7 039-0070-00 039-0070-00 - Back Cover Hinge Bracket
$14.19
8 067-8090-00 067-8090-00 - Hydraulic Expansion Tank (See Models Used On For Details)
$31.22
9 066-8076-00 066-8076-00 - Non-Tethered Fuel Kelch Cap - 3.5 Neck
$32.05
11A 067-4095-00 067-4095-00 - Fuel Gauge for 067-0030-00
$50.28
11 067-0030-00 067-0030-00 - 2015-2017 Stand-On & 2019-2022 Revolt Fuel Tank
$256.99
12 018-8064-00 018-8064-00 - 1/4-20 X 5/8 BS C/S 18-8 SS
$2.99
13 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
14 014-3010-00 014-3010-00 - 5/8 Round Insert - Deck
$2.99
15 013-0054-00 013-0054-00 - 1/4-20 Cage Nut
$2.99
16 052-3000-00 052-3000-00 - Steel Pump Cover Latch-Diesel 97-60-120-15
$29.95
17 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
18 072-0050-00 072-0050-00 - Fuel Tank Clamp - Stand On & Walk Behind
$8.01
19 066-5050-00 066-5050-00 - Hydraulic Tank Cap (See Models Used On For Details)
$15.60
20 071-5075-00 071-5075-00 - 2015 Stand On Seat Cushion
$353.62
21 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
22 051-8063-00 051-8063-00 - 3/8 Clear Hose PRICED PER FOOT
$2.99
23 072-8066-00 072-8066-00 - 1/2 Hose Clamp
$2.99
24 072-8065-00 072-8065-00 - 3/8 Hose Clamp - CTB-16-STFS
$2.99
25 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
26 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
27 018-2007-00 018-2007-00 - 5/16-18 X 1 GR 5 Hex Bolt Zinc
$2.99
28 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
29 018-4701-00 018-4701-00 - 5/16-18 X 3 GR 5 Hex Bolt Zinc
$2.99
30 067-0020-00 067-0020-00 - Carbon Canister ZT,CZT,Outlaw RY652CC
$62.40
31 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT CL 8
$2.99
32 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
33 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/ Serrations
$2.99
34 018-8052-00 018-8052-00 - 1/4-20 X 3/4 GR 5 Hex Bolts
$2.99
35 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
36 103-5300-00 103-5300-00 - Red Lug Boot
$5.82
37 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
38 018-8050-00 018-8050-00 - 1/4-20 X 8 Carriage Bolts Zinc Bolt for Battery Hold Down
$2.99
39 013-8051-00 013-8051-00 - 1/4-20 Wing Nuts Zinc
$2.99
40 064-0030-00 064-0030-00 - 24 inch Black Cable
$18.72
42 064-5300-00 064-5300-00 - 24 Red Battery Cable
$21.85
43 051-8072-00 051-8072-00 - 1/4" Vinyl Tubing - Black (Priced Per Foot)
$2.99
44 051-8073-00 051-8073-00 - 3/16" Vinyl Tubing (Priced Per Foot)
$2.99
45 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 Vinyl Hose (See Models Used On For Detail)
$2.99
46 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose PRICED/FOOT
$6.41
47 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99

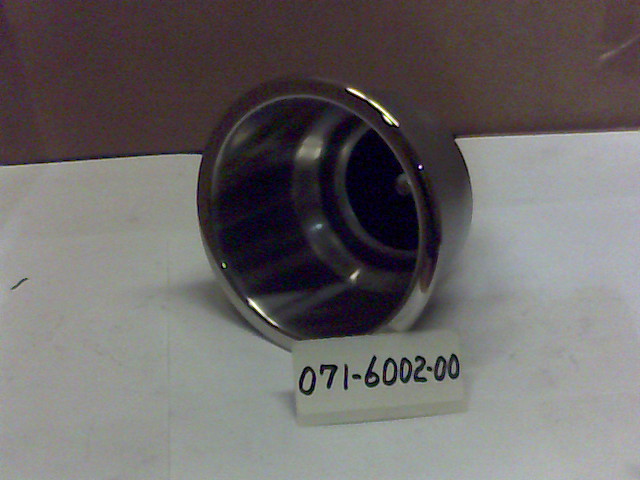

48 071-6002-00 071-6002-00 - Cup Holder-Stand On
$16.05
49 071-5999-00 071-5999-00 - Cup Holder Drain Tube-Stand On
$8.79
50 071-6003-00 071-6003-00 - Black Plastic Tray for Seat Cusion for Stand On Mower
$32.09
