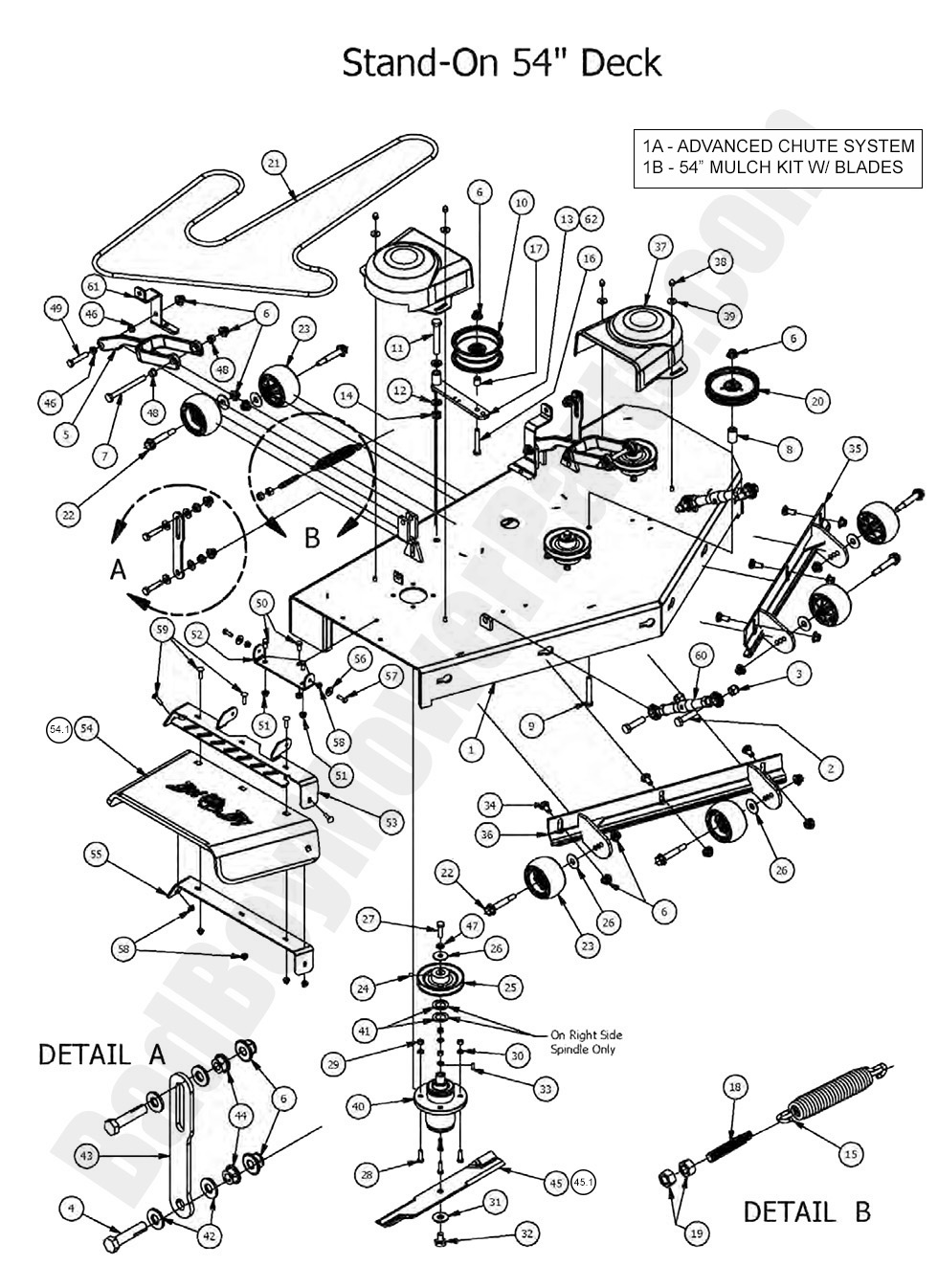

2017 Stand-On 54" Deck Assembly

54" Deck Assembly

The Bad Boy Mower 54" Deck Assembly for the 2017 Outlaw Stand On is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the bad boy mowers parts diagrams for the 2017 Outlaw Stand On models as well. Find all of your Bad Boy mowers 2017 Outlaw Stand On parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. If you are not able to find the Bad Boy parts for your 2017 Outlaw Stand On please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2017 Stand-On 54" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6050-00 088-6050-00 - Cable Advanced Chute System Assembly (See Models Used On For Detail)
$266.43
1B 210-0354-00 210-0354-00 - 2019-2024 54" Mulch Kit w/Blades (Not for MZ or Avenger)
$340.74
1 060-1154-00 060-1154-00 - 2015-2017 54" Stand On Deck
$1337.49
3 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
4 018-6037-00 018-6037-00 - 1/2-13 X 2-1/4 GR 5 Hex Bolts
$2.99
5 031-6020-00 031-6020-00 - Deck Hanger-Black - (Replaces 031-5351-00 - 031-5352-00 - 031-6000-00 - 031-6010-00)
$141.97
6 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
7 018-1090-00 018-1090-00 - 1/2-13x5 1/2 Hex Bolt Grade 5
$3.29
8 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500 Leng th Spacer Zinc
$3.62
9 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
10 033-5000-00 033-5000-00 - 5 3/4" Double Bearing Flat Idler Pulley
$56.77
11 018-5311-00 018-5311-00 - 5/8-11 X 4 GR 5 Hex Bolts Zinc
$4.06
12 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
13 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
14 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknu t Zinc
$2.99
15 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
16 018-7016-00 018-7016-00 - 1/2-13 X 3 GR 5 Hex Bolts Zinc
$2.99
17 025-5203-00 025-5203-00 - Spacer 3/4ODx1/2IDx0.75 Susp f ork
$3.29
18 018-2004-50 018-2004-50 -2017-2022 All Thread (See Models Used On)
$12.94
19 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
20 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley-Capitol Stampings
$35.48
20 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 GR 5 Hex Bolts
$2.99
21 041-0120-00 041-0120-00 - Deck Belt (See Models Used On For More Details - Not for 54" MZ)
$88.80
22 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
23A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
23 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
24 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
25 033-6006-00 033-6006-00 - 5.25" Deck Pulley-54" ZT/Maverick/Outlaw (without set screw)
$35.48
26 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
27 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 GR 5 Bolts Zinc, Fine Thread Bolt
$2.99
28 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 GR 5 Hex Bolt
$2.99
29 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
30 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
31 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
32 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
33 042-6030-00 042-6030-00 - 1/4 x 1 Square Key
$4.81
34 018-3003-00 018-3003-00 - 1/2 x 1 1/4 Carriage Bolt
$2.99
35 060-5520-00 060-5520-00 - 54 Outlaw & Stand On Adjustable Deck Front (Left Gate)
$85.99
36 060-5530-00 060-5530-00 - 54 Outlaw & Stand On Adjustable Deck Front (Right Gate)
$85.99
37 014-5000-00 014-5000-00 - Pulley Cover (See Models Used On For Details)
$15.60
38 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
39 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
40 037-4000-00 037-4000-00 - All Diesel/Outlaw Models (Will Not Work on Compact Outlaw), 2017 Stand-On (Will Not Work on 36" Stand-On), 2022 Maverick HD Spindle Assembly
$312.34
41 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
42 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
43 039-0235-00 039-0235-00 - Stand On Deck Hanger Tab (See Models Used On For Details)
$7.69
44 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
45.1 038-0003-00 038-0003-00 - 54" & 2024 Raider 36" Deck Gator Mulching Blade
$22.99
45 038-0001-00 038-0001-00 - 54" & 2024 Raider 36" High Lift Fusion Blade
$22.99
46 032-5057-00 032-5057-00 - Flange for Lower Deck Arm SF-1622-5
$5.82
47 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
48 032-5056-00 032-5056-00 - Flange Bushing-Deck Arms EF081108 - Frame Mounted
$5.82
49 018-0015-00 018-0015-00 - 1/2-13 x 2 1/2 Hex Bolt Gr 5
$2.99
50 018-5250-00 018-5250-00 - 3/8-16 X 3/4 GR 5 Hex Bolts
$2.99
51 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
53 039-4864-00 039-4864-00 - Discharge Chute Upper Hanger Plate (See Models Used On For Detail)
$42.52
54.1 210-6005-98 210-6005-98 - Chute Assembly (See Models Used On For Detail)
$160.49
54 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
55 039-4863-00 039-4863-00 - Discharge Lower Bracket Rubber Chute (See Models Used On For Detail)
$32.65
56 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
57 018-2007-00 018-2007-00 - 5/16-18 X 1 GR 5 Hex Bolt Zinc
$2.99
58 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
59 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99

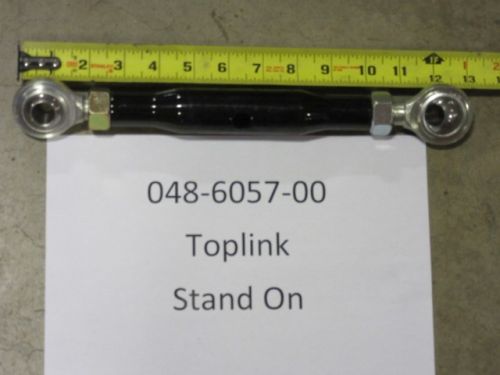

60 048-6057-00 048-6057-00 - Toplink-Stand Ons-Black Body
$32.05
61 039-2009-00 039-2009-00 - Stand On Deck Stop
$5.49
62 039-6945-05 039-6945-05 - Deck Idler Assy-35 Diesel/Stan d On
$38.47
