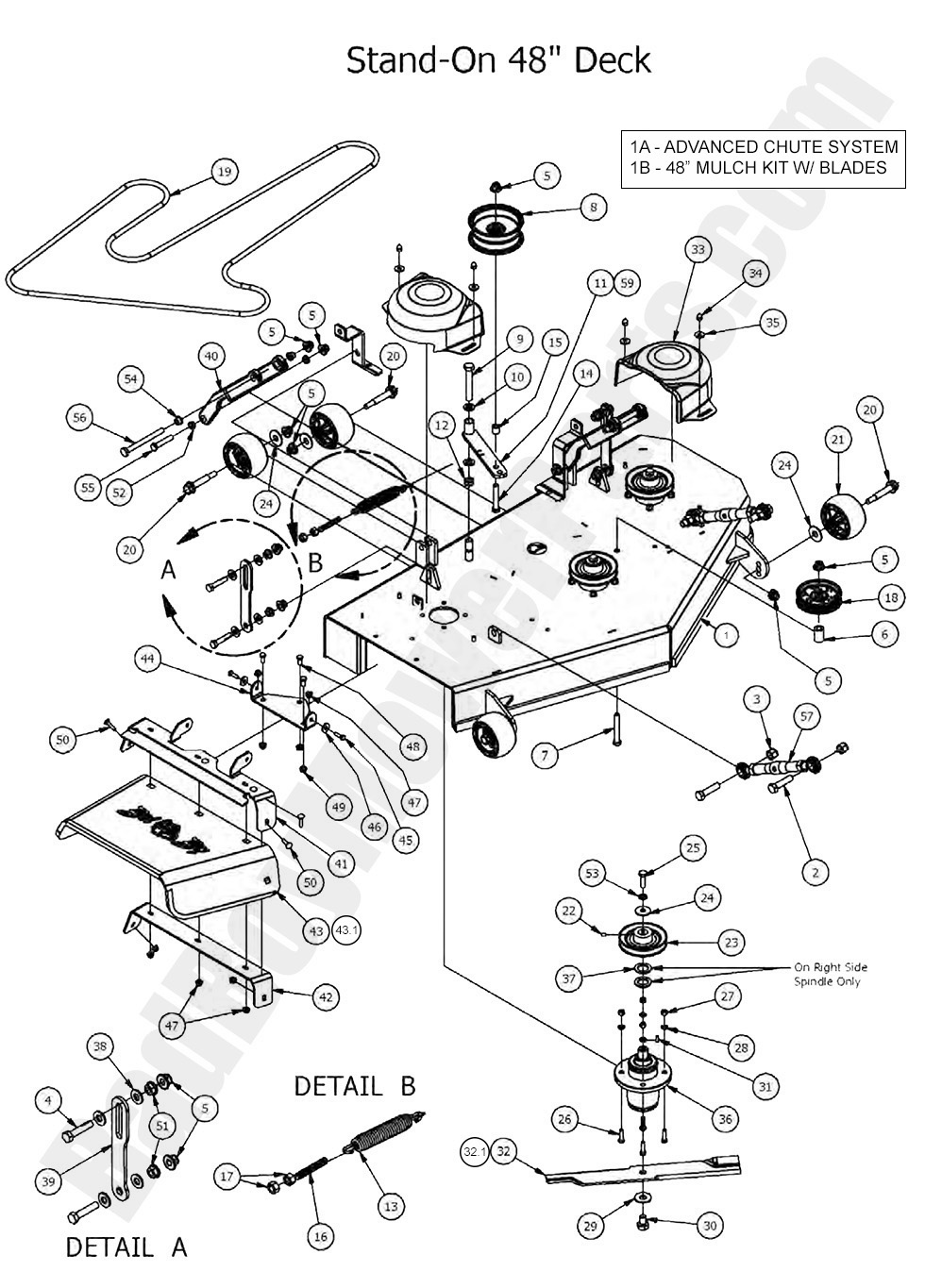

2017 Stand-On 48" Deck Assermbly

48" Deck Assermbly

The Bad Boy Mower 48" Deck Assermbly for the 2017 Outlaw Stand On is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the bad boy mowers parts diagrams for the 2017 Outlaw Stand On models as well. Find all of your Bad Boy mowers 2017 Outlaw Stand On parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. If you are not able to find the Bad Boy parts for your 2017 Outlaw Stand On please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2017 Stand-On 48" Deck Assermbly
  Position Number SKU Product Title Price
1A 088-6050-00 088-6050-00 - Cable Advanced Chute System Assembly (See Models Used On For Detail)
$266.43
1B 210-0348-50 210-0348-50 - 2017-2018 48" Stand On Mulch Kit w/Blades
$256.79
1 060-1148-00 060-1148-00 - 2015-2016 48" Stand On Deck Shell
$1497.99
2 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 GR 5 Hex Bolts
$2.99
3 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
4 018-6037-00 018-6037-00 - 1/2-13 X 2-1/4 GR 5 Hex Bolts
$2.99
5 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
6 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500 Leng th Spacer Zinc
$3.62
7 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
8 033-5000-00 033-5000-00 - 5 3/4" Double Bearing Flat Idler Pulley
$56.77
9 018-5311-00 018-5311-00 - 5/8-11 X 4 GR 5 Hex Bolts Zinc
$4.06
10 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
11 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
12 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknu t Zinc
$2.99
13 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
14 018-7016-00 018-7016-00 - 1/2-13 X 3 GR 5 Hex Bolts Zinc
$2.99
15 025-5203-00 025-5203-00 - Spacer 3/4ODx1/2IDx0.75 Susp f ork
$3.29
16 018-2004-50 018-2004-50 -2017-2022 All Thread (See Models Used On)
$12.94
17 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
18 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
19 041-5200-00 041-5200-00 - Deck Belt (Not for 48"/50" ZT) (See Models Used On For Details)
$80.24
20 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
21A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
21 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
22 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
23 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
24 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
25 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 GR 5 Bolts Zinc, Fine Thread Bolt
$2.99
26 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 GR 5 Hex Bolt
$2.99
27 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
28 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
29 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
30 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
31 042-6030-00 042-6030-00 - 1/4 x 1 Square Key
$4.81
32.1 038-5000-00 038-5000-00 - 48"/50" Gator Mulching Blade
$22.99
32 038-5350-00 038-5350-00 - 48"/50" High Lift Fusion Blade
$22.99
33 014-4000-00 014-4000-00 - Pulley Cover (See Models Used On For Details)
$28.39
34 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
35 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
36 037-4000-00 037-4000-00 - All Diesel/Outlaw Models (Will Not Work on Compact Outlaw), 2017 Stand-On (Will Not Work on 36" Stand-On), 2022 Maverick HD Spindle Assembly
$312.34
37 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
38 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
39 039-0235-00 039-0235-00 - Stand On Deck Hanger Tab (See Models Used On For Details)
$7.69
40 031-6020-00 031-6020-00 - Deck Hanger-Black - (Replaces 031-5351-00 - 031-5352-00 - 031-6000-00 - 031-6010-00)
$141.97
41 039-4870-00 039-4870-00 - 48/52 Discharge Top Bracket Ru bber Chute Assembly
$42.52
42 039-4871-00 039-4871-00 - 48/52 Discharge Lower Bracket Rubber Chute
$32.65
43.1 210-6005-48 210-6005-48 - Chute Assembly (See Models Used On For Detail)
$181.89
43 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
44 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
45 018-2007-00 018-2007-00 - 5/16-18 X 1 GR 5 Hex Bolt Zinc
$2.99
46 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
47 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
48 018-5250-00 018-5250-00 - 3/8-16 X 3/4 GR 5 Hex Bolts
$2.99
49 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
50 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
51 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
52 032-5057-00 032-5057-00 - Flange for Lower Deck Arm SF-1622-5
$5.82
53 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
54 032-5056-00 032-5056-00 - Flange Bushing-Deck Arms EF081108 - Frame Mounted
$5.82
55 018-0015-00 018-0015-00 - 1/2-13 x 2 1/2 Hex Bolt Gr 5
$2.99
56 018-1090-00 018-1090-00 - 1/2-13x5 1/2 Hex Bolt Grade 5
$3.29
57 048-6057-00 048-6057-00 - Toplink-Stand Ons-Black Body
$32.05
59 039-6945-05 039-6945-05 - Deck Idler Assy-35 Diesel/Stan d On
$38.47
