2013 Stand-On Drive Arms

Drive Arms

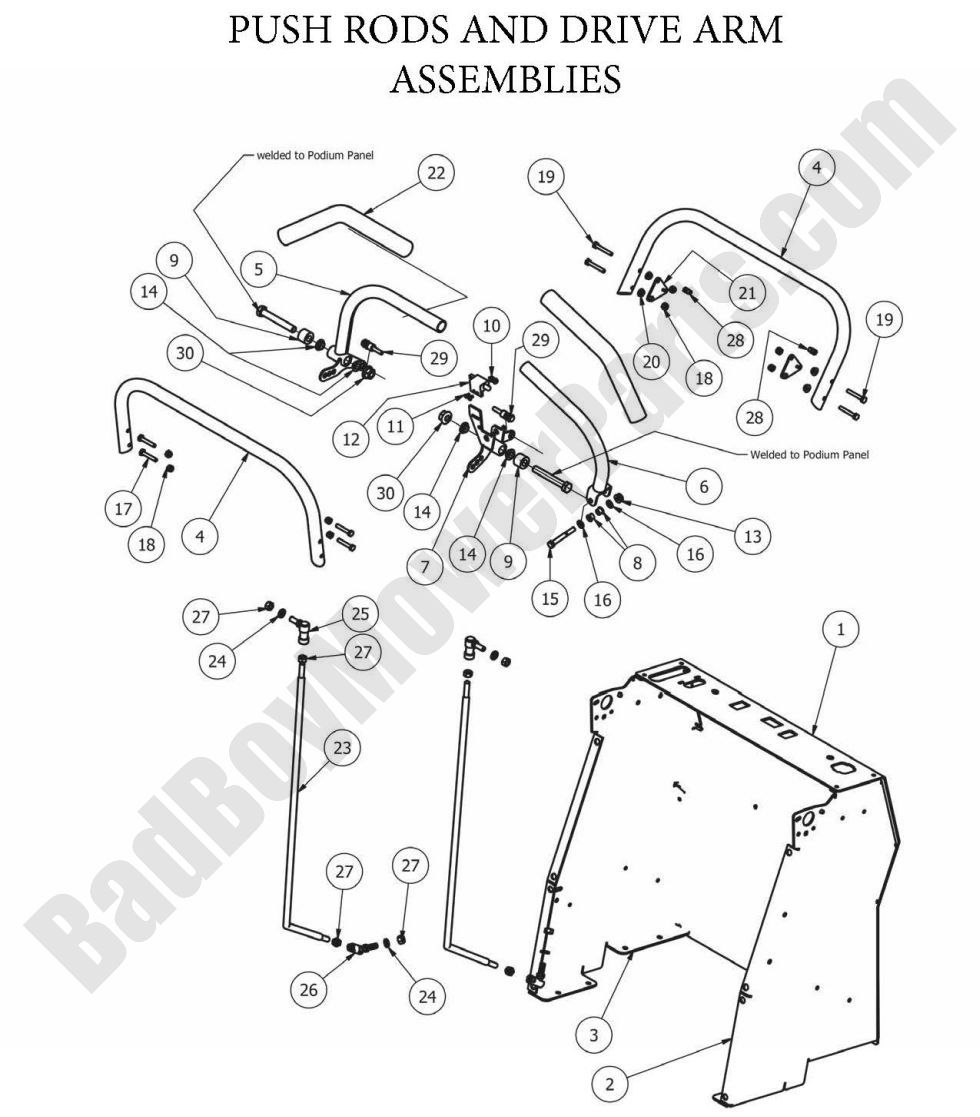

The Bad Boy Mower parts diagram for the 2013 Stand-On Drive Arms is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2013 Stand-On models. Find all of your Bad Boy mowers 2013 Stand-On parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2013 Stand-On Drive Arms. If you are not able to find the Bad Boy parts for your 2013 Stand-On please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2013 Stand-On Drive Arms
  Position Number SKU Product Title Price
1 079-4020-00 079-4020-00 - 2012-2014 Stand On Podium Front Panel
$106.99
2 079-4030-00 079-4030-00 - 2012-2014 Stand on Podium Panel Right Side
$21.39
8 032-5002-00 032-5002-00 - Stand On Flange Bushing-Steering Arms-SF-1014-6
$2.99
9 025-0012-00 025-0012-00 - Steering Arm Spacer-Stand On
$7.28
10 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zin c Orange Nylon
$2.99
11 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
12 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
13 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
14 032-5055-00 032-5055-00 - Drive Arm Bushing (See Models Used On For Detail)
$6.41
15 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
16 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
17 018-5005-00 018-5005-00 - 1/4-20 X 1-1/2 GR 5 Hex Bolt
$2.99
18 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
19 018-0018-00 018-0018-00 - 1/4-20x1 3/4" Hex Bolt
$2.99
20 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/ Serrations
$2.99
21 039-0203-00 039-0203-00 - Obsolete - Neutral Safety Tab Stand On Model USE 039-0203-17 (obsolete)
use part #039-0203-17
$5.49
22 069-4010-00 069-4010-00 - Black Steering Grip
$8.12
23 035-1000-00 035-1000-00 - 2012-2017 Stand-On Push Rod
$28.32
24 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
25 099-2009-00 099-2009-00 - Quick Release Ball Joint (See Models Used On For Details)
$9.89
26 099-6046-00 099-6046-00 - Ball Joint - 3/8-24 (See Models Used On For Details)
$12.83
27 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nuts Zinc
$2.99
28 077-1000-00 077-1000-00 - Magnet-Steering Arm-Stand ON
$14.82
29 086-0015-00 086-0015-00 - Safety Switch Harness
$70.27
30 013-0085-00 013-0085-00 - 1/2-13 HEX FLANGE (GR.G) ZC
$2.99
