2013 Stand-On Frame & Idler Assembly

Frame & Idler Assembly

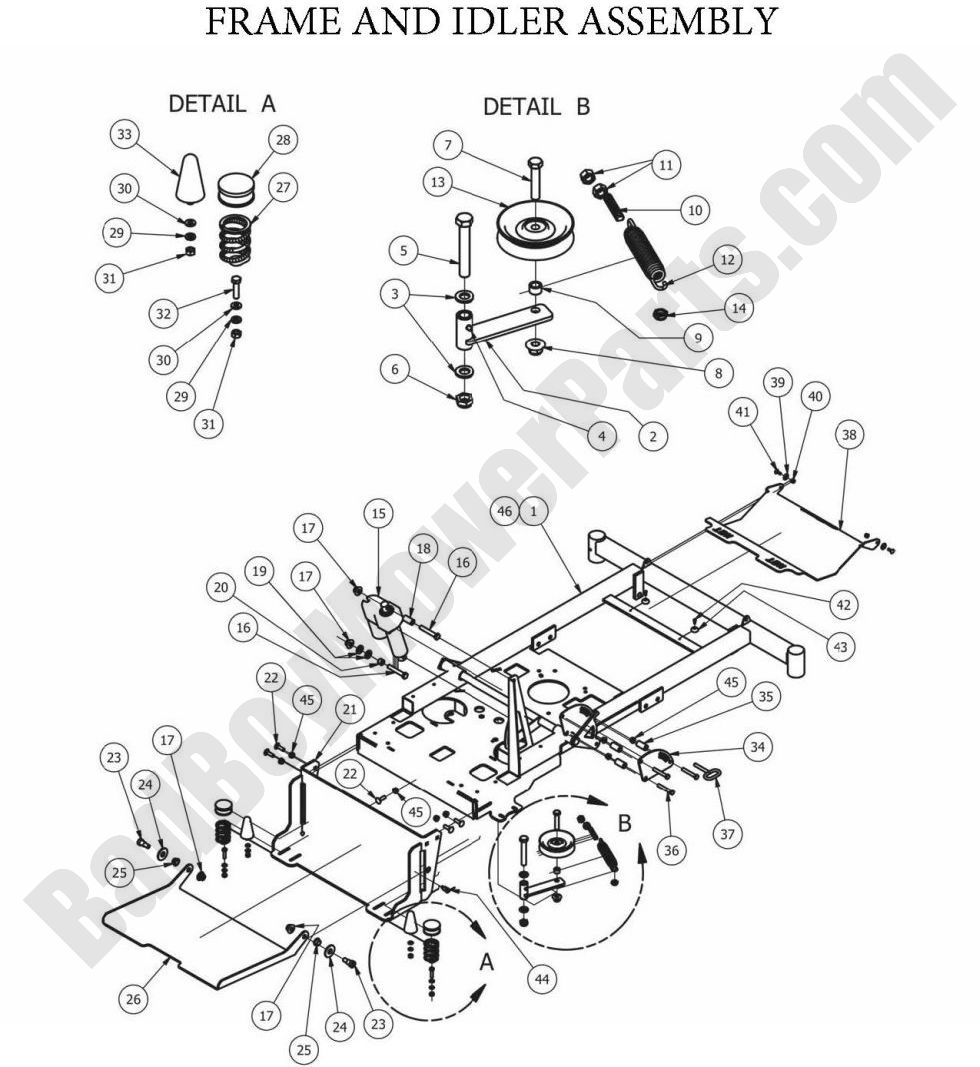

The Bad Boy Mower parts diagram for the 2013 Stand-On Frame & Idler Assembly is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2013 Stand-On models. Find all of your Bad Boy mowers 2013 Stand-On parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2013 Stand-On Frame & Idler Assembly. If you are not able to find the Bad Boy parts for your 2013 Stand-On please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2013 Stand-On Frame & Idler Assembly
  Position Number SKU Product Title Price
1 070-5200-00 070-5200-00 - 2012-2014 Stand-On Frame 54" Decks
$1389.93
2 039-5949-00 039-5949-00 - Stand On Pump Idler Bracket
$37.47
3 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
4 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
5 018-5311-00 018-5311-00 - 5/8-11 X 4 GR 5 Hex Bolts Zinc
$4.06
6 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknu t Zinc
$2.99
7 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 GR 5 Bolt Zinc
$2.99
8 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
9 025-7036-00 025-7036-00 - 1/2 Set Collar w/set collar
$4.60
10 018-2004-00 018-2004-00 - All Thread-Pump Idler Tensione
$12.94
11 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
12 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
13 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
14 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknu t Zinc Orange Nylon
$2.99
15 035-7033-00 035-7033-00 - Actuator
$437.36
16 018-7016-00 018-7016-00 - 1/2-13 X 3 GR 5 Hex Bolts Zinc
$2.99
18 025-5337-00 025-5337-00 -.502x.750x1.125 Length Spacer
$2.99
19 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
21 201-1100-00 201-1100-00 - Stand Frame Support Stand On Model
$53.49
22 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
23 018-3001-00 018-3001-00 - 5/8 x 5/8 Shoulder Bolt
$15.61
24 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
25 032-5052-00 032-5052-00 - Bronze Bushing - SF-2024-8 Front Suspension Fork
$4.81
26 026-5040-00 026-5040-00 - Stand Plate for Stand On
$26.74
27 034-8045-00 034-8045-00 - Seat Spring
$20.49
28 014-8047-00 014-8047-00 - Rubber Cap Cover
$8.93
29 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
30 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
31 013-8043-00 013-8043-00 - 5/16-18 Hex Nuts Zinc
$2.99
32 018-2006-00 018-2006-00 - 5/16-18 X 1-1/4 GR 5 Hex Bolt
$2.99
33 034-1000-00 034-1000-00 - Spring Cushion (See Models Used On For Detail)
$28.39
34 026-5020-00 026-5020-00 - Ht Indicator Plate Stand On Bolt on
$10.99
35 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500 Leng th Spacer Zinc
$3.62
36 018-2071-00 018-2071-00 - 3/8 x 2 1/2 Hex Tap Bolt - Ful l Thread - ACS
$2.99
37 040-4075-00 040-4075-00 - Pin and Lanyard for Stand-On
$12.48
39 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
40 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
41 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
42 030-3050-00 030-3050-00 - 10 X 1/2 Pan Phil a T/S Zinc
$2.99
43 029-4010-00 029-4010-00 - Button Bumper
$2.99
44 040-4060-00 040-4060-00 - 48" Stand On Floorboard Pin (obsolete)
use part #040-5000-00
$21.39
45 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
46 070-5210-00 070-5210-00 - 2012-2014 Stand-On Frame 48" Decks
$1390.99
