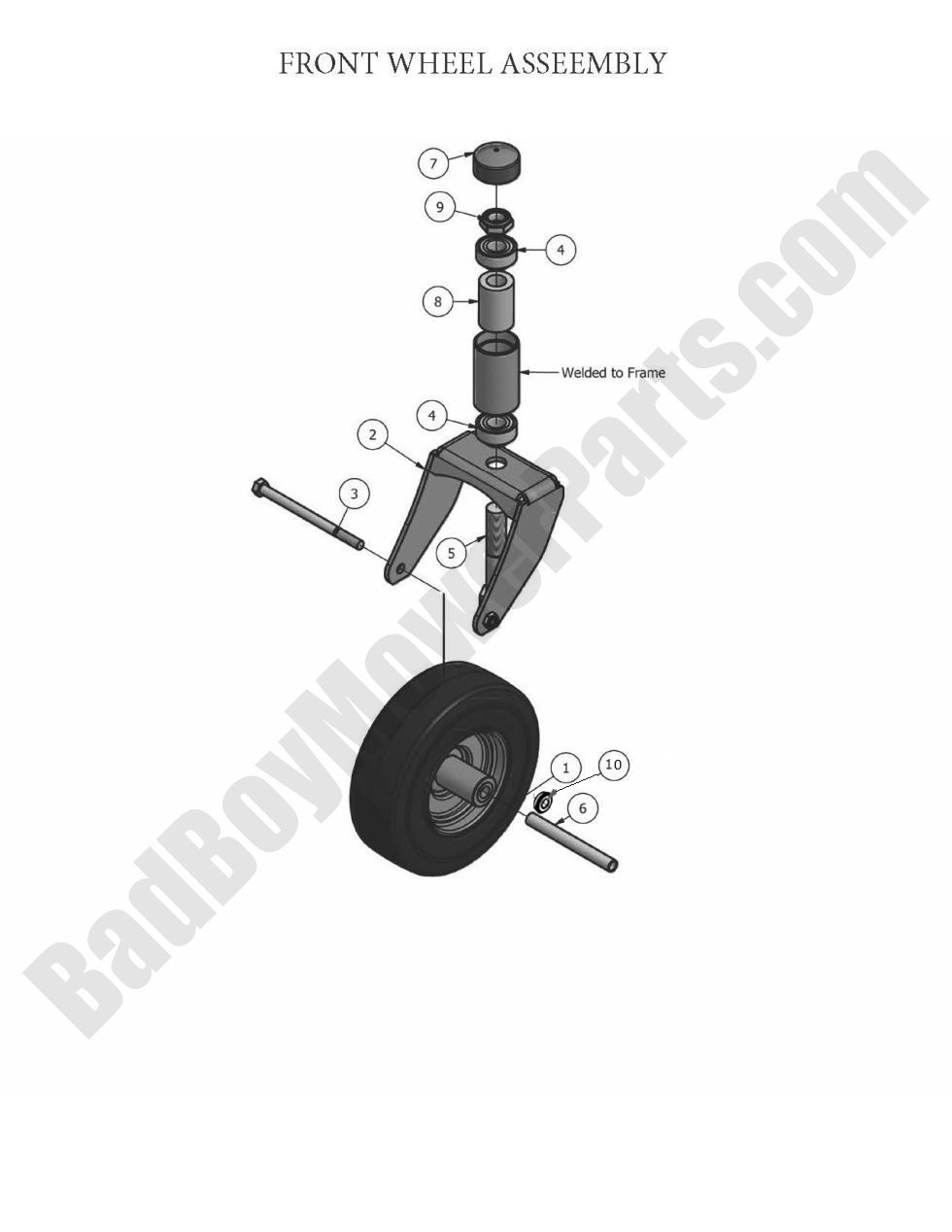

The Bad Boy Mower parts diagram for the 2010 MZ Front Wheel Assembly is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2010 MZ models. Find all of your Bad Boy mowers 2010 MZ parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2010 MZ Front Wheel Assembly. If you are not able to find the Bad Boy parts for your 2010 MZ please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.
Position Number | SKU | Product Title | Price | ||
---|---|---|---|---|---|
1 | 022-8051-00 | 022-8051-00 - 11 x 4.00 - 5 Front Tire and Wheel Assembly, 2010 MZ and 2019-2021 42" MZ |
$76.60
|
||
2 | 023-1000-00 | 023-1000-00 - 2010-2016 MZ Front Fork |
$113.57
|
||
3 | 018-0004-00 | 018-0004-00 - 1/2-13 X 7 Hex Bolt - Grade 5 |
$5.49
|
||
4 | 010-2000-00 | 010-2000-00 - Front Fork Caster Bearing (See Models Used On For Details) |
$16.68
|
||
5 | 018-0005-00 | 018-0005-00 - 1-14 X 5 BOLT GR 8 ZC YELLOW |
$6.48
|
||
6 | 025-0008-00 | 025-0008-00 - Front Wheel Spanner - MZ |
$15.60
|
||
7 | 014-2050-00 | 014-2050-00 - Rubber Caster Bearing Cover (See Models Used On For Details) |
$3.73
|
||
8 | 025-0005-00 | 025-0005-00 - MZ Caster Bearing Spacer |
$12.64
|
||
9 | 013-9004-00 | 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine |
$3.62
|
