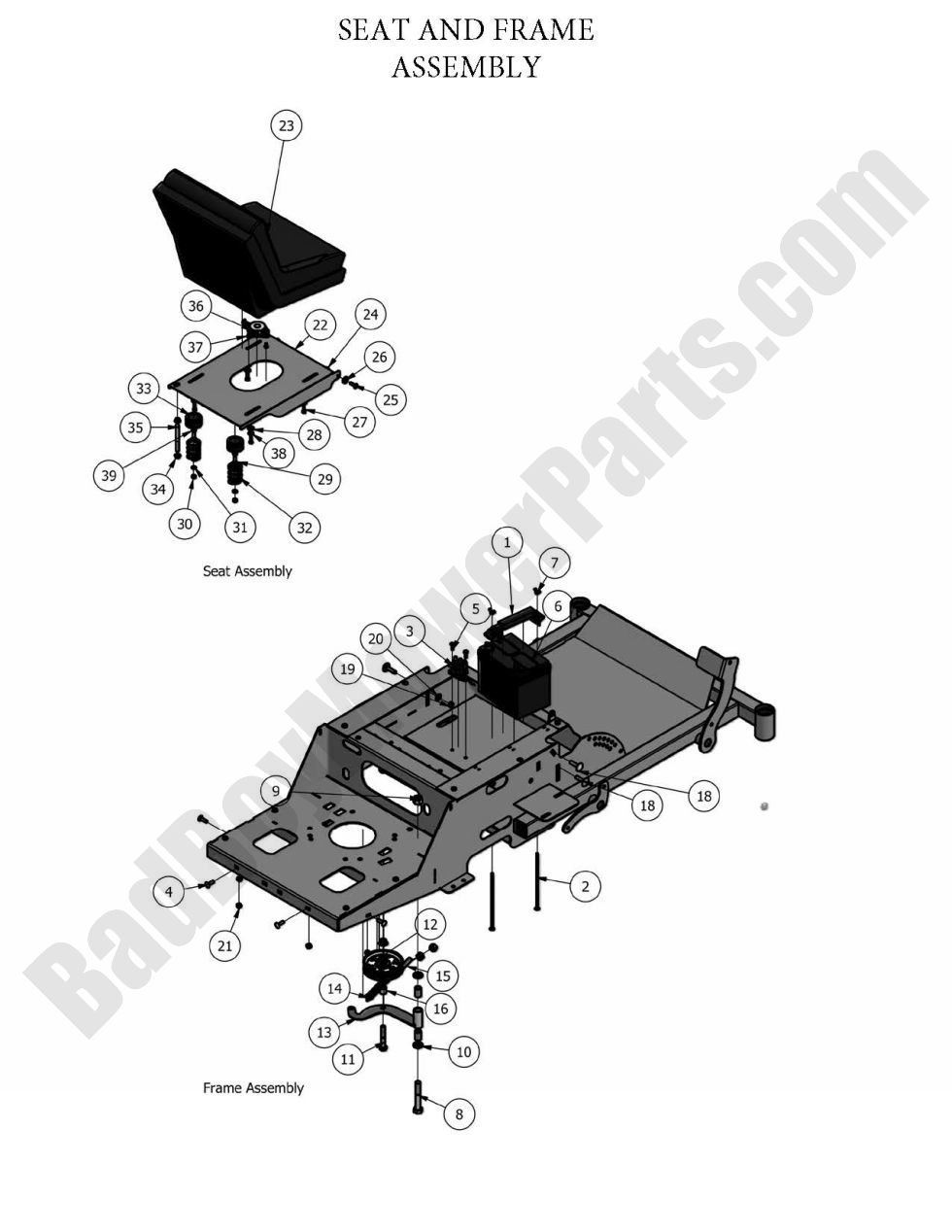

2010 MZ Seat Assembly

Seat Assembly

The Bad Boy Mower parts diagram for the 2010 MZ Seat Assembly is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2010 MZ models. Find all of your Bad Boy mowers 2010 MZ parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2010 MZ Seat Assembly. If you are not able to find the Bad Boy parts for your 2010 MZ please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2010 MZ Seat Assembly
  Position Number SKU Product Title Price
1 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
2 018-8050-00 018-8050-00 - 1/4-20 X 8 Carriage Bolts Zinc Bolt for Battery Hold Down
$2.99
3 108-5349-00 108-5349-00 - Solenoid (See Models Used On For Detail)
$29.41
4 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
5 018-8052-00 018-8052-00 - 1/4-20 X 3/4 GR 5 Hex Bolts
$2.99
7 013-8051-00 013-8051-00 - 1/4-20 Wing Nuts Zinc
$2.99
8 018-5311-00 018-5311-00 - 5/8-11 X 4 GR 5 Hex Bolts Zinc
$4.06
9 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
10 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
11 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 GR 5 Bolt Zinc
$2.99
12 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
13 039-7000-00 039-7000-00 - MZ Pump Idler Arm Bracket
$38.32
14 034-9050-00 034-9050-00 - Idler/Deck Spring - Big Diameter
$17.11
15 018-2004-00 018-2004-00 - All Thread-Pump Idler Tensione
$12.94
16 025-5203-00 025-5203-00 - Spacer 3/4ODx1/2IDx0.75 Susp f ork
$3.29
18 018-4706-00 018-4706-00 - 3/8 x 1 1/2 Carriage Bolt
$2.99
19 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
20 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
21 013-8047-00 013-8047-00 - 5/16-18 Nylon Insert Locknut Z inc Orange Nylon
$2.99
22 026-2010-00 026-2010-00 - MZ Seat Plate
$99.32
23 071-8095-00 071-8095-00 - MZ Seat-no Arms/Slide OBSOLETE use 071-1000-00 (obsolete)
use part #071-1000-00
$460.99
24 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
26 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
27 018-2007-00 018-2007-00 - 5/16-18 X 1 GR 5 Hex Bolt Zinc
$2.99
28 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
31 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
32 034-8045-00 034-8045-00 - Seat Spring
$20.49
33 014-8047-00 014-8047-00 - Rubber Cap Cover
$8.93
34 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
35 044-4000-00 044-4000-00 - Pin (See Models Used On)
$7.25
36 071-8061-00 071-8061-00 - Seat Switch (See Models Used On For Detail)
$19.14
37 030-7041-00 030-7041-00 - 1/4-20x1/2 HWH Bolt Slot Type
$2.99
38 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
39 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 GR 5 Hex Bolt
$2.99
