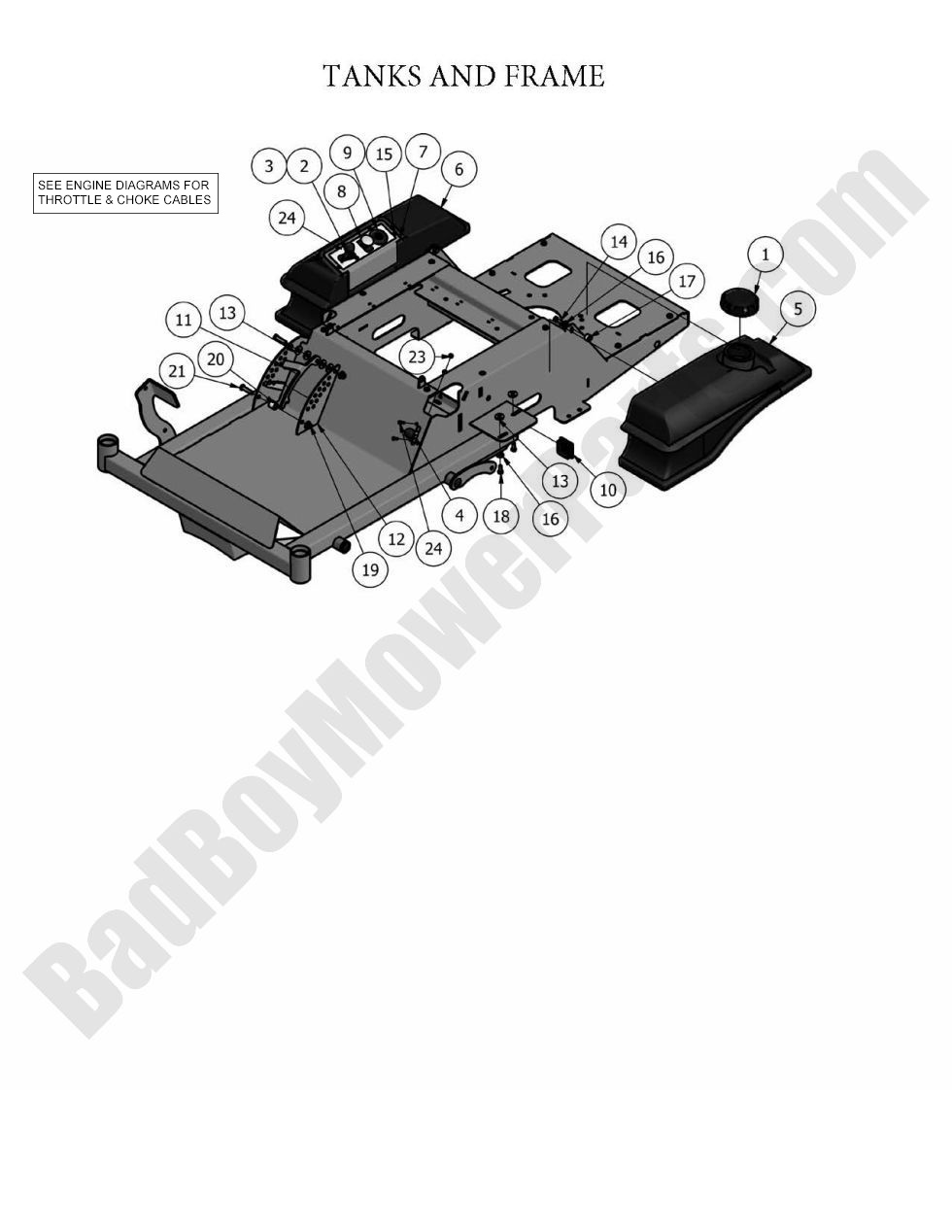

2010 MZ Fuel Tanks & Frame

Fuel Tanks & Frame

The Bad Boy Mower parts diagram for the 2010 MZ Fuel Tanks & Frame is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2010 MZ models. Find all of your Bad Boy mowers 2010 MZ parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2010 MZ Fuel Tanks & Frame. If you are not able to find the Bad Boy parts for your 2010 MZ please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2010 MZ Fuel Tanks & Frame
  Position Number SKU Product Title Price
1A 088-3500-00 088-3500-00 - Mount Assist Handle
$58.84
1 066-8076-00 066-8076-00 - Non-Tethered Fuel Kelch Cap - 3.5 Neck
$32.05
2 055-3000-00 055-3000-00 - Throttle for MZ - 47"
$26.74
3 055-3021-00 055-3021-00 - Throttle - 21hp MZ-25"
$48.14
4 064-8057-00 064-8057-00 - Brake Cable for MZ (See Models Used On For Details)
$49.96
5 067-2000-50 067-2000-50 - 2010-2016 MZ/ 3 Gallon Fuel Tank
$305.99
6 067-2001-00 067-2001-00 - Fender Console
$224.99
7 079-0050-00 079-0050-00 - 2010-2016 MZ Control Panel
$28.39
8 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
9 077-8076-00 077-8076-00 - Ignition Switch (key not included)
$21.39
10 014-9000-00 014-9000-00 - Frame Plug 2x2
$2.99
11 031-1050-00 031-1050-00 - 2010-2016 MZ, 2013-2016 MZ Magnum Deck Level Lock Lever
$31.23
12 026-2020-00 026-2020-00 - MZ Height Indicator Plate
$14.11
13 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
14 018-2007-00 018-2007-00 - 5/16-18 X 1 GR 5 Hex Bolt Zinc
$2.99
15 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99
16 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
17 025-2025-00 025-2025-00 - MZ Tank Spacer
$2.99
18 018-8063-00 018-8063-00 - 5/16-18 X 3/4 GR 5 Hex Bolts Z
$2.99
19 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
20 025-5203-00 025-5203-00 - Spacer 3/4ODx1/2IDx0.75 Susp f ork
$3.29
21 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
23 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zin c Orange Nylon
$2.99
24 018-8057-00 018-8057-00 - 10-24 X 3/4 BS C/S 18-8 SS
$2.99
