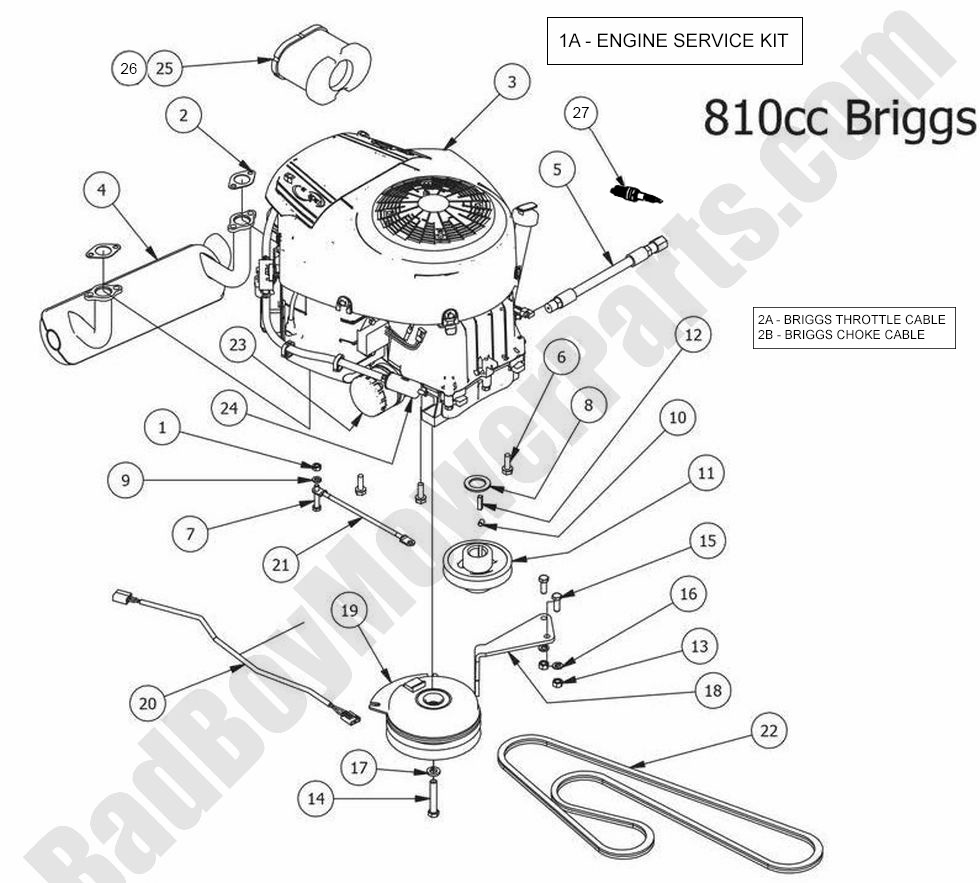

2014 Outlaw & Outlaw Extreme Engine - Briggs 810cc

Engine - Briggs 810cc

BadBoyMowerParts.com has the parts diagrams for the 2014 Outlaw models. Find all of your Bad Boy mowers 2014 Outlaw parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2014 Outlaw Briggs Engine 810cc. If you are not able to find the Bad Boy parts for your 2014 Outlaw please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2014 Outlaw & Outlaw Extreme Engine - Briggs 810cc
  Position Number SKU Product Title Price
1A 063-2000-04 063-2000-04 - Briggs 30hp & CXI Engine Service Kit
$92.93
1 013-8043-00 013-8043-00 - 5/16-18 Hex Nuts Zinc
$2.99
2 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
4 015-3031-00 015-3031-00 - Exhaust for 30hp Briggs Engine 2011-2015
$184.56
5 051-5401-00 051-5401-00 - Kohler/Briggs Oil Drain Hose
$31.17
6 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
7 018-8059-00 018-8059-00 - 5/16-18x1-3/4 GR 5 Hex Bolts
$2.99
8 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
9 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
10 030-6029-00 030-6029-00 - 3/8-16x1/2 Socket Set Cup Poin
$2.99
11 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley w/ Extended Shaft (See Models Used On For Details)
$42.58
12 042-6030-00 042-6030-00 - 1/4 x 1 Square Key
$4.81
13 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
14 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 GR 5 Hex Bolt
$2.99
15 018-6049-00 018-6049-00 - 3/8-16 X 1 GR 5 Hex Bolts Zinc
$2.99
16 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
17 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
18 057-5906-00 057-5906-00 - PTO Engager Holder-Clutch Pup/Lightning/Outlaws
$20.67
19 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$299.59
20 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
21 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
22 041-5048-00 041-5048-00 - Pump Belt (See Models Used On For Details)
$60.98
23 063-8018-00 063-8018-00 - Oil Filter
$21.39
24 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
25.0 063-3003-00 063-3003-00 - 30hp & CXI Briggs Air Filter
$32.58
26 063-1000-00 063-1000-00 - Pre-Cleaner for 063-3003-00
$12.83
27 015-8000-00 015-8000-00 - Spark Plug-Kohler Briggs
$10.99
