2014 Outlaw & Outlaw Extreme Outlaw Extreme Gas Tank Assembly

Outlaw Extreme Gas Tank Assembly

BadBoyMowerParts.com has the parts diagrams for the 2014 Outlaw models. Find all of your Bad Boy mowers 2014 Outlaw parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2014 Outlaw Outlaw Extreme Gas Tank Assembly. If you are not able to find the Bad Boy parts for your 2014 Outlaw please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

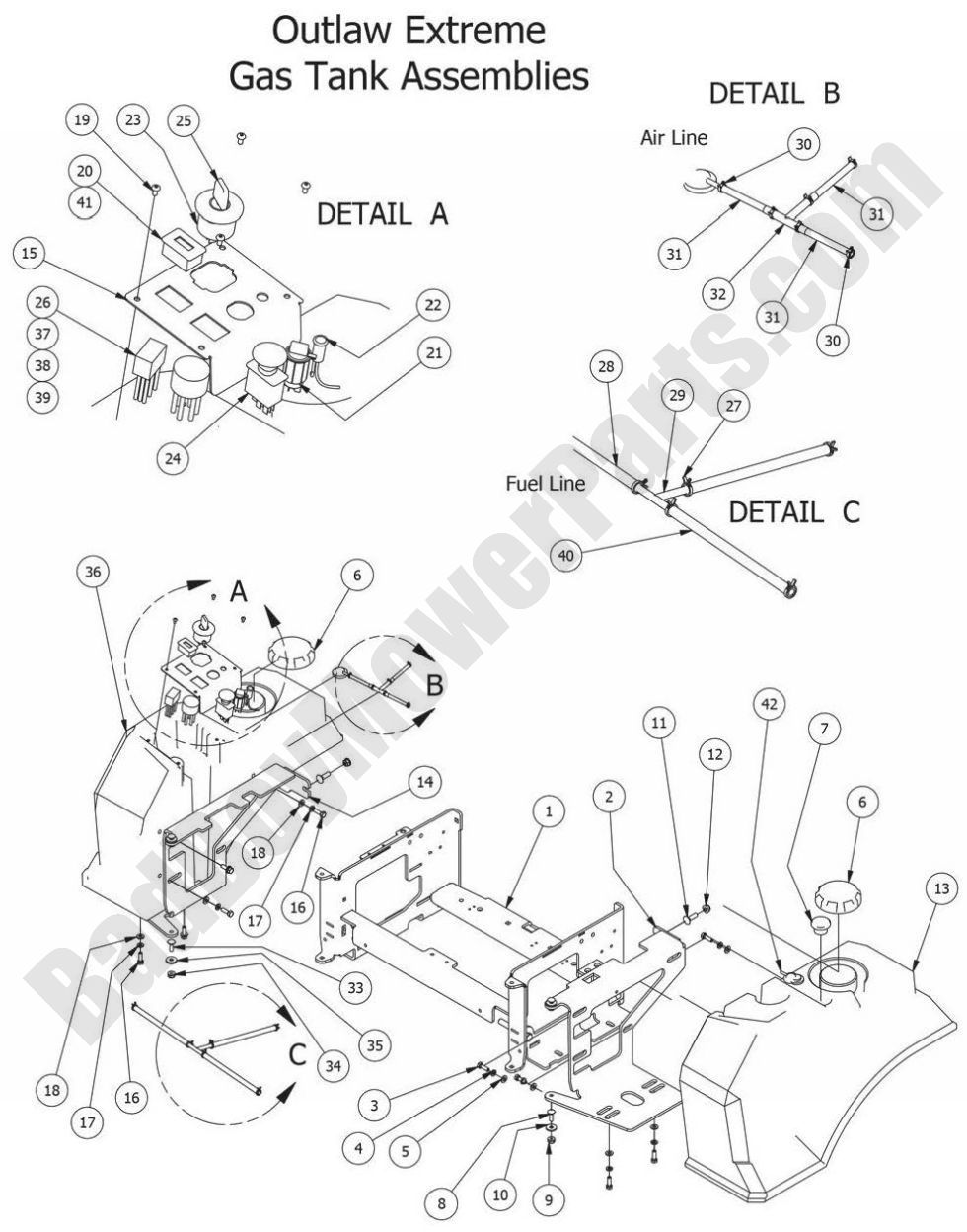

2014 Outlaw & Outlaw Extreme Outlaw Extreme Gas Tank Assembly
  Position Number SKU Product Title Price
1 080-5000-00 080-5000-00 - Outlaw Seat Bracket 2012 Assembly
$427.99
2 031-2031-00 031-2031-00 - 2012-2014 Outlaw Tank Support Left
$78.08
3 018-2007-00 018-2007-00 - 5/16-18 X 1 GR 5 Hex Bolt Zinc
$2.99
4 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
5 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
6 066-8083-00 066-8083-00 - 3.5" Tethered Fuel Cap
$21.23
7 067-4050-00 067-4050-00 - Fuel Gauge-Tanks (See Models Used On For Details)
$46.00
8 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
9 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
10 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
11 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
12 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
13 067-8000-50 067-8000-50 - 2011-2014 Outlaw Extreme/ XP Left Fuel Tank
$383.99
14 031-2030-00 031-2030-00 - 2012-2014 Outlaw Tank Support Right
$78.08
15 079-3300-00 079-3300-00 - 2010-2014 Outlaw/XP Instrument Panel
$23.78
19 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99
20 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
21 077-2075-00 077-2075-00 - 12-Volt Auxiliary Plug
$21.39
22 089-1000-00 089-1000-00 - Oil Light
$12.63
23 077-8076-00 077-8076-00 - Ignition Switch (key not included)
$21.39
24 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
25 042-9000-00 042-9000-00 - Ignition Key
$4.06
26 086-0032-00 086-0032-00 - Wiring Harness-32hp Lightning/ 36hp Outlaw
$353.53
27 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
28 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose PRICED/FOOT
$6.41
29 073-8068-00 073-8068-00 - Fuel Line T
$9.70
30 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 Vinyl Hose (See Models Used On For Detail)
$2.99
31 051-8072-00 051-8072-00 - 1/4" Vinyl Tubing - Black (Priced Per Foot)
$2.99
37 086-0045-00 086-0045-00 - Wiring Harness - 31hp Kawasaki
$534.99
38 086-2008-00 086-2008-00 - Harness-30 Kohler
$353.53
39 086-1201-00 086-1201-00 - Relay Terminal (See Models Used On For Details)
$24.97
40 051-7070-00 051-7070-00 - Fuel Line Assy - 31 Outlaw
$53.49
41 083-4050-00 083-4050-00 - Tachometer For Briggs EFI/Kohler EFI/Yamaha EFI Units
$80.24
42 067-6052-00 067-6052-00 - Rollover Valve-White (obsolete)
use part #067-6070-00
$24.60
