2014 Outlaw & Outlaw Extreme Gas Tank Assembly

Gas Tank Assembly

BadBoyMowerParts.com has the parts diagrams for the 2014 Outlaw models. Find all of your Bad Boy mowers 2014 Outlaw parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2014 Outlaw Gas Tank Assembly. If you are not able to find the Bad Boy parts for your 2014 Outlaw please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

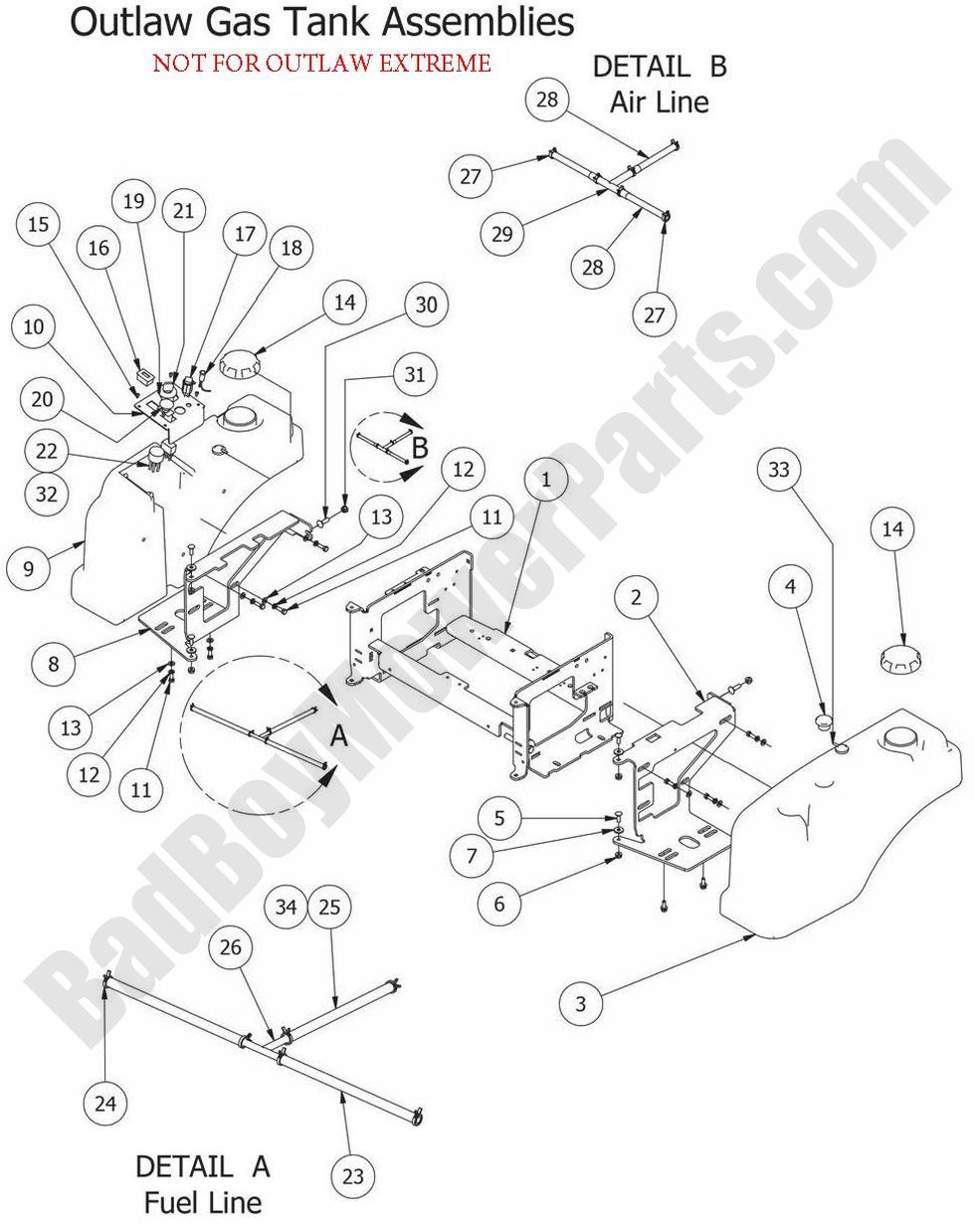

2014 Outlaw & Outlaw Extreme Gas Tank Assembly
  Position Number SKU Product Title Price

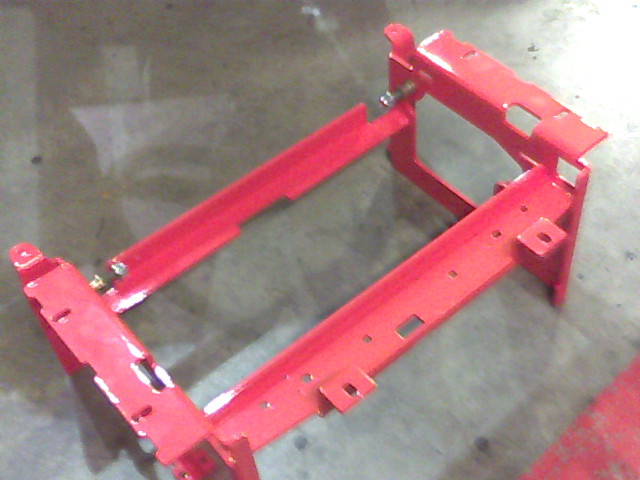

1 080-5000-00 080-5000-00 - Outlaw Seat Bracket 2012 Assembly
$427.99
2 031-2031-00 031-2031-00 - 2012-2014 Outlaw Tank Support Left
$78.08

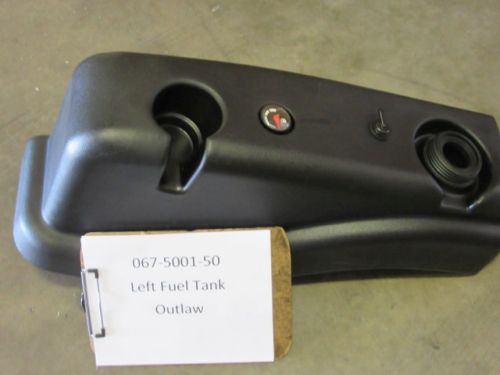

3 067-5001-50 067-5001-50 - Left Fuel Tank (See Models Used On For Details)
$352.99
4 067-4025-00 067-4025-00 - Fuel Gauge and Grommet (See Models Used On For Details)
$54.56
5 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
6 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
7 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
8 031-2030-00 031-2030-00 - 2012-2014 Outlaw Tank Support Right
$78.08
9 067-5000-50 067-5000-50 - Right Fuel Tank (See Models Used On For Details)
$352.99
10 079-3300-00 079-3300-00 - 2010-2014 Outlaw/XP Instrument Panel
$23.78
11 018-2007-00 018-2007-00 - 5/16-18 X 1 GR 5 Hex Bolt Zinc
$2.99
12 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
13 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
14 066-8083-00 066-8083-00 - 3.5" Tethered Fuel Cap
$21.23

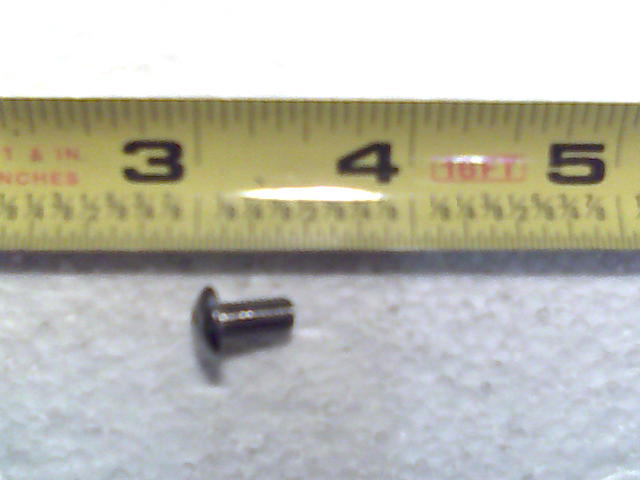

15 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99
16 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
17 077-2075-00 077-2075-00 - 12-Volt Auxiliary Plug
$21.39

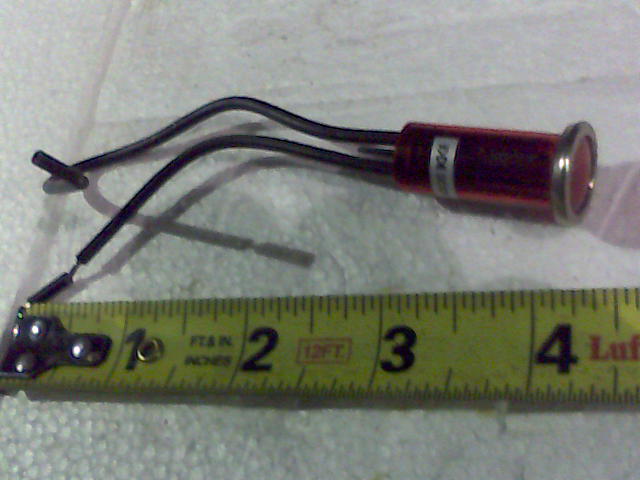

18 089-1000-00 089-1000-00 - Oil Light
$12.63
19 077-8076-00 077-8076-00 - Ignition Switch (key not included)
$21.39
20 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
21 042-9000-00 042-9000-00 - Ignition Key
$4.06

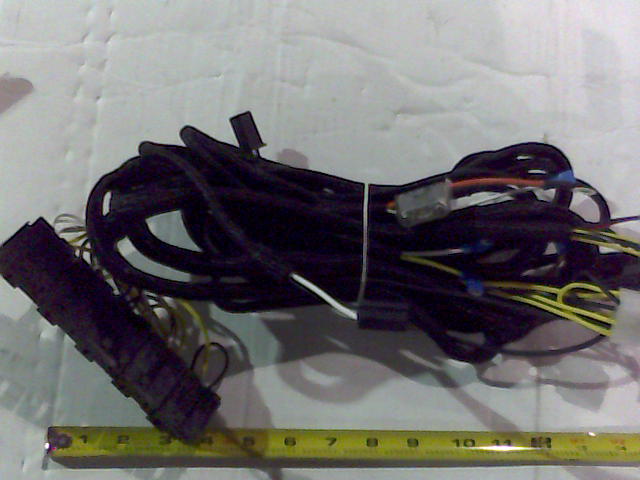

22 086-2050-00 086-2050-00 - Wiring Harness 23hp-27hp Briggs and Stratton, 2011-2018 Outlaw
$388.88

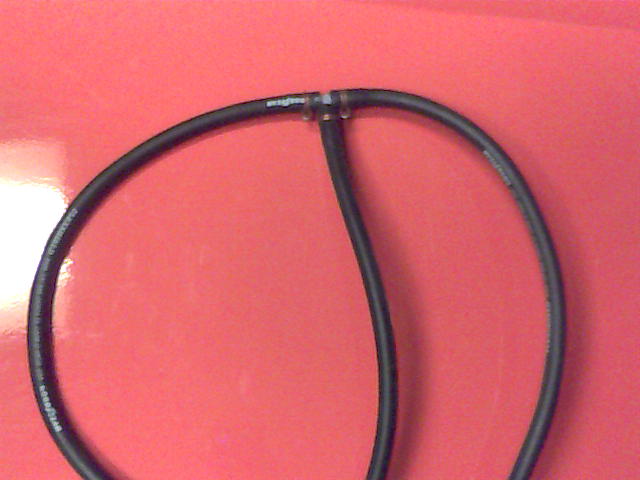

23 051-7070-00 051-7070-00 - Fuel Line Assy - 31 Outlaw
$53.49
24 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99

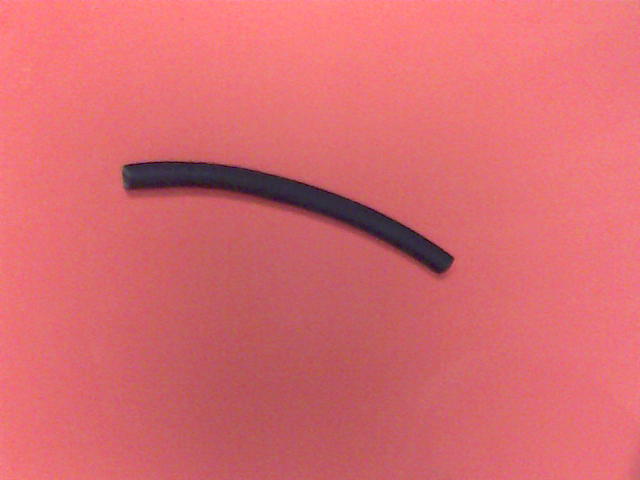

25 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose PRICED/FOOT
$6.41

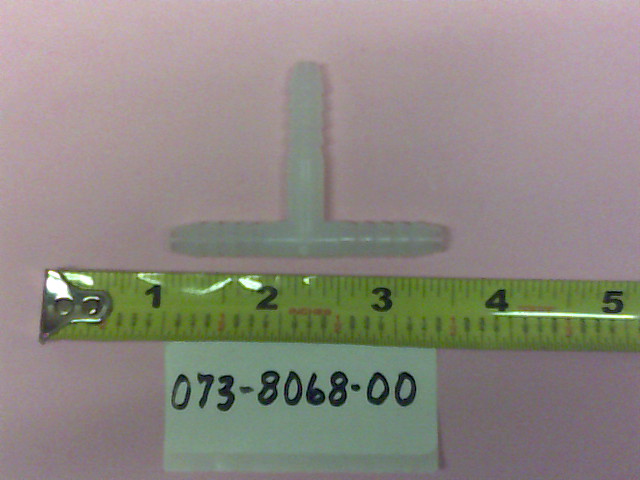

26 073-8068-00 073-8068-00 - Fuel Line T
$9.70

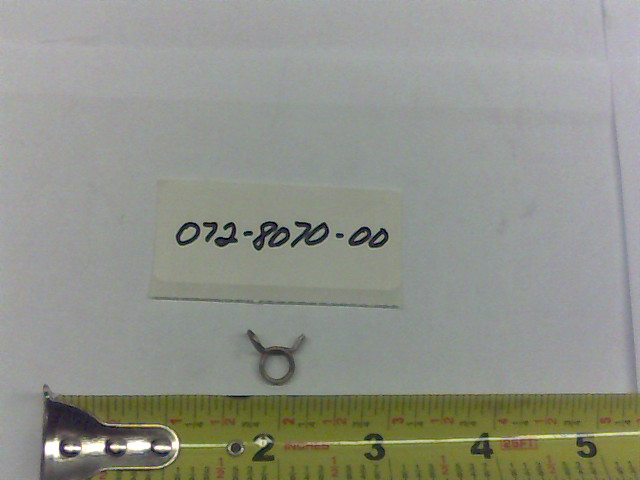

27 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 Vinyl Hose (See Models Used On For Detail)
$2.99

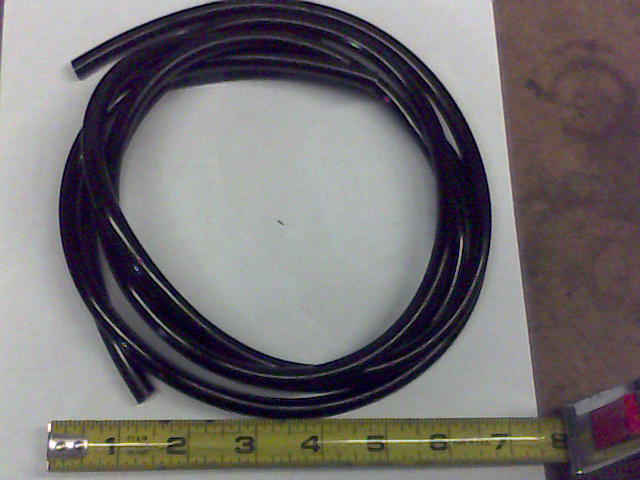

28 051-8073-00 051-8073-00 - 3/16" Vinyl Tubing (Priced Per Foot)
$2.99

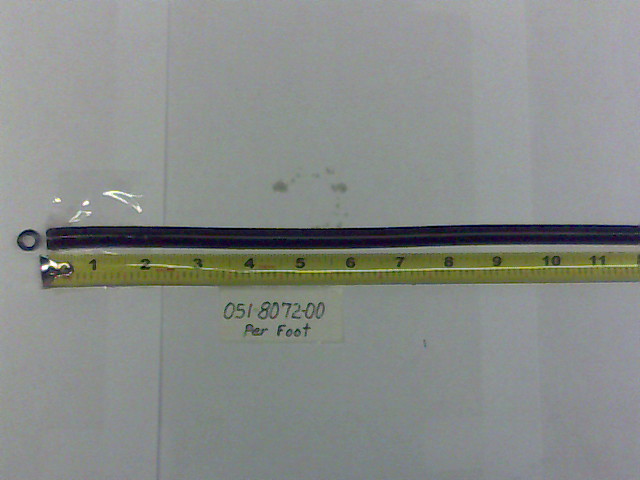

28 051-8072-00 051-8072-00 - 1/4" Vinyl Tubing - Black (Priced Per Foot)
$2.99
30 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
31 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99

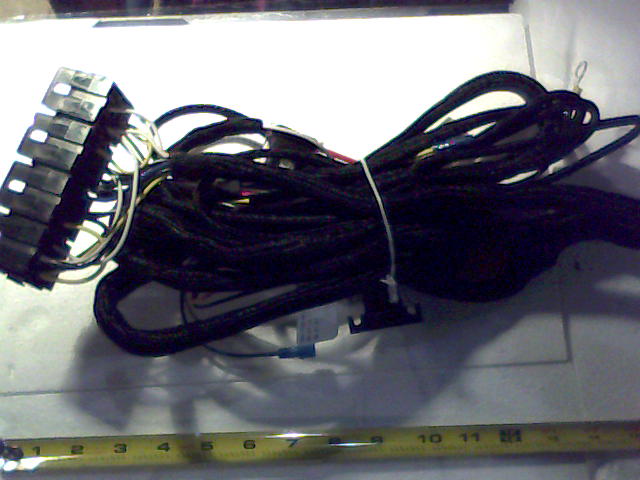

32 086-2008-00 086-2008-00 - Harness-30 Kohler
$353.53

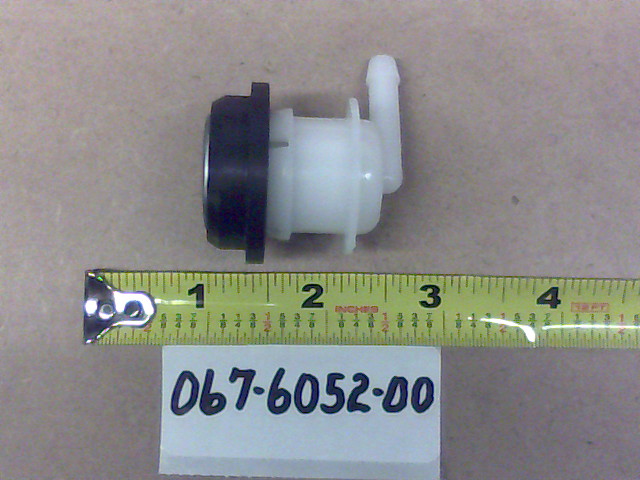

33 067-6052-00 067-6052-00 - Rollover Valve-White (obsolete)
use part #067-6070-00
$24.60

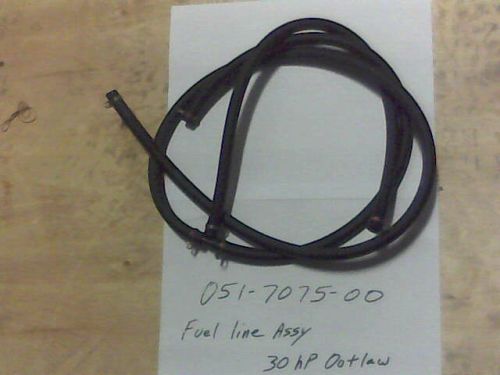

34 051-7075-00 051-7075-00 - Fuel Line Assy - 30hp Outlaw
$42.79
