2014 Outlaw & Outlaw Extreme Kohler Engine 747cc

Kohler Engine 747cc

BadBoyMowerParts.com has the parts diagrams for the 2014 Outlaw models. Find all of your Bad Boy mowers 2014 Outlaw parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2014 Outlaw Kohler Engine 747cc. If you are not able to find the Bad Boy parts for your 2014 Outlaw please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

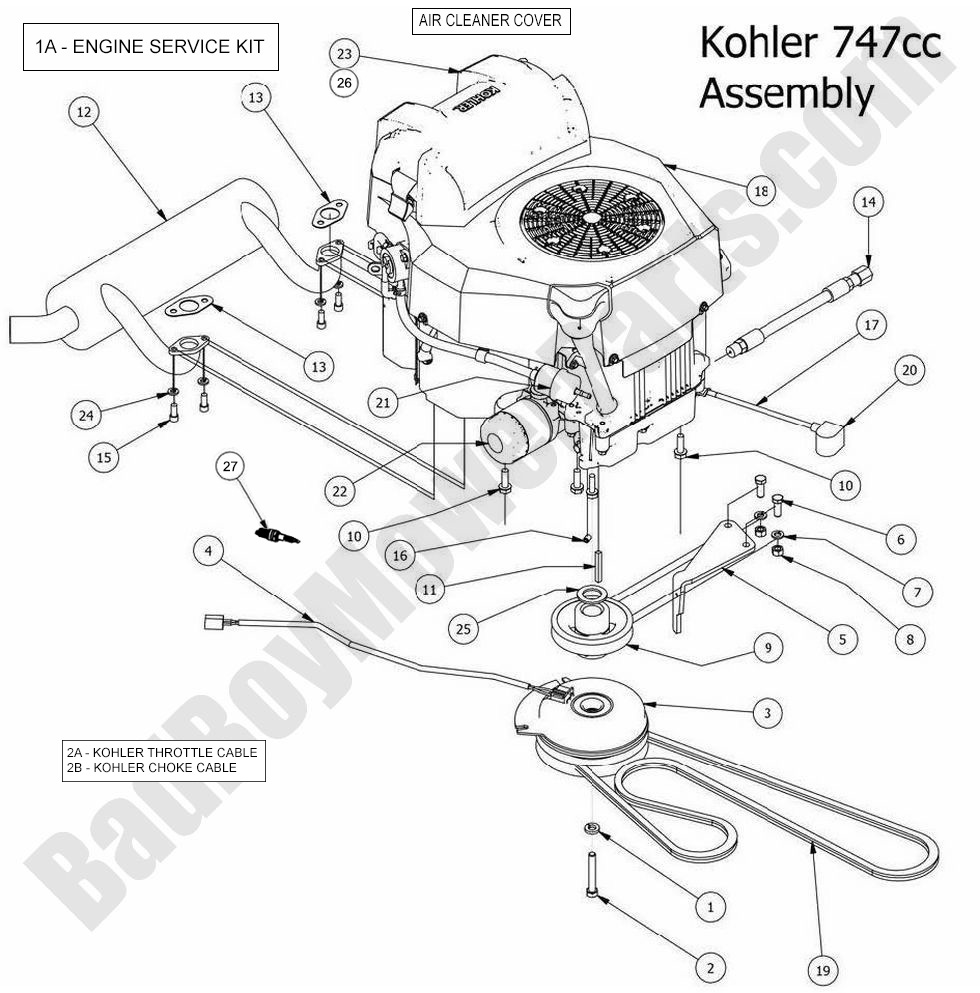

2014 Outlaw & Outlaw Extreme Kohler Engine 747cc
  Position Number SKU Product Title Price
1A 063-2000-07 063-2000-07 - Kohler Confidant Engine Service Kit
$102.57
1 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
2 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 GR 5 Hex Bolt
$2.99
3 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$299.59
4 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
5 057-5906-00 057-5906-00 - PTO Engager Holder-Clutch Pup/Lightning/Outlaws
$20.67
6 018-6049-00 018-6049-00 - 3/8-16 X 1 GR 5 Hex Bolts Zinc
$2.99
7 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
8 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
9 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley w/ Extended Shaft (See Models Used On For Details)
$42.58
10 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
11 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
12 015-0065-00 015-0065-00 - 2014-2018 Kohler Outlaw Muffler 747cc
$184.56
13 015-2751-00 015-2751-00 - Exhaust Gasket for 27,30 hp Kohler Engines
$6.56
14 015-5401-00 015-5401-00 - Kohler/Briggs Oil Drain Valve
$35.48
15 018-8067-00 018-8067-00 - 5/16-18 X 3/4 SOCKET C/S
$2.99
16 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
17 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
18 015-2030-00 015-2030-00 - 25hp Kohler-2014 CZT, Oulaw ZT740-3017
$2994.93
19 041-5048-00 041-5048-00 - Pump Belt (See Models Used On For Details)
$60.98
20 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
21 063-5001-00 063-5001-00 - 25/26 HP Koh Fuel Filter
$19.25
22 063-5000-00 063-5000-00 - 25/26 HP Kohler Oil Filter ZT
$20.32
23 063-5005-00 063-5005-00 - 25hp Kohler CZT/Outlaw Air Filte
$32.09
24 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
25 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
26 063-5006-00 063-5006-00 - 25hp Kohler CZT/Out Precleaner
$9.47
27 015-8000-00 015-8000-00 - Spark Plug-Kohler Briggs
$10.99
