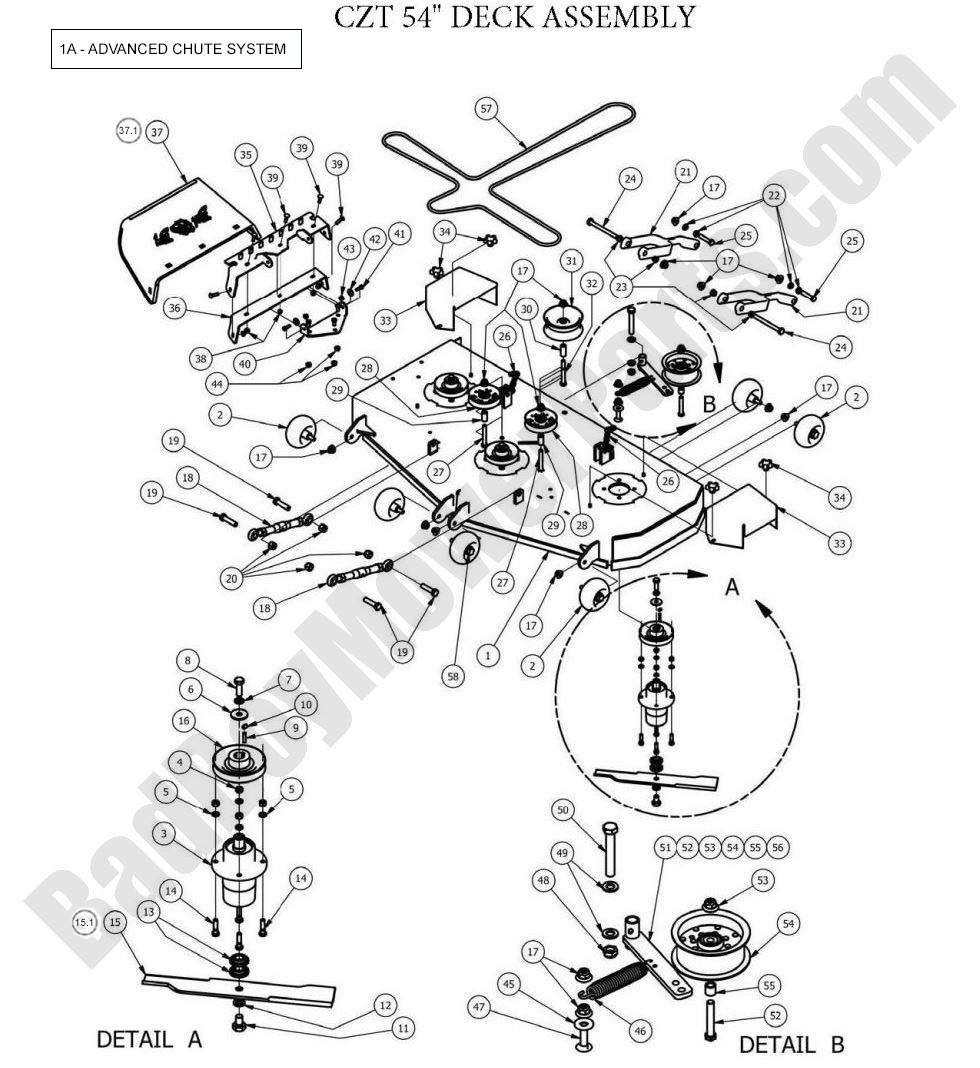

2013 CZT 54" Deck Assembly

54" Deck Assembly

The Bad Boy Mower parts diagram for the 2013 CZT 54" Deck is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2013 CZT models. Find all of your Bad Boy mowers 2013 CZT parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2013 CZT 54" Deck. If you are not able to find the Bad Boy parts for your 2013 CZT please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2013 CZT 54" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2024 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$266.99
1 060-6054-00 060-6054-00 - 2013-2015 CZT, 2014-2016 ZT, 2016-2017 Maverick 54" Deck Shell
$1279.87
2A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
2 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
3 037-6015-00 037-6015-00 - Short Shaft Spindle (obsolete)
use part #037-6015-50
$213.99
4 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
5 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
6 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
7 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
8 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 GR 5 Bolts Zinc, Fine Thread Bolt
$2.99
9 042-6030-00 042-6030-00 - 1/4 x 1 Square Key
$4.81
10 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
11 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
12 019-4807-00 019-4807-00 - 5/8 Lockwasher Zinc
$2.99
13 037-6023-00 037-6023-00 - Spindle Bearing (See Models Used On For Details) (obsolete)
use part #037-6029-00
$42.58
14 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
15.1 038-0003-00 038-0003-00 - 54" & 2024 Raider 36" Deck Gator Mulching Blade
$22.99
15 038-0001-00 038-0001-00 - 54" & 2024 Raider 36" High Lift Fusion Blade
$22.99
16 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
17 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
18 048-6056-00 048-6056-00 - Toplink/Turnbuckle-Deck Adjust (See Models Used On For Details)
$53.49
19 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 GR 5 Hex Bolts
$2.99
20 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
21 031-6010-00 031-6010-00 - Deck Hanger (One Piece) (obsolete)
use part #031-6020-00
$141.97
22 032-5057-00 032-5057-00 - Flange for Lower Deck Arm SF-1622-5
$5.82
23 032-5056-00 032-5056-00 - Flange Bushing-Deck Arms EF081108 - Frame Mounted
$5.82
24 018-1090-00 018-1090-00 - 1/2-13x5 1/2 Hex Bolt Grade 5
$3.29
25 018-6037-00 018-6037-00 - 1/2-13 X 2-1/4 GR 5 Hex Bolts
$2.99
26 047-6050-00 047-6050-00 - CZT/ZT Deck Hanger Chain Assembly (See Models Used On For Details)
$8.74
27 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
28 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
29 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500 Leng th Spacer Zinc
$3.62
30 025-5339-00 025-5339-00 -.502 ID X 1.00 OD X 1.750 Leng th Spacer Zinc
$5.36
31 033-5001-00 033-5001-00 - 5 3/4" Flat Idler Double Width Pulley
$56.77
32 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt Yello
$4.39
33 014-6010-00 014-6010-00 - Plastic Pulley Cover (See Models Used On For Details) (obsolete)
use part #014-4000-00
$28.39
34 045-6043-00 045-6043-00 - 5/16 Black Plastic Knob Spindle Cover
$4.39
35 039-4870-00 039-4870-00 - 48/52 Discharge Top Bracket Ru bber Chute Assembly
$42.52
36 039-4871-00 039-4871-00 - 48/52 Discharge Lower Bracket Rubber Chute
$32.65
37.1 210-6005-98 210-6005-98 - Chute Assembly (See Models Used On For Detail)
$160.49
37 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
38 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
39 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
40 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
41 018-2007-00 018-2007-00 - 5/16-18 X 1 GR 5 Hex Bolt Zinc
$2.99
42 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
44 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
45 019-2040-00 019-2040-00 - 1/2 Flat Washer
$2.99
46 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
47 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
48 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknu t Zinc
$2.99
49 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
50 018-5311-00 018-5311-00 - 5/8-11 X 4 GR 5 Hex Bolts Zinc
$4.06
51 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
52 018-7016-00 018-7016-00 - 1/2-13 X 3 GR 5 Hex Bolts Zinc
$2.99
55 025-5203-00 025-5203-00 - Spacer 3/4ODx1/2IDx0.75 Susp f ork
$3.29
56 039-6945-98 039-6945-98 - Deck Idler Assy (See Models Used On For Details)
$78.08
57 041-1560-00 041-1560-00 - Deck Belt (See Models Used On For Details)
$88.80
58 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
