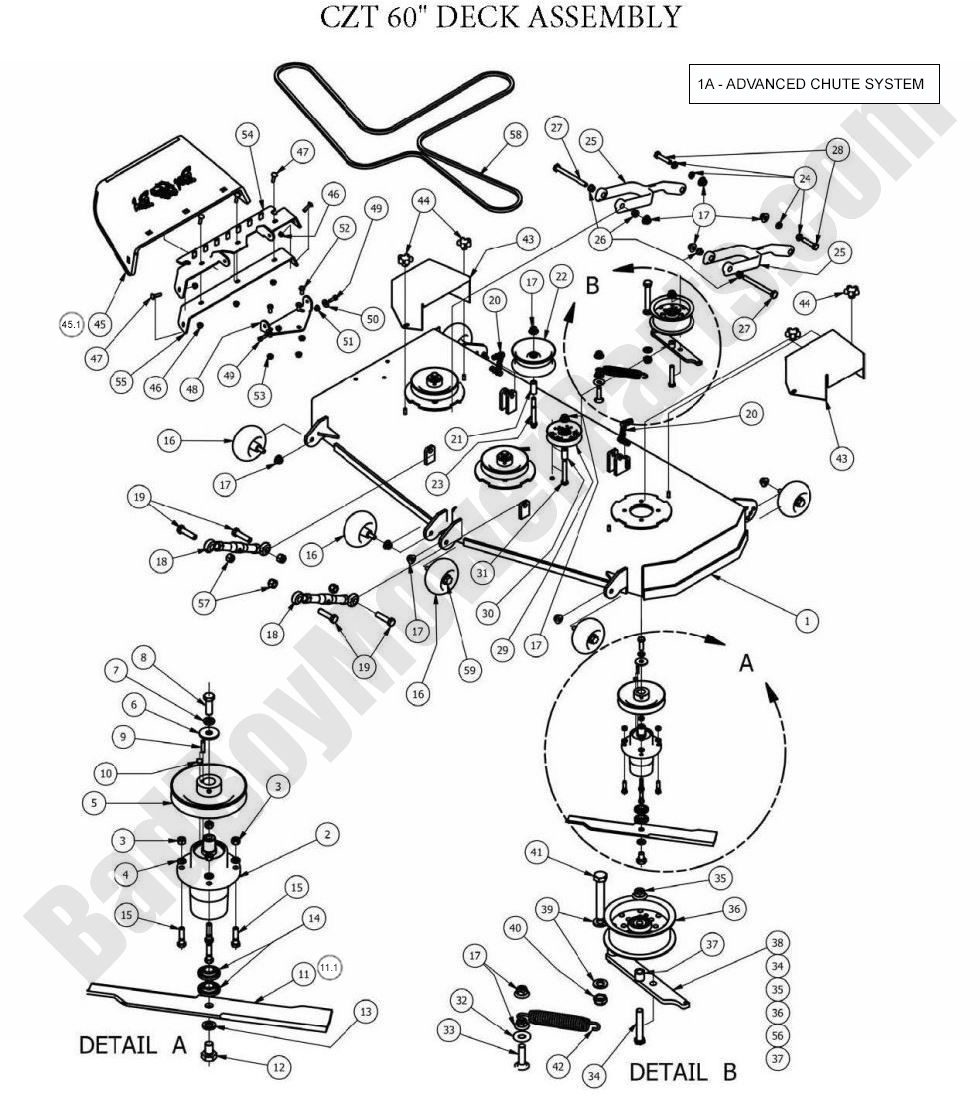

2013 CZT 60" Deck Assembly

60" Deck Assembly

The Bad Boy Mower parts diagram for the 2013 CZT 60" Deck is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2013 CZT models. Find all of your Bad Boy mowers 2013 CZT parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2013 CZT 60" Deck. If you are not able to find the Bad Boy parts for your 2013 CZT please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2013 CZT 60" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2024 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$266.99
1 060-6060-00 060-6060-00 - 2013-2015 CZT, 2014-2016 ZT, 2016-2017 Mav 60" Deck Shell
$1421.85
2 037-6015-00 037-6015-00 - Short Shaft Spindle (obsolete)
use part #037-6015-50
$213.99
3 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
4 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
5 033-6004-00 033-6004-00 - 6 1/4 Spindle Deck Pulley 60 & 61 Decks DDB-100 (without set screw)
$35.48
6 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
7 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
8 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 GR 5 Bolts Zinc, Fine Thread Bolt
$2.99
9 042-6030-00 042-6030-00 - 1/4 x 1 Square Key
$4.81
10 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
11.1 038-6003-00 038-6003-00 - 60" Gator Mulching Blade & 2023-2024 Revolt SD 42"
$22.99
11 038-6060-00 038-6060-00 - 60" High Lift Fusion Blade & 2023-2024 Revolt SD 42"
$22.99
12 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
13 019-4807-00 019-4807-00 - 5/8 Lockwasher Zinc
$2.99
14 037-6023-00 037-6023-00 - Spindle Bearing (See Models Used On For Details) (obsolete)
use part #037-6029-00
$42.58
15 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
16A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
16 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
17 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
18 048-6056-00 048-6056-00 - Toplink/Turnbuckle-Deck Adjust (See Models Used On For Details)
$53.49
19 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 GR 5 Hex Bolts
$2.99
20 047-6050-00 047-6050-00 - CZT/ZT Deck Hanger Chain Assembly (See Models Used On For Details)
$8.74
21 025-5339-00 025-5339-00 -.502 ID X 1.00 OD X 1.750 Leng th Spacer Zinc
$5.36
22 033-5001-00 033-5001-00 - 5 3/4" Flat Idler Double Width Pulley
$56.77
23 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt Yello
$4.39
24 032-5057-00 032-5057-00 - Flange for Lower Deck Arm SF-1622-5
$5.82
25 031-6010-00 031-6010-00 - Deck Hanger (One Piece) (obsolete)
use part #031-6020-00
$141.97
26 032-5056-00 032-5056-00 - Flange Bushing-Deck Arms EF081108 - Frame Mounted
$5.82
27 018-1090-00 018-1090-00 - 1/2-13x5 1/2 Hex Bolt Grade 5
$3.29
28 018-6037-00 018-6037-00 - 1/2-13 X 2-1/4 GR 5 Hex Bolts
$2.99
29 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
30 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500 Leng th Spacer Zinc
$3.62
31 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
32 019-2040-00 019-2040-00 - 1/2 Flat Washer
$2.99
33 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
34 018-7016-00 018-7016-00 - 1/2-13 X 3 GR 5 Hex Bolts Zinc
$2.99
37 025-5203-00 025-5203-00 - Spacer 3/4ODx1/2IDx0.75 Susp f ork
$3.29
38 039-6936-00 039-6936-00 - Deck Idler Bracket
$39.74
39 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
40 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknu t Zinc
$2.99
41 018-5311-00 018-5311-00 - 5/8-11 X 4 GR 5 Hex Bolts Zinc
$4.06
42 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
43 014-6010-00 014-6010-00 - Plastic Pulley Cover (See Models Used On For Details) (obsolete)
use part #014-4000-00
$28.39
44 045-6043-00 045-6043-00 - 5/16 Black Plastic Knob Spindle Cover
$4.39
45.1 210-6005-98 210-6005-98 - Chute Assembly (See Models Used On For Detail)
$160.49
45 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
46 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
47 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
48 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
49 018-2007-00 018-2007-00 - 5/16-18 X 1 GR 5 Hex Bolt Zinc
$2.99
50 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
52 018-5250-00 018-5250-00 - 3/8-16 X 3/4 GR 5 Hex Bolts
$2.99
53 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
54 039-4864-00 039-4864-00 - Discharge Chute Upper Hanger Plate (See Models Used On For Detail)
$42.52
55 039-4863-00 039-4863-00 - Discharge Lower Bracket Rubber Chute (See Models Used On For Detail)
$32.65
56 039-6936-98 039-6936-98 - Deck Idler Assembly (See Models Used On For Details)
$64.19
57 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
58 041-1650-00 041-1650-00 - B165 Deck Belt (See Models Used On For More Details, Not For 54" ZT/CZT/Maverick)
$90.94
59 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
