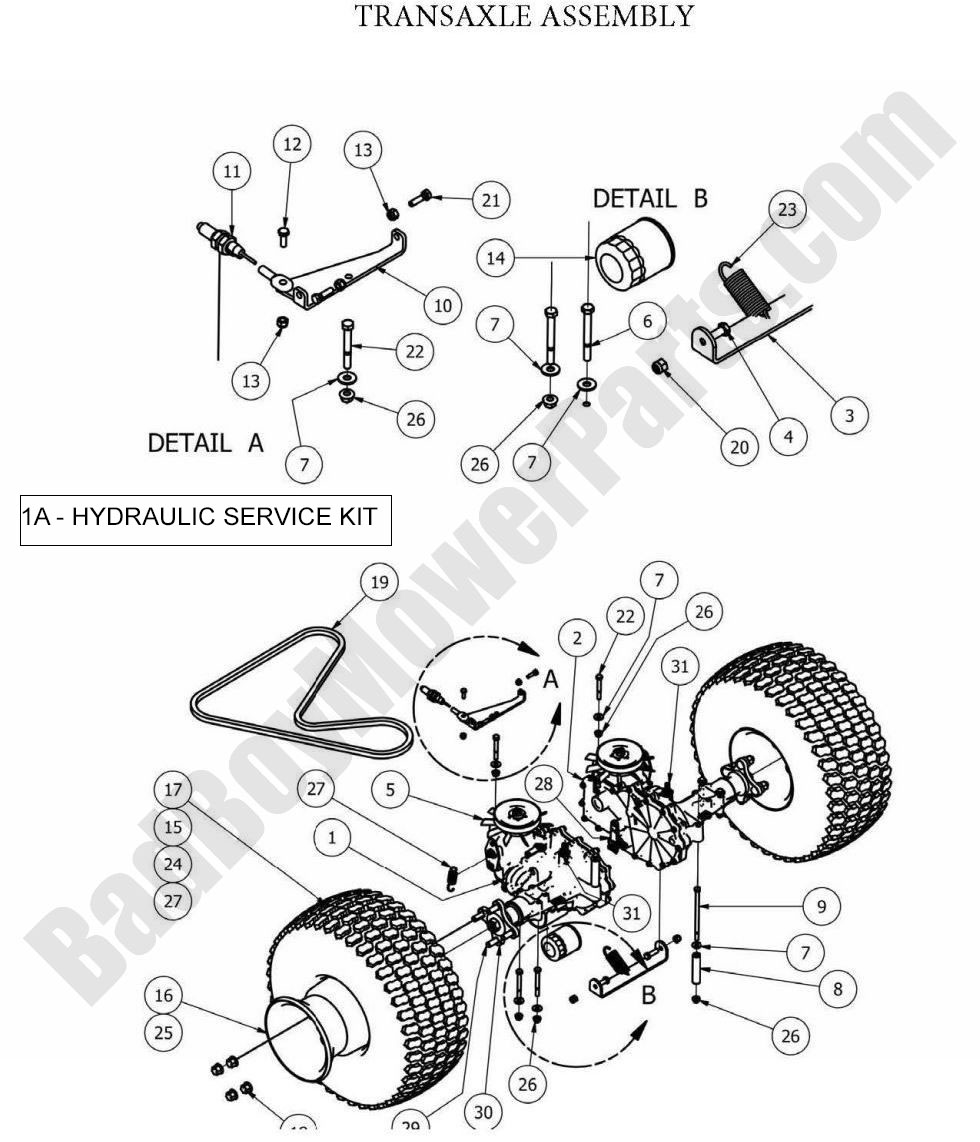

2013 CZT Transaxle

Transaxle

The Bad Boy Mower parts diagram for the 2013 CZT Transaxle is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2013 CZT models. Find all of your Bad Boy mowers 2013 CZT parts here. We are your Bad Boy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2013 CZT Transaxle. If you are not able to find the Bad Boy parts for your 2013 CZT please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2013 CZT Transaxle
  Position Number SKU Product Title Price
1A 085-4051-00 085-4051-00 - 2020 Models and Older - ZT2800 - ZT3100 - ZT3200 & ALL ZT3400 Hydro Service Package With Expansion Tanks
$104.74
1 050-6000-00 050-6000-00 - ZT3400 Transaxle - Left (obsolete)
use part #050-6000-01
$877.39
2 050-6001-00 050-6001-00 - ZT3400 Transaxle - Right (obsolete)
use part #050-6001-01
$877.39
3 028-4801-00 028-4801-00 - Crossover Bar (See Models Used On For Detail)
$28.10
4 018-3000-00 018-3000-00 - 3/8-16 X 2 GR 5 Hex Bolts Zinc
$2.99
5 050-2072-00 050-2072-00 - Fan/Pulley Kit for CZT
$63.96
6 018-4701-00 018-4701-00 - 5/16-18 X 3 GR 5 Hex Bolt Zinc
$2.99
7 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
8 025-5340-00 025-5340-00 -.365 ID X.752 OD X 3.313Lengt h Spacer Zinc
$8.74
9 018-5355-00 018-5355-00 - 5/16-18 X 6 GR 5 Hex Bolt Zinc
$2.99
10 039-0053-00 039-0053-00 - Crossover Brake Bracket
$14.19
11 064-3000-00 064-3000-00 - 44" Brake Cable
$31.22
12 018-8052-00 018-8052-00 - 1/4-20 X 3/4 GR 5 Hex Bolts
$2.99
13 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
14 063-1050-00 063-1050-00 - ZT Hydraulic Filter
$22.71
15 022-5460-00 022-5460-00 - 23 x 10.50 -12 Assembly w/Negative Offset Wheel 54"CZT (One Tire & Rim Assy)
$266.99
16 022-7061-00 022-7061-00 - 12x8.5 Orange Wheel - Solid (One Rim Only)
$195.99
17 022-5351-00 022-5351-00 - 23 x 10.50 - 12 Tire (One Tire Only)
$192.99
18 013-3000-00 013-3000-00 - Acorn Lug Nut
$3.29
19 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
20 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
21 018-4007-00 018-4007-00 - 1/4-20 X 1 GR 5 Hex Bolts Zinc
$2.99
22 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
23 034-9000-00 034-9000-00 - SPRING (See Models Used On For Details)
$15.55
24 022-5352-00 022-5352-00 - 23x10.50-12 Wheel Assembly (One Tire & Rim Assembly)
$267.99
25 022-7062-00 022-7062-00 - 12 Orange Wheel - 48 and 52 Pu p Models
$113.62
26 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
27 034-9080-00 034-9080-00 - Gold Transaxle Spring
$14.89
28 092-8000-00 092-8000-00 - Transaxle Brake Lever
$21.28
29 050-2012-00 050-2012-00 - Transaxle Wheel Studs/ Drum Brake Studs
$5.61
30 050-2077-00 050-2077-00 - 5 Bolt Hub Kit CZT TRANS
$95.20
31 024-1200-00 024-1200-00 - Fitting, 3/8 x 3/8 45 Degree, 4603-6-6 (See Models Used On For Details)
$19.93
