2013 CZT Engine - 30Hp Briggs

Engine - 30Hp Briggs

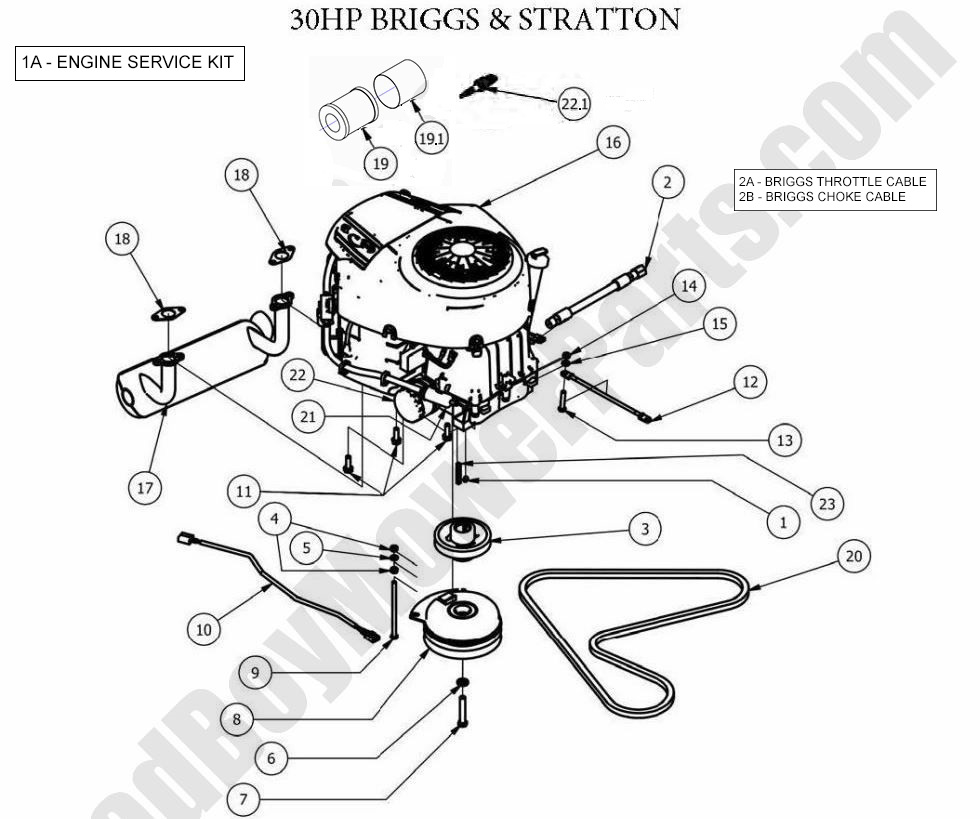

The Bad Boy Mower parts diagram for the 2013 CZT Engine (30Hp Briggs) is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2013 CZT models. Find all of your Bad Boy mowers 2013 CZT parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2013 CZT Engine (30Hp Briggs). If you are not able to find the Bad Boy parts for your 2013 CZT please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2013 CZT Engine - 30Hp Briggs
  Position Number SKU Product Title Price
1A 063-2000-04 063-2000-04 - Briggs 30hp & CXI Engine Service Kit
$92.93
1 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
2 051-5401-00 051-5401-00 - Kohler/Briggs Oil Drain Hose
$31.17
3 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley w/ Extended Shaft (See Models Used On For Details)
$42.58
4 013-8043-00 013-8043-00 - 5/16-18 Hex Nuts Zinc
$2.99
5 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
6 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
7 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 GR 5 Hex Bolt
$2.99
8 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$299.59
9 018-5350-00 018-5350-00 - 5/16-18 X 5-1/2 GR 5 Hex Bolt
$2.99
10 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
11 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
12 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
13 018-8059-00 018-8059-00 - 5/16-18x1-3/4 GR 5 Hex Bolts
$2.99
17 015-0027-00 015-0027-00 - Exhaust Briggs 26/27/30hp (See Models Used On For Detail)
$212.96
18 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
19 063-3003-00 063-3003-00 - 30hp & CXI Briggs Air Filter
$32.58
20 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
21 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
22 063-8018-00 063-8018-00 - Oil Filter
$21.39
23 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
24 015-8000-00 015-8000-00 - Spark Plug-Kohler Briggs
$10.99
25 063-1000-00 063-1000-00 - Pre-Cleaner for 063-3003-00
$12.83
