2013 CZT Engine - Vanguard

Engine - Vanguard

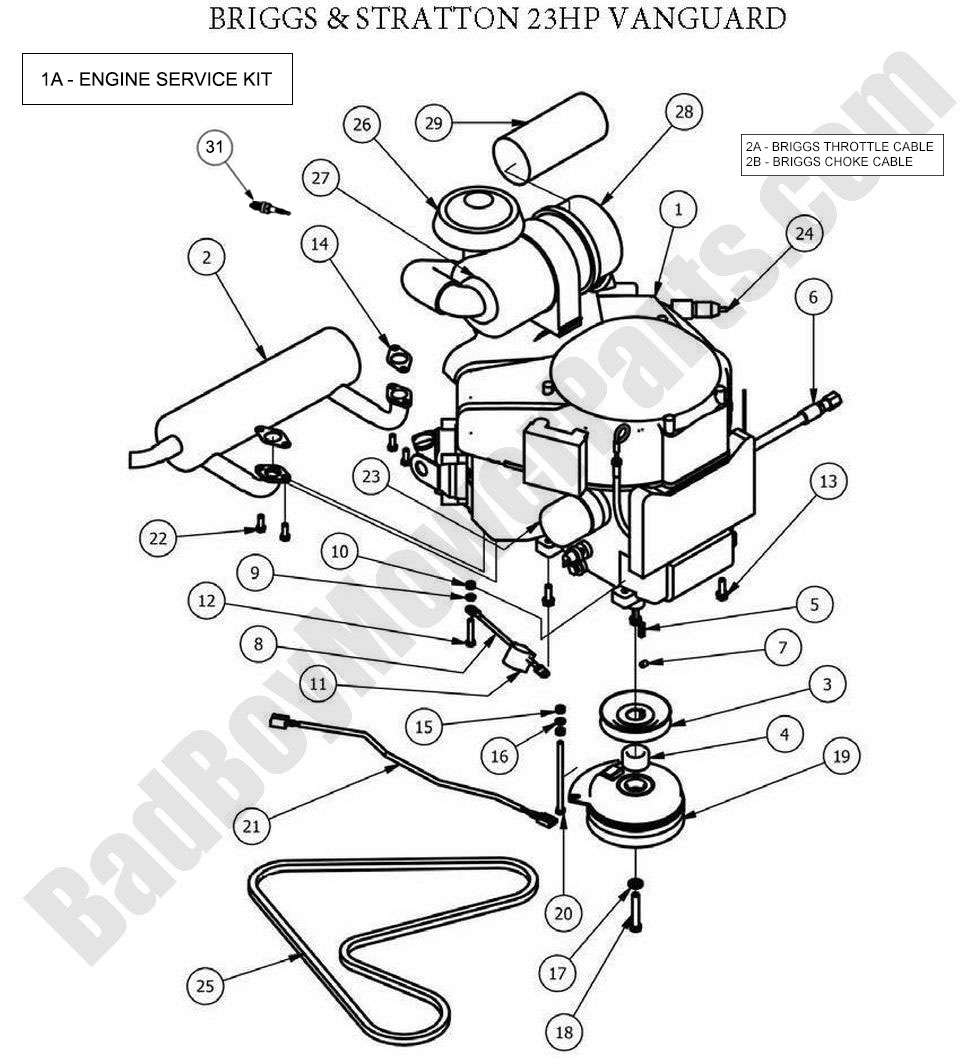

The Bad Boy Mower parts diagram for the 2013 CZT Engine (Vanguard) is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2013 CZT models. Find all of your Bad Boy mowers 2013 CZT parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2013 CZT Engine (Vanguard). If you are not able to find the Bad Boy parts for your 2013 CZT please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2013 CZT Engine - Vanguard
  Position Number SKU Product Title Price
1A 063-2000-03 063-2000-03 - Briggs Vanguard 23hp Service Kit
$189.64
2 015-0033-00 015-0033-00 - Exhaust - 23hp Vanguard Engine
$220.06
3 033-5034-00 033-5034-00 - 4 3/4 Motor Pulley - DB74-601 Comes with set screw only. Key way IS NOT included. (See Models Used On For Details)
$35.48
4 025-5000-00 025-5000-00 - 1.125 ID X 1.750 OD X.625 THK Spacer Zinc
$6.51
5 042-6030-00 042-6030-00 - 1/4 x 1 Square Key
$4.81
6 051-5401-00 051-5401-00 - Kohler/Briggs Oil Drain Hose
$31.17
7 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
8 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
9 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
10 013-8043-00 013-8043-00 - 5/16-18 Hex Nuts Zinc
$2.99
11 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
12 018-8059-00 018-8059-00 - 5/16-18x1-3/4 GR 5 Hex Bolts
$2.99
13 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
14 015-0025-00 015-0025-00 - Exhaust Gasket for Vanguard
$9.61
17 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
18 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 GR 5 Hex Bolt
$2.99
19 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$299.59
20 018-5350-00 018-5350-00 - 5/16-18 X 5-1/2 GR 5 Hex Bolt
$2.99
21 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
22 018-0017-00 018-0017-00 - Torx Bolt-Exhaust-23hp Vanguar
$5.82
23 063-8018-00 063-8018-00 - Oil Filter
$21.39
24 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
25 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
26 063-2045-00 063-2045-00 - Rain Cap-Fits all Canisters (obsolete)
use part #088-3060-00
$53.49
27 063-8090-00 063-8090-00 - Complete Air Canister-23 Brigg
$267.49
28 088-1060-00 088-1060-00 - Canister Filter Cover-23 Brigg
$106.99
29 063-8050-00 063-8050-00 - Canister Air Filter-23 Vanguar
$48.14
31 015-8000-00 015-8000-00 - Spark Plug-Kohler Briggs
$10.99
