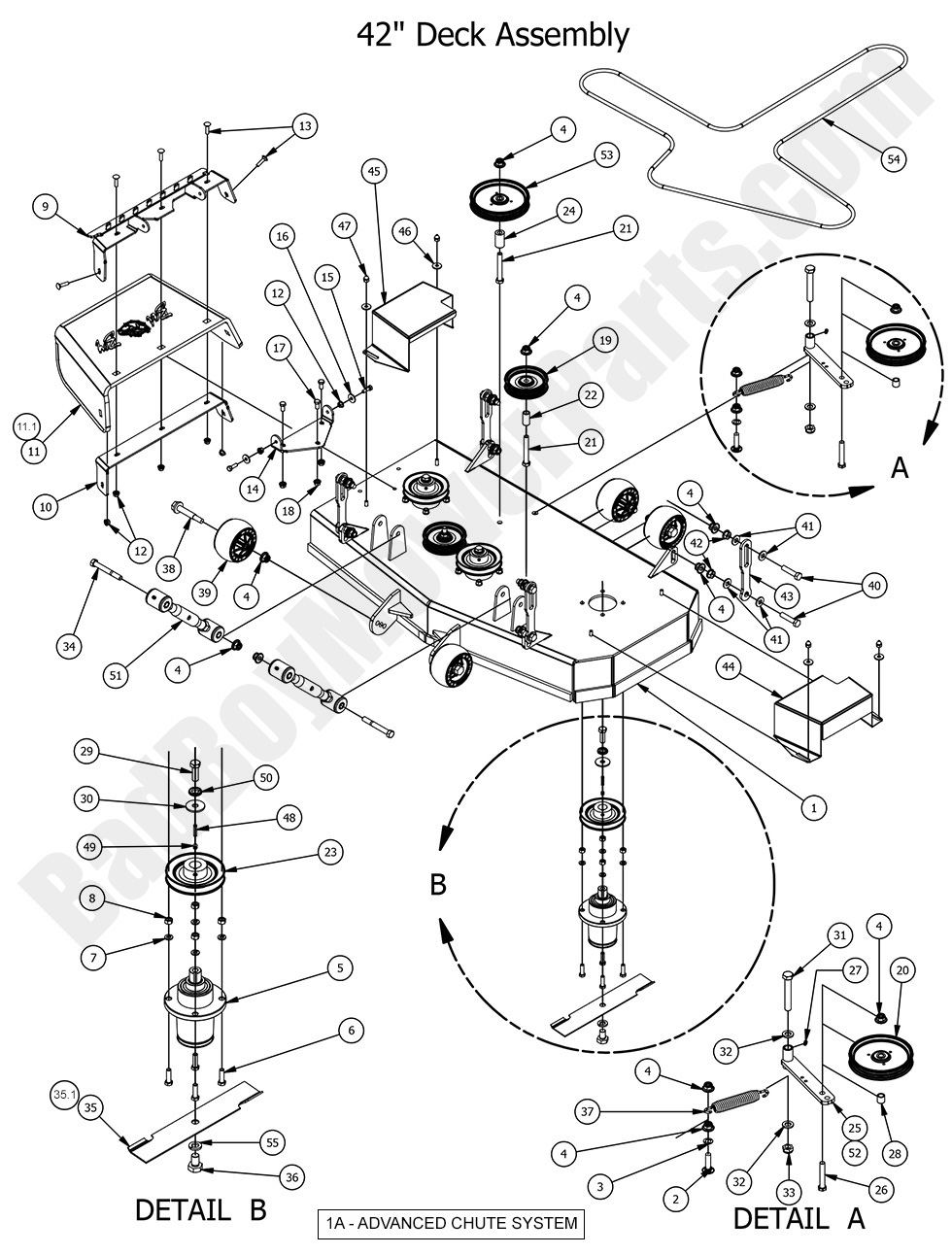

2016 Compact Outlaw 42" Deck Assembly

42" Deck Assembly

You have selected the 42in. Deck diagram for your Bad Boy Compact Outlaw. BadBoyMowerParts.com has the diagrams you need for the 2016 Compact Outlaw models. Find all of your Bad Boy parts for your 2016 Compact Outlaw parts here. We are your Bad Boy mower parts source. The Bad Boy parts diagram below is for the 2016 Compact Outlaw 42in. Deck . If you are not able to find the Bad Boy parts for your 2016 Compact Outlaw please contact us using our Bad Boy parts live chat or toll free at 318.654.8520. Thanks for shopping with us for all of your Bad Boy parts needs.

Bad Boy Mower Parts Lookup

2016 Compact Outlaw 42" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6006-00 088-6006-00 - Advanced Chute System For Select 42", 48", 50", 52" Mowers & select 54", 2022 - 2024 Maverick HD 42", Will Not Fit MZ
$266.99
1 060-5442-00 060-5442-00 - 2016-2017 42" Compact Outlaw Deck Shell
$1123.49
2 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
3 019-0007-00 019-0007-00 -.517 Square Hole Round Washer
$2.99
4 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
5 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$213.99
6 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 GR 5 Hex Bolt
$2.99
7 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
8 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
9 039-4870-00 039-4870-00 - 48/52 Discharge Top Bracket Ru bber Chute Assembly
$42.52
10 039-4871-00 039-4871-00 - 48/52 Discharge Lower Bracket Rubber Chute
$32.65
11.1 210-6005-48 210-6005-48 - Chute Assembly (See Models Used On For Detail)
$181.89
11 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
12 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
13 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
14 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
15 018-2007-00 018-2007-00 - 5/16-18 X 1 GR 5 Hex Bolt Zinc
$2.99
16 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
17 018-5250-00 018-5250-00 - 3/8-16 X 3/4 GR 5 Hex Bolts
$2.99
18 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
19 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
20 033-7201-00 033-7201-00 - 5 3/4 Idler Pulley
$35.48
21 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
22 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500 Leng th Spacer Zinc
$3.62
23 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
24 025-5339-00 025-5339-00 -.502 ID X 1.00 OD X 1.750 Leng th Spacer Zinc
$5.36
25 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
26 018-7016-00 018-7016-00 - 1/2-13 X 3 GR 5 Hex Bolts Zinc
$2.99
27 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
28 025-5203-00 025-5203-00 - Spacer 3/4ODx1/2IDx0.75 Susp f ork
$3.29
29 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 GR 5 Bolts Zinc, Fine Thread Bolt
$2.99
30 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
31 018-5311-00 018-5311-00 - 5/8-11 X 4 GR 5 Hex Bolts Zinc
$4.06
32 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
33 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknu t Zinc
$2.99
34 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt Yello
$4.39
35.1 038-4227-00 038-4227-00 - 42" Gator Blade - Outlaw
$21.99
35 038-4226-00 038-4226-00 - 42" High Lift Blade-Outlaw
$21.99
36 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
37 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
38 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
39A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
39 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
40 018-6037-00 018-6037-00 - 1/2-13 X 2-1/4 GR 5 Hex Bolts
$2.99
41 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
42 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
43 039-2125-00 039-2125-00 - Outlaw Deck Hanger Bracket (See Models Used On For Details) (obsolete)
use part #039-2125-17
$15.60
45 014-4810-00 014-4810-00 - Pulley Cover Compact Outlaw Right Side
$26.74
46 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
47 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
48 042-6030-00 042-6030-00 - 1/4 x 1 Square Key
$4.81
49 030-6029-00 030-6029-00 - 3/8-16x1/2 Socket Set Cup Poin
$2.99
50 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
51 048-7000-00 048-7000-00 - Toplink-Outlaw Decks (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
52 039-6945-01 039-6945-01 - Deck Idler Assembly (See Models Used On For Details)
$40.65
53 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley-Capitol Stampings
$35.48
54 041-4022-00 041-4022-00 - B138 Deck Belt (See Models Used On For More Details, Not For 54" CZT/Stand-On)
$78.01
55 019-4807-00 019-4807-00 - 5/8 Lockwasher Zinc
$2.99
