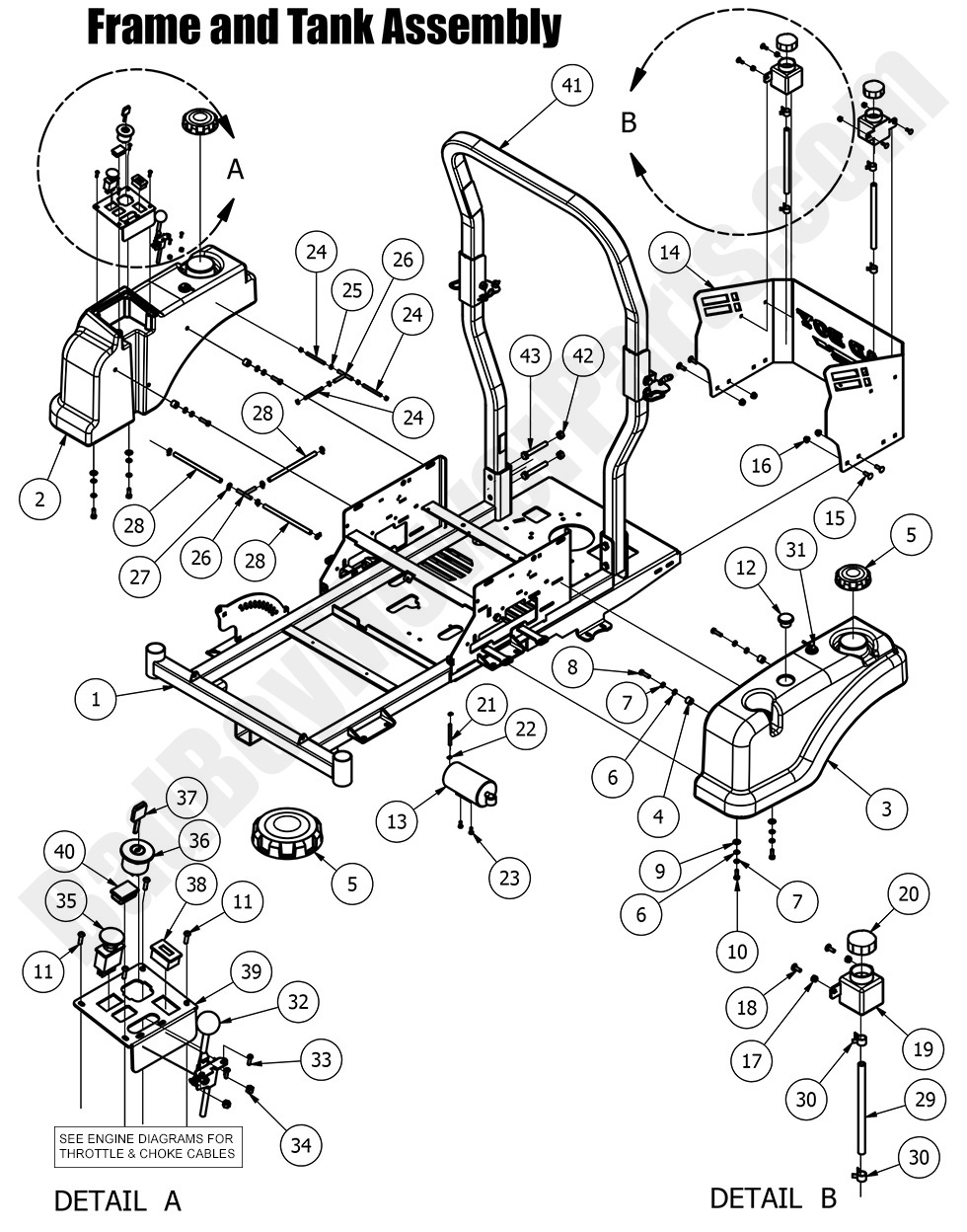

2016 Compact Outlaw Frame & Fuel Tank

Frame & Fuel Tank

You have selected the Frame & Fuel Tank diagram for your Bad Boy 2016 Compact Outlaw. BadBoyMowerParts.com has the diagrams you need for the 2016 Compact Outlaw models. Find all of your Bad Boy parts for your 2016 Compact Outlaw parts here. We are your BadBoy mower parts source. The Bad Boy parts diagram below is for the 2016 Compact Outlaw Frame & Fuel Tank . If you are not able to find the Bad Boy parts for your 2016 Compact Outlaw please contact us using our Bad Boy parts live chat or toll free at 318.654.8520. Thanks for shopping with us for all of your Bad Boy parts needs.

Bad Boy Mower Parts Lookup

2016 Compact Outlaw Frame & Fuel Tank
  Position Number SKU Product Title Price
1A 088-3500-00 088-3500-00 - Mount Assist Handle
$58.84
1 070-5500-00 070-5500-00 - 2016 Compact Outlaw Frame
$1123.49
2 067-5000-50 067-5000-50 - Right Fuel Tank (See Models Used On For Details)
$352.99
3 067-5001-50 067-5001-50 - Left Fuel Tank (See Models Used On For Details)
$352.99
4 025-2000-00 025-2000-00 -.380x.735x.470 Nylon Spacer
$2.99
5 066-8083-00 066-8083-00 - 3.5" Tethered Fuel Cap
$21.23
6 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
7 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
8 018-2006-00 018-2006-00 - 5/16-18 X 1-1/4 GR 5 Hex Bolt
$2.99
9 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
10 018-2007-00 018-2007-00 - 5/16-18 X 1 GR 5 Hex Bolt Zinc
$2.99
11 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99
12 067-4050-00 067-4050-00 - Fuel Gauge-Tanks (See Models Used On For Details)
$46.00
13 067-0020-00 067-0020-00 - Carbon Canister ZT,CZT,Outlaw RY652CC
$62.40
14 026-0080-00 026-0080-00 - Rear Plate (See Models Used On For Details)
$245.99
15 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
16 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
17 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
18 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
19 067-8090-00 067-8090-00 - Hydraulic Expansion Tank (See Models Used On For Details)
$31.22
20 066-5050-00 066-5050-00 - Hydraulic Tank Cap (See Models Used On For Details)
$15.60
21 051-8073-00 051-8073-00 - 3/16" Vinyl Tubing (Priced Per Foot)
$2.99
22 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
23 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT CL 8
$2.99
24 051-8072-00 051-8072-00 - 1/4" Vinyl Tubing - Black (Priced Per Foot)
$2.99
25 072-8072-00 072-8072-00 - 1/4" Vinyl Hose Clamp
$3.29
26 073-8068-00 073-8068-00 - Fuel Line T
$9.70
27 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
28 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose PRICED/FOOT
$6.41
29 051-8064-00 051-8064-00 - 1/2 Clear Braided Hose PRICED/ FOOT
$2.99
30 072-8065-00 072-8065-00 - 3/8 Hose Clamp - CTB-16-STFS
$2.99
31 067-6052-00 067-6052-00 - Rollover Valve-White (obsolete)
use part #067-6070-00
$24.60
32 055-8020-00 055-8020-00 - Throttle-53" (See Models Used On For Details)
$38.97
33 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
34 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zin c Orange Nylon
$2.99
35 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
36 077-8076-00 077-8076-00 - Ignition Switch (key not included)
$21.39
37 042-9000-00 042-9000-00 - Ignition Key
$4.06
38 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
39 079-3450-00 079-3450-00 - 2013-2017 Control Panel (See Models Used On For Details)
$31.22
40 018-1040-00 018-1040-00 - Light Plug
$2.99
41 089-0005-00 089-0005-00 - 2x2 Folding ROPS
$852.52
42 013-0005-00 013-0005-00 - 1/2" Center Lock Nut
$2.99
43 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 GR 5 Hex Bolts
$2.99
