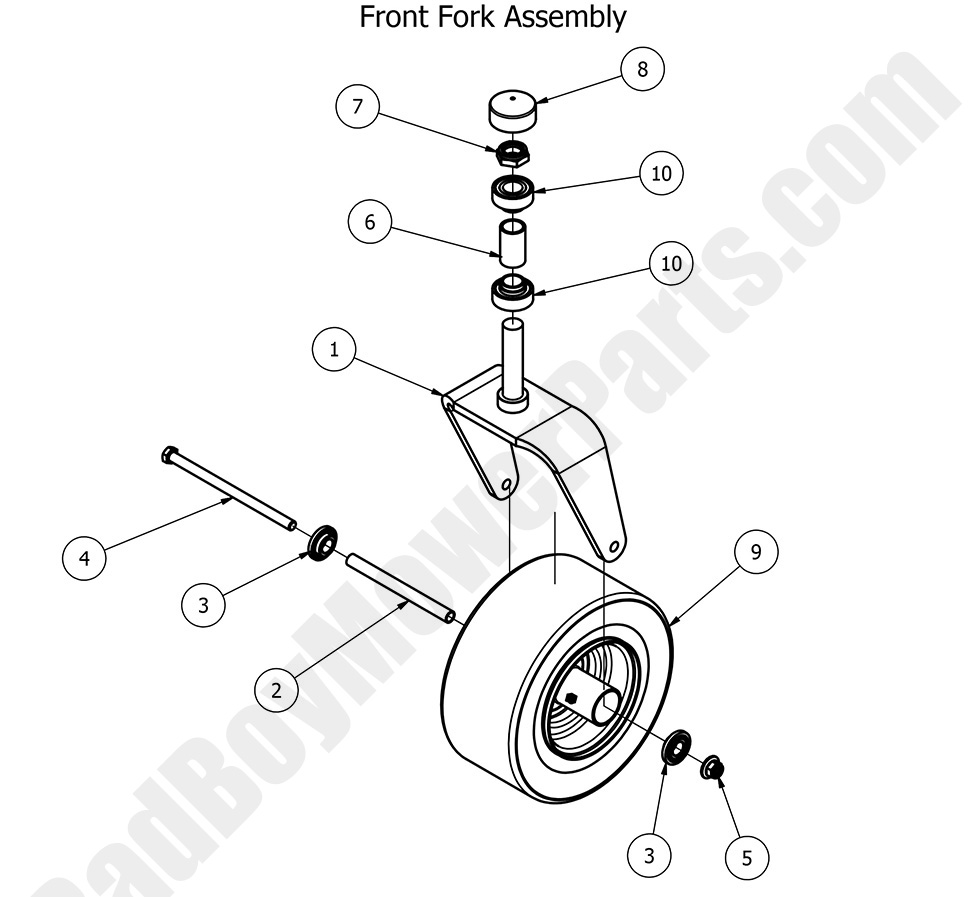

2016 Compact Outlaw Front Fork Assembly

Front Fork Assembly

You have selected the Front Fork Assembly diagram for your Bad Boy 2016 Compact Outlaw. BadBoyMowerParts.com has the diagrams you need for the 2016 Compact Outlaw models. Find all of your Bad Boy parts for your 2016 Compact Outlaw parts here. We are your BadBoy mower parts source. The Bad Boy parts diagram below is for the 2016 Compact Outlaw Front Fork Assembly . If you are not able to find the Bad Boy parts for your 2016 Compact Outlaw please contact us using our Bad Boy parts live chat or toll free at 318.654.8520. Thanks for shopping with us for all of your Bad Boy parts needs.

Bad Boy Mower Parts Lookup

2016 Compact Outlaw Front Fork Assembly
  Position Number SKU Product Title Price
1 023-7913-00 023-7913-00 - Front Fork-Non Suspension
$149.99
2 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
3 022-7010-00 022-7010-00 - 1 3/4" Bearing-Large Bore Front Wheel
$20.32
4 018-7010-00 018-7010-00 - 1/2-13 X 9 GR 5 Hex Bolts Zinc
$5.82
5 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
6 025-0004-00 025-0004-00 - ZT/CZT Caster Bearing Spacer
$12.77
7 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine
$3.62
8 014-2050-00 014-2050-00 - Rubber Caster Bearing Cover (See Models Used On For Details)
$3.73
9 022-3085-00 022-3085-00 - 13x6.50-6 LARGE BORE-Black Front Assembly
$120.90
10 010-2000-00 010-2000-00 - Front Fork Caster Bearing (See Models Used On For Details)
$16.68
