2016 Compact Outlaw|Transaxle Assembly Diagram|Bad Boy Mower Parts

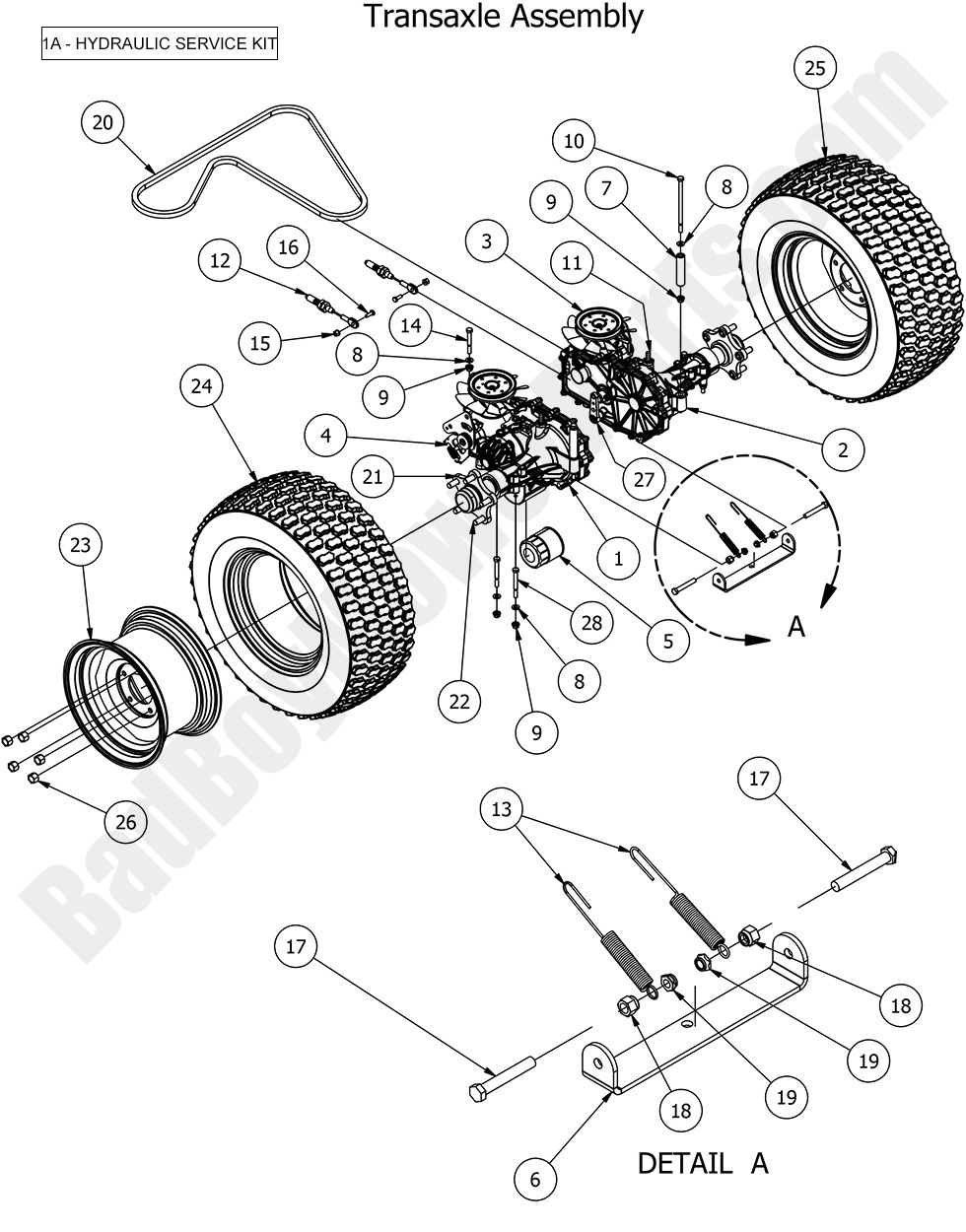

Transaxle Assembly

You have selected the Transaxle Assembly diagram for your 2016 Bad Boy Compact Outlaw. BadBoyMowerParts.com has the diagrams you need for the 2016 Compact Outlaw models. Find all of your Bad Boy parts for your 2016 Compact Outlaw parts here. We are your BadBoy mower parts source. The Bad Boy parts diagram below is for the 2016 Compact Outlaw Transaxle Assembly . If you are not able to find the Bad Boy parts for your 2016 Compact Outlaw please contact us using our Bad Boy parts live chat or toll free at 318.654.8520. Thanks for shopping with us for all of your Bad Boy parts needs.

Bad Boy Mower Parts Lookup

2016 Compact Outlaw|Transaxle Assembly Diagram|Bad Boy Mower Parts
  Position Number SKU Product Title Price
1A 085-4051-00 085-4051-00 - 2020 Models and Older - ZT2800 - ZT3100 - ZT3200 & ALL ZT3400 Hydro Service Package With Expansion Tanks
$104.74
1 050-6000-00 050-6000-00 - ZT3400 Transaxle - Left (obsolete)
use part #050-6000-01
$877.39
2 050-6001-00 050-6001-00 - ZT3400 Transaxle - Right (obsolete)
use part #050-6001-01
$877.39
3 050-2072-00 050-2072-00 - Fan/Pulley Kit for CZT
$63.96
4 034-9080-00 034-9080-00 - Gold Transaxle Spring
$14.89
5 063-1050-00 063-1050-00 - ZT Hydraulic Filter
$22.71
6 028-4802-00 028-4802-00 - Crossover Bar 2016-2017 (See Models Used On For Detail) (obsolete)
use part #028-4801-00
$28.10
7 025-5340-00 025-5340-00 -.365 ID X.752 OD X 3.313Lengt h Spacer Zinc
$8.74
8 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
9 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
10 018-5355-00 018-5355-00 - 5/16-18 X 6 GR 5 Hex Bolt Zinc
$2.99
11 024-1200-00 024-1200-00 - Fitting, 3/8 x 3/8 45 Degree, 4603-6-6 (See Models Used On For Details)
$19.93
12 064-3000-00 064-3000-00 - 44" Brake Cable
$31.22
13 034-1025-00 034-1025-00 - Brake Spring (See Models Used On For Detail)
$12.48
14 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
15 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
16 018-8052-00 018-8052-00 - 1/4-20 X 3/4 GR 5 Hex Bolts
$2.99
17 018-2071-00 018-2071-00 - 3/8 x 2 1/2 Hex Tap Bolt - Ful l Thread - ACS
$2.99
18 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
19 013-9003-00 013-9003-00 - 3/8 Nylock Jam Nut 1/2 Nut
$2.99
20 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
21 050-2077-00 050-2077-00 - 5 Bolt Hub Kit CZT TRANS
$95.20
22 050-2012-00 050-2012-00 - Transaxle Wheel Studs/ Drum Brake Studs
$5.61
23 022-3011-00 022-3011-00 - 12x7" Black Wheel-48" EZT Only
$114.48
24 022-3025-00 022-3025-00 - 23 x 8.50 - 12 Turf Tire
$224.99
25 022-3010-00 022-3010-00 - 23x8.50-12 Tire Assembly-Black
$265.99
26 013-3000-00 013-3000-00 - Acorn Lug Nut
$3.29
27 092-8000-00 092-8000-00 - Transaxle Brake Lever
$21.28
28 018-4701-00 018-4701-00 - 5/16-18 X 3 GR 5 Hex Bolt Zinc
$2.99
