2016 Compact Outlaw Engine - Vanguard 810cc

Engine - Vanguard 810cc

You have selected the Engine - Vanguard 810cc diagram for your Bad Boy Compact Outlaw. BadBoyMowerParts.com has the diagrams you need for the 2016 Compact Outlaw models. Find all of your Bad Boy parts for your 2016 Compact Outlaw parts here. We are your BadBoy mower parts source. The Bad Boy parts diagram below is for the 2016 Compact Outlaw Engine - Vanguard 810cc . If you are not able to find the Bad Boy parts for your 2016 Compact Outlaw please contact us using our Bad Boy parts live chat or toll free at 318.654.8520. Thanks for shopping with us for all of your Bad Boy parts needs.

Bad Boy Mower Parts Lookup

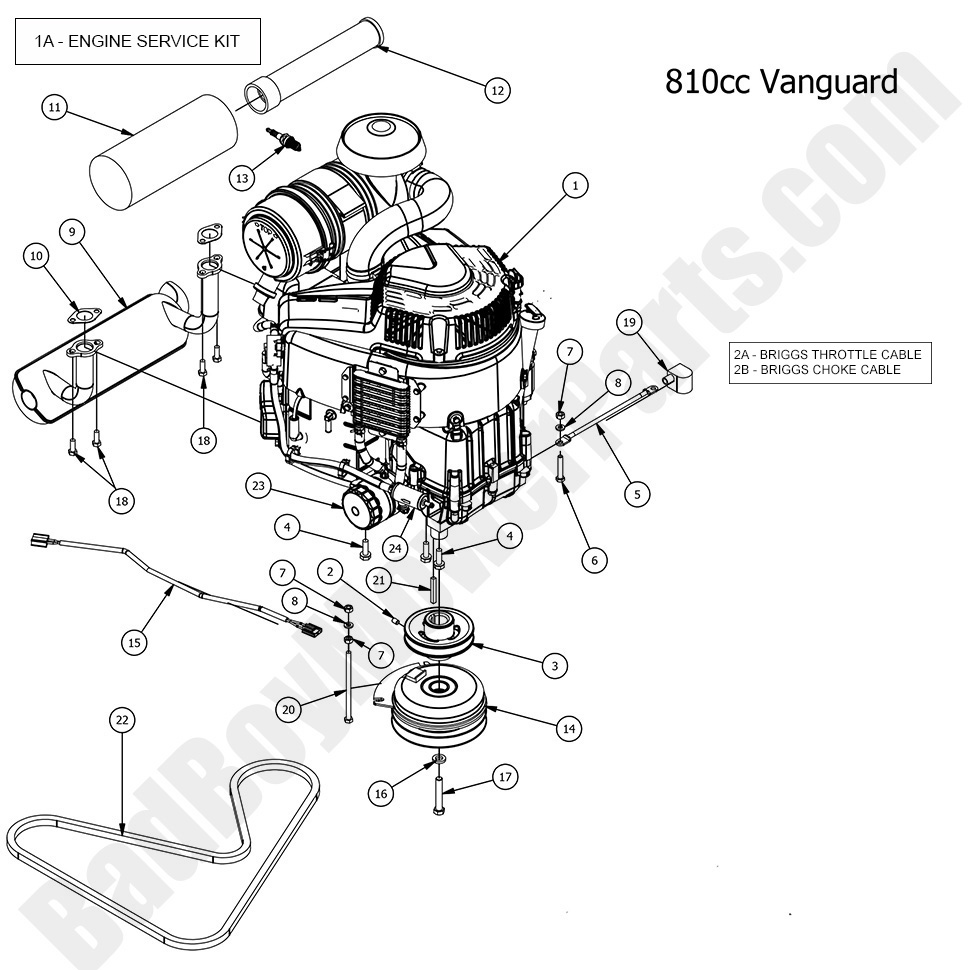

2016 Compact Outlaw Engine - Vanguard 810cc
  Position Number SKU Product Title Price
1A 063-2000-10 063-2000-10 - Briggs Vanguard 810/993/999cc Engine Service Kit
$127.15
1 015-0810-00 015-0810-00 - 810cc Vanguard Engine 26hp
$2134.65
2 030-6029-00 030-6029-00 - 3/8-16x1/2 Socket Set Cup Poin
$2.99
3 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley w/ Extended Shaft (See Models Used On For Details)
$42.58
4 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
5 064-8061-00 064-8061-00 - 30 Black Battery Cable (See Models Used On For Details)
$22.92
6 018-8059-00 018-8059-00 - 5/16-18x1-3/4 GR 5 Hex Bolts
$2.99
7 013-8043-00 013-8043-00 - 5/16-18 Hex Nuts Zinc
$2.99
8 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
9 015-0027-00 015-0027-00 - Exhaust Briggs 26/27/30hp (See Models Used On For Detail)
$212.96
10 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
11 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
12 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
13 015-8000-00 015-8000-00 - Spark Plug-Kohler Briggs
$10.99
14 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$299.59
15 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
16 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
17 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 GR 5 Hex Bolt
$2.99
18 018-0017-00 018-0017-00 - Torx Bolt-Exhaust-23hp Vanguar
$5.82
19 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
20 018-5350-00 018-5350-00 - 5/16-18 X 5-1/2 GR 5 Hex Bolt
$2.99
21 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
22 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
23 063-8018-00 063-8018-00 - Oil Filter
$21.39
24 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
