2016 Diesel 1500cc Air Filter Assembly

Air Filter Assembly

You have selected the Air Filter Assembly diagram for your 2016 Bad Boy Diesel 1500CC. BadBoyMowerParts.com has the diagrams you need for the 2016 Diesel 1500CC models. Find all of your Bad Boy parts for your 2016 Diesel 1500CC parts here. We are your BadBoy mower parts source. The Bad Boy parts diagram below is for the 2016 Diesel 1500CC Air Filter Assembly . If you are not able to find the Bad Boy parts for your 2016 Diesel 1500CC please contact us using our Bad Boy parts live chat or toll free at 318.654.8520. Thanks for shopping with us for all of your Bad Boy parts needs.

Bad Boy Mower Parts Lookup

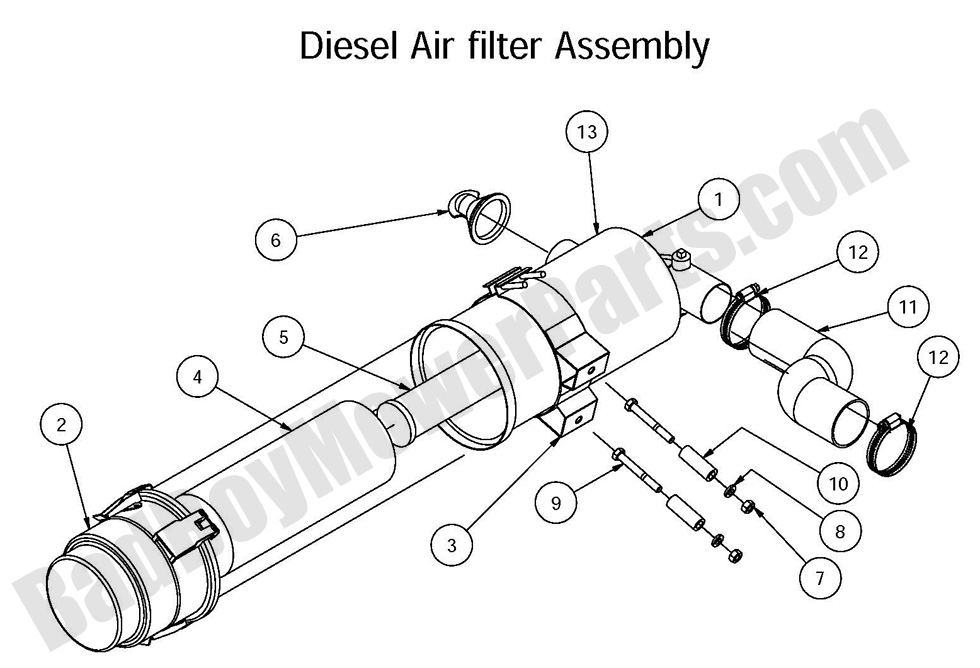

2016 Diesel 1500cc Air Filter Assembly
  Position Number SKU Product Title Price
1 088-1018-00 088-1018-00 - Canister forAll Diesel Air
$85.17
2 088-1017-00 088-1017-00 - Enginaire air canister cap
$64.19
3 088-1019-00 088-1019-00 - Mounting Bracket for Diesel Ai
$32.09
4 063-2050-00 063-2050-00 - Diesel Air Filter - Outer
$46.78
5 063-2060-00 063-2060-00 - Diesel Air Filter - Inner
$42.58
6 088-1020-00 088-1020-00 - Debris Plug-Enginaire Filter
$14.19
7 013-8043-00 013-8043-00 - 5/16-18 Hex Nuts Zinc
$2.99
8 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
9 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
10 025-8000-00 025-8000-00 -.378x.625x1.750 Spacer Zinc
$4.81
11 051-3002-00 051-3002-00 - Air Intake Hose-Diesel Air Filter Canister
$27.43
12 072-2002-00 072-2002-00 - 2-1/2 Hose Clamp
$11.34
13 088-1010-50 088-1010-50 - Enginaire Canister VLR-Complete Diesel Models
$211.55
