2016 Diesel 1500cc Hydraulic Cooler Assembly

Hydraulic Cooler Assembly

You have selected the Hydraulic Cooler Assembly diagram for your 2016 Bad Boy Diesel 1500CC. BadBoyMowerParts.com has the diagrams you need for the 2016 Diesel 1500CC models. Find all of your Bad Boy parts for your 2016 Diesel 1500CC parts here. We are your Bad Boy Mower parts source. The Bad Boy parts diagram below is for the 2016 Diesel 1500CC Hydraulic Cooler Assembly . If you are not able to find the Bad Boy parts for your 2016 Diesel 1500CC please contact us using our Bad Boy parts live chat or toll free at 318.654.8520. Thanks for shopping with us for all of your Bad Boy parts needs.

Bad Boy Mower Parts Lookup

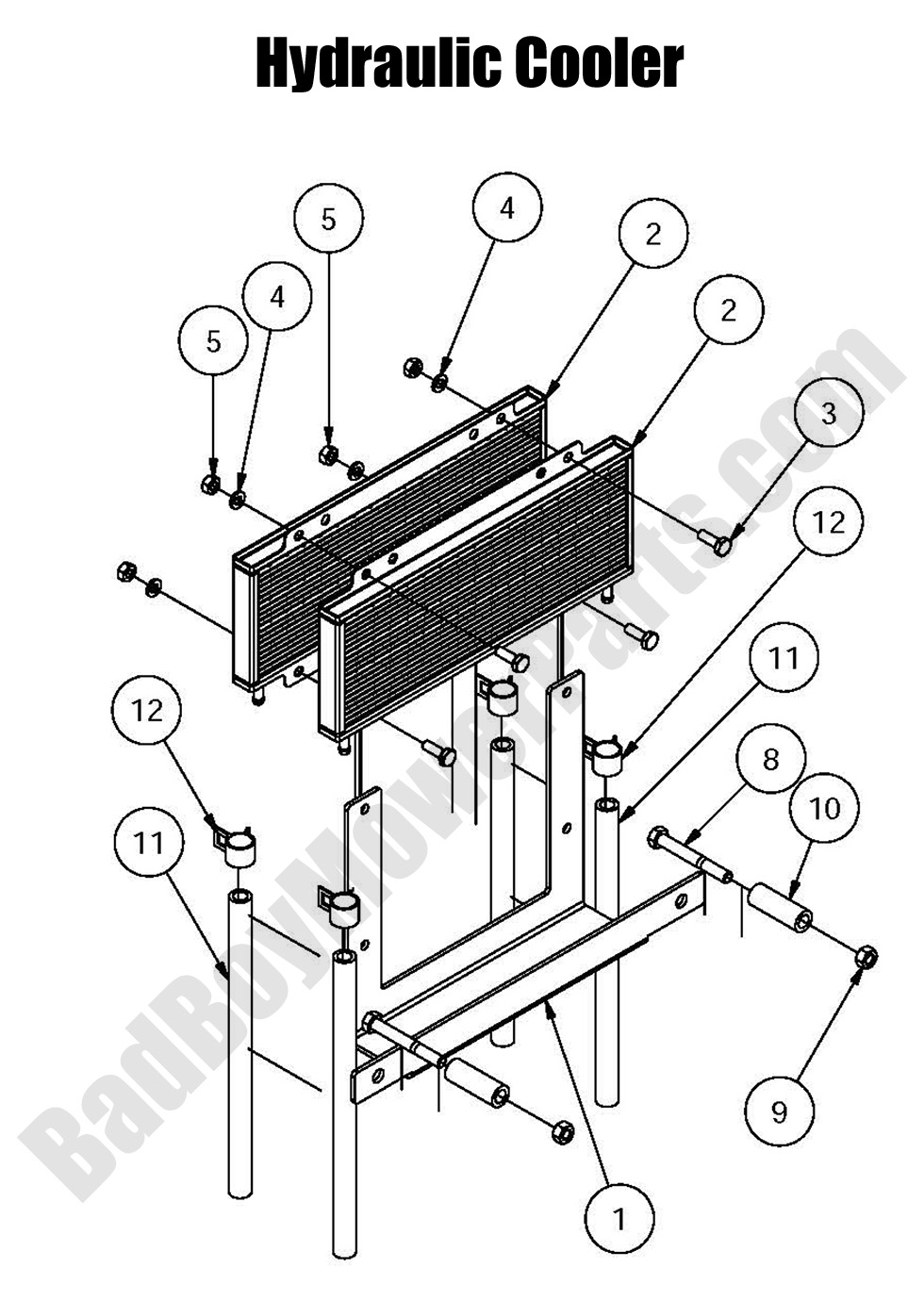

2016 Diesel 1500cc Hydraulic Cooler Assembly
  Position Number SKU Product Title Price
1 057-5950-00 057-5950-00 - 2007-2017 Hydraulic Cooler Holder Diesel and AOS Models
$34.97
2 061-8012-00 061-8012-00 - Hydraulic Cooler-Diesel Models
$76.53
3 018-8052-00 018-8052-00 - 1/4-20 X 3/4 GR 5 Hex Bolts
$2.99
4 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
5 013-8039-00 013-8039-00 - 1/4-20 Hex Nuts Zinc
$2.99
8 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
9 013-8043-00 013-8043-00 - 5/16-18 Hex Nuts Zinc
$2.99
10 025-8000-00 025-8000-00 -.378x.625x1.750 Spacer Zinc
$4.81
11 051-8063-00 051-8063-00 - 3/8 Clear Hose PRICED PER FOOT
$2.99
12 072-8065-00 072-8065-00 - 3/8 Hose Clamp - CTB-16-STFS
$2.99
