2016 Diesel 1500cc Wheel Motor & Suspension Assembly

Wheel Motor & Suspension Assembly

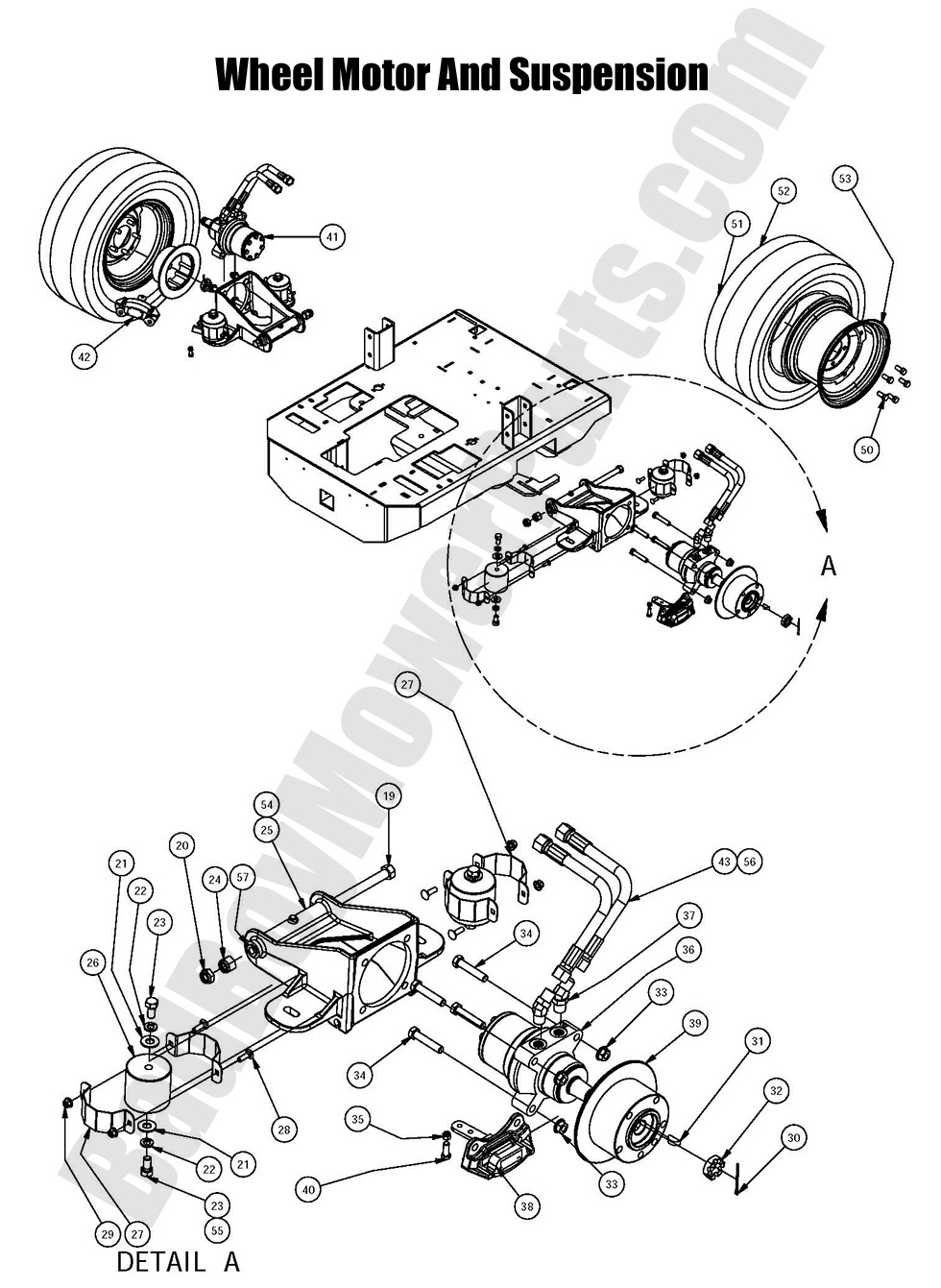

The Bad Boy Mower Rear Suspension & Wheel Motors for the 2016 Diesel - 1500cc is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the bad boy mowers parts diagrams for the 2016 Diesel - 1500cc models as well. Find all of your Bad Boy mowers 2016 Diesel - 1500cc parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. If you are not able to find the Bad Boy parts for your 2016 Diesel - 1500cc please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2016 Diesel 1500cc Wheel Motor & Suspension Assembly
  Position Number SKU Product Title Price
19 018-2051-00 018-2051-00 - 5/8 x 10 Bolt Grade 8
$15.61
20 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknu t Zinc
$2.99
21 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
22 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
23 018-2030-00 018-2030-00 - 1/2 x 1 Bolt
$2.99
24 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
25 070-8000-00 070-8000-00 - 60 Suspension Kit Wheel Motor
$312.34
26 032-8999-00 032-8999-00 - Vibration Mount - Blue Dot Rear Mount for Diesel Models
$64.22
27 072-1000-00 072-1000-00 - Isolator Band Clamp
$7.28
28 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
29 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
30 020-7022-00 020-7022-00 - 1/8 X 2-1/4 Cotter Pins Zinc
$2.99
31 042-7041-00 042-7041-00 - Woodruff Key-Wheel Motor
$14.19
32 013-7050-00 013-7050-00 - 1" Castle Nut for Wheel Motor (obsolete)
use part #013-7055-00
$15.61
33 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
34 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 GR 5 Bolt Zinc
$2.99
35 013-8047-00 013-8047-00 - 5/16-18 Nylon Insert Locknut Z inc Orange Nylon
$2.99
36 015-4600-00 015-4600-00 - 18cc Parker Wheel Motor-Right AOS/Diesel
$640.93
37 024-2050-00 024-2050-00 - 45 Degree Wheel Motor Fitting -6822
$17.02
38 092-7000-00 092-7000-00 - 2014-2018 Outlaw XP/Diesel, 2019-2022 Renegade/Rogue Right Brake Caliper w/bracket
$99.32
39 092-5201-00 092-5201-00 - 2007-2008 AOS/Diesel, 2014-2018 Diesel/Outlaw XP, 2019-2022 Renegade/Rogue Brake Disc 8
$127.72
40 018-6049-00 018-6049-00 - 3/8-16 X 1 GR 5 Hex Bolts Zinc
$2.99
41 015-4601-00 015-4601-00 - 18cc Parker Wheel Motor - Left AOS/Diesel
$640.93
42 092-7001-00 092-7001-00 - 2014-2018 Outlaw XP/Diesel, 2019-2022 Renegade/Rogue Left Brake Caliper w/bracket
$99.32
43 051-2080-00 051-2080-00 - 26" Hydraulic Hose Assembly w/Adaptors
$156.17
50 018-7033-00 018-7033-00 - 1/2-20 X 1-1/2 Lug Bolts Zinc
$2.99
51 022-7031-00 022-7031-00 - 26 x 12.00 - 12 Tire and Orang e Wheel Assembly
$458.99
52 022-7032-00 022-7032-00 - 26 x 12.00 - 12 Tire (One Tire Only)
$331.99
53 022-7034-00 022-7034-00 - 12 x 10.5 Wheel - AOS Rear
$235.99
54 070-8001-00 070-8001-00 - 72 Suspension Kit Wheel Motor
$283.95
55 018-2080-00 018-2080-00 - 1/2-13 X 1-1/4 Hex Bolt
$2.99
56 051-6085-00 051-6085-00 - 26 inch Hose Only
$40.53
57 032-6033-00 032-6033-00 - Brass Bushing - SS-2024-18 Pump Idler Arms
$3.84
