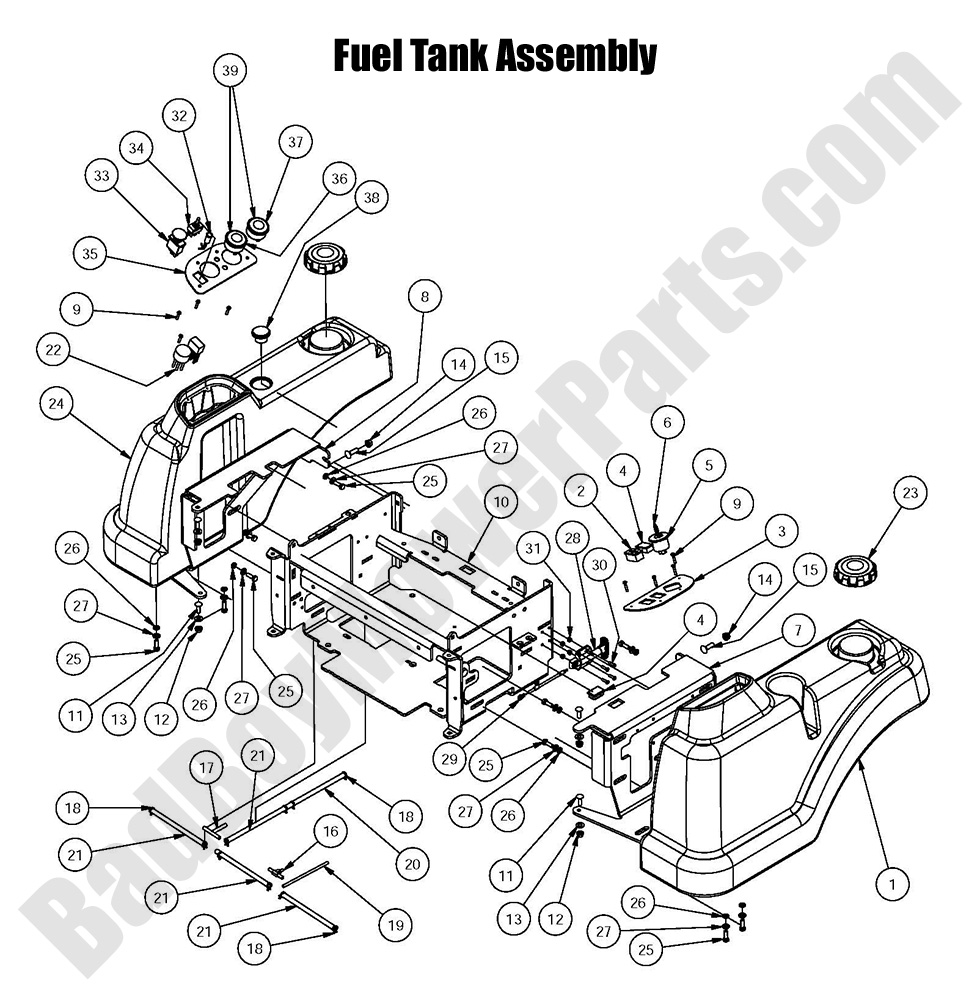

2016 Diesel 1500cc Tank Assembly

Tank Assembly

You have selected the Tank Assembly diagram for your 2016 Bad Boy Diesel 1500CC. BadBoyMowerParts.com has the diagrams you need for the 2016 Diesel 1500CC models. Find all of your Bad Boy parts for your 2016 Diesel 1500CC parts here. We are your BadBoy mower parts source. The Bad Boy parts diagram below is for the 2016 Diesel 1500CC Tank Assembly . If you are not able to find the Bad Boy parts for your 2016 Diesel 1500CC please contact us using our Bad Boy parts live chat or toll free at 318.654.8520. Thanks for shopping with us for all of your Bad Boy parts needs.

Bad Boy Mower Parts Lookup

2016 Diesel 1500cc Tank Assembly
  Position Number SKU Product Title Price
1 067-3000-00 067-3000-00 - Diesel/AOS Fuel Tank - Left
$229.99
2 083-4014-00 083-4014-00 - Hourmeter
$62.40
3 079-3402-00 079-3402-00 - Left Diesel Instrument Panel (See Models Used On For Details)
$22.71
4 018-1040-00 018-1040-00 - Light Plug
$2.99
5 077-8076-00 077-8076-00 - Ignition Switch (key not included)
$21.39
6 042-9000-00 042-9000-00 - Ignition Key
$4.06
7 031-2010-00 031-2010-00 - 72 Tank Supports- Left
$59.91
8 031-2011-00 031-2011-00 - 72 Tank Support- Right
$59.91
9 018-2015-00 018-2015-00 - 10-32 x 1 Button Head Bolt
$2.99
10 080-7000-00 080-7000-00 - 2007 Diesel Seat Frame
$427.99
11 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
12 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
13 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
14 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
15 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
16 073-2000-00 073-2000-00 - Brass Fuel Line T - Diesels
$10.21
17 073-8068-00 073-8068-00 - Fuel Line T
$9.70
18 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
19 051-8068-00 051-8068-00 - 3/16 Fuel Line
$3.59
20 051-8075-00 051-8075-00 - 5/16 Fuel Line Hose Priced per Foot
$4.81
21 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose PRICED/FOOT
$6.41
22 086-0035-00 086-0035-00 - Harness-28/35 Diesel w/Plastic Tank
$495.52
23 066-8090-00 066-8090-00 - Diesel Fuel Cap-3.5 inch Neck
$39.86
24 067-3001-00 067-3001-00 - Diesel/AOS Fuel Tank - Right
$229.99
25 018-2007-00 018-2007-00 - 5/16-18 X 1 GR 5 Hex Bolt Zinc
$2.99
26 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
27 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
28 039-2016-00 039-2016-00 - 2016 T Handle Seat Release
$28.32
29 064-0002-00 064-0002-00 - T-Handle Seat Release Cable
$23.53
30 018-8058-00 018-8058-00 - 10-24 X 1 BS C/S 18-8 SS
$2.99
31 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zin c Orange Nylon
$2.99
32 089-1000-00 089-1000-00 - Oil Light
$12.63
33 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
34 078-8077-00 078-8077-00 - Joystick - Deck Lift
$34.29
35 079-3405-00 079-3405-00 - Right Diesel Control Panel(See Models Used On For Details)
$17.11
36 086-7001-00 086-7001-00 - 2" Water Temperature Gauge, 2012-2019 Diesel Units
$107.76
37 086-7000-00 086-7000-00 - 2" Oil Pressure Gauge
$107.76
38 067-4025-00 067-4025-00 - Fuel Gauge and Grommet (See Models Used On For Details)
$54.56

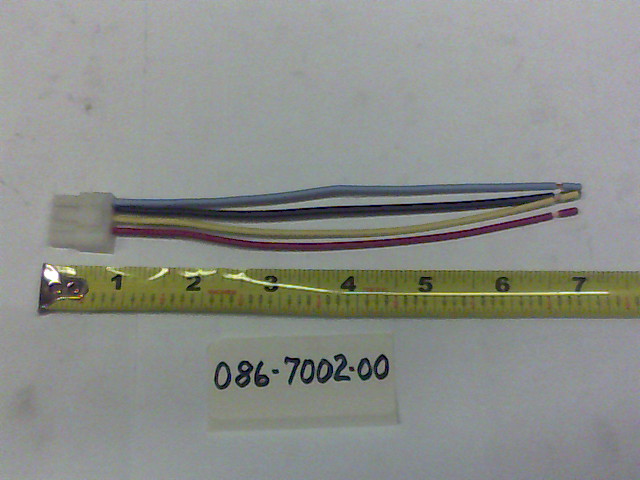

39 086-7002-00 086-7002-00 - Pigtail-2" Faria Gauge-2012
$28.32
