2017 Outlaw XP Drive Arm Assembly

Drive Arm Assembly

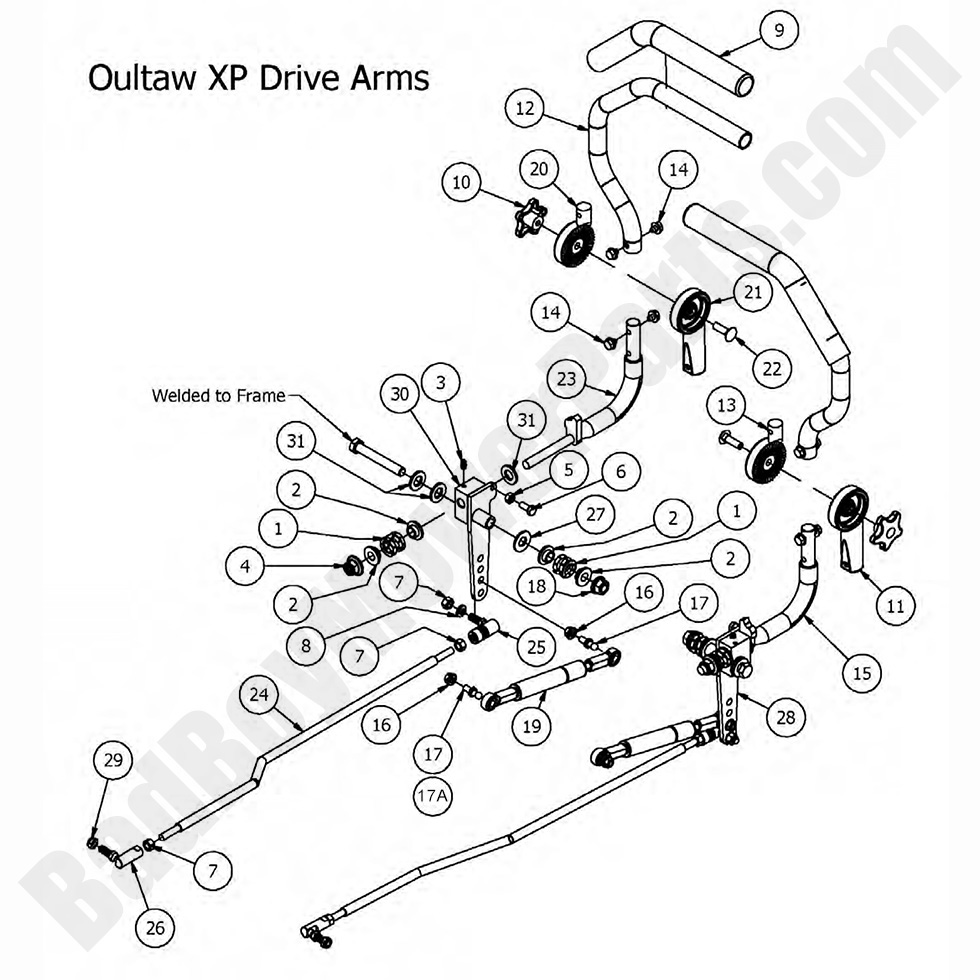

The Bad Boy Mower Drive Arm Assembly for the 2017 Outlaw XP is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the bad boy mowers parts diagrams for the 2017 Outlaw XP models as well. Find all of your Bad Boy mowers 2017 Outlaw XP parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. If you are not able to find the Bad Boy parts for your 2017 Outlaw XP please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2017 Outlaw XP Drive Arm Assembly
  Position Number SKU Product Title Price
1A 031-9060-18 031-9060-18 - Adjustable Steering Arm Kit
$181.89
1 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
2 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washe
$2.99
3 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
4 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
5 013-8043-00 013-8043-00 - 5/16-18 Hex Nuts Zinc
$2.99
6 018-8063-00 018-8063-00 - 5/16-18 X 3/4 GR 5 Hex Bolts Z
$2.99
7 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nuts Zinc
$2.99
8 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
9 069-4010-00 069-4010-00 - Black Steering Grip
$8.12
10 045-5000-00 045-5000-00 - Knob - Adjustable Steering Arm
$4.39
11 031-9015-70 031-9015-70 - Right Lower Steering Arm Adjuster Black (See Models Used On For Details)
$53.24
12 031-9010-00 031-9010-00 - Upper Tube-Adjustable Steering Arms (obsolete)
use part #031-9010-18
$28.32
12a 031-9000-18 031-9000-18 - 2017- 2022 Left Adjustable Steering Arm (See Models Used On For Details)
$154.62
12b 031-9050-18 031-9050-18 - 2017 - 2022 Right Adjustable Steering Arm Black (See Models Used On For Details)
$154.62
13 031-9016-70 031-9016-70 - Right Upper Steering Arm Adjuster Black (See Models Used On For Details)
$53.24
14 018-2020-00 018-2020-00 - 5/16-18 x 1/2 HWH Bolt-Steerin g Arms
$2.99
15 031-9025-70 031-9025-70 - Right Steering Arm Black Elbow (See Models Used On For Details)
$85.17
16 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
17A 018-2049-00 018-2049-00 - 13mm Ball Stud for 72" Deck Damper for Outlaw
$4.83
17 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
18 013-0085-00 013-0085-00 - 1/2-13 HEX FLANGE (GR.G) ZC
$2.99
19 087-0001-00 087-0001-00 - Steering Damper (See Models Used On For Details)
$62.40
20 031-9017-70 031-9017-70 - Left Upper Steering Arm Adjuster Black (See Models Used On For Details)
$53.24
21 031-9014-70 031-9014-70 - Left Lower Steering Arm Adjuster Black (See Models Used On For Details)
$53.24
22 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
23 031-9020-70 031-9020-70 - Left Steering Arm Black Elbow (See Models Used On For Details)
$85.17
24 035-5350-00 035-5350-00 - 2012-2018 Outlaw XP Steering Push Rod
$31.22
25 099-2009-00 099-2009-00 - Quick Release Ball Joint (See Models Used On For Details)
$9.89
26 099-6046-00 099-6046-00 - Ball Joint - 3/8-24 (See Models Used On For Details)
$12.83
27 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
28 027-2017-00 027-2017-00 - 2017-2018 Outlaw XP, 2018 Diesel Steering Block Assembly-Right
$35.30
29 018-4011-00 018-4011-00 - 3/8-24 Nylon Insert Jam Locknu t Zinc Orange Nylon
$2.99
30 027-2018-00 027-2018-00 - 2017-2018 Outlaw XP, 2018 Diesel Steering Block Assembly-Left
$35.30
31 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
