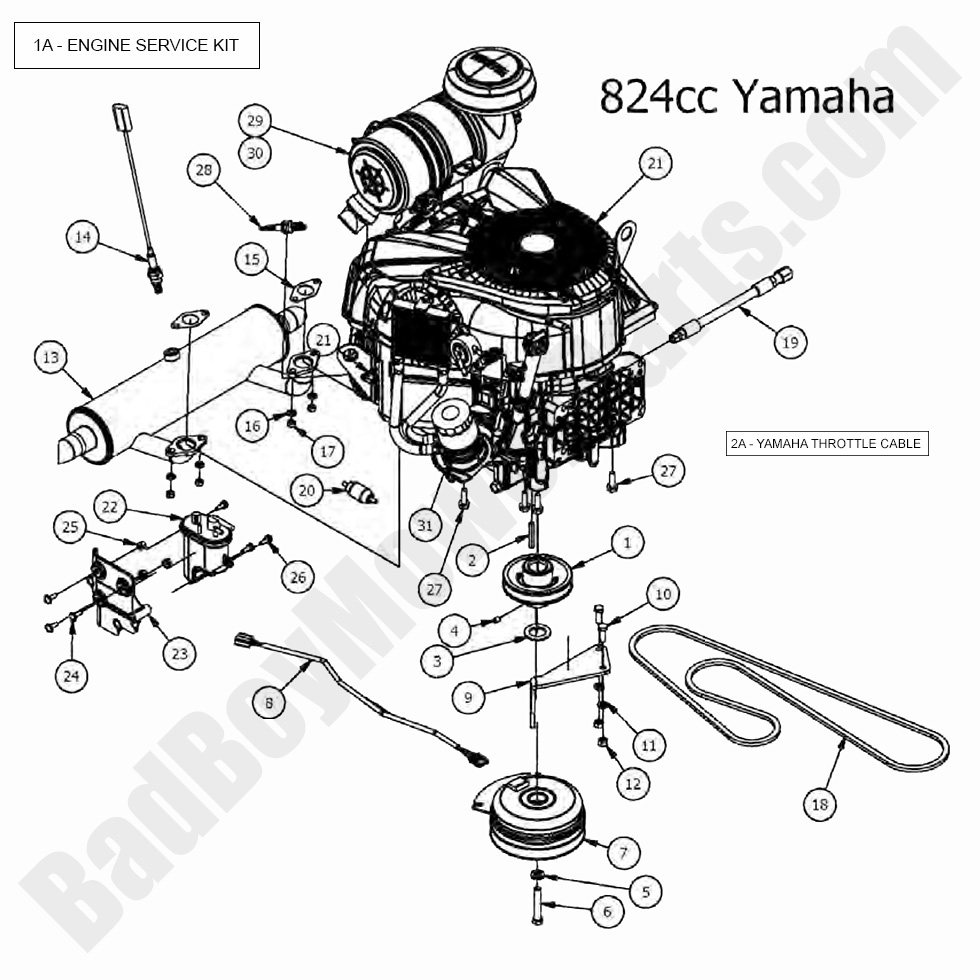

2017 Outlaw XP Engine - Yamaha 824cc

Engine - Yamaha 824cc

The Bad Boy Mower Engine - Yamaha 824cc for the 2017 Outlaw XP is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the bad boy mowers parts diagrams for the 2017 Outlaw XP models as well. Find all of your Bad Boy mowers 2017 Outlaw XP parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. If you are not able to find the Bad Boy parts for your 2017 Outlaw XP please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2017 Outlaw XP Engine - Yamaha 824cc
  Position Number SKU Product Title Price
1A 063-2000-11 063-2000-11 - Yamaha 824cc Engine Service Kit
$134.86
1 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley w/ Extended Shaft (See Models Used On For Details)
$42.58
2 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
3 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
4 030-6029-00 030-6029-00 - 3/8-16x1/2 Socket Set Cup Poin
$2.99
5 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
6 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 GR 5 Hex Bolt
$2.99
7 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$299.59
8 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
9 057-5906-00 057-5906-00 - PTO Engager Holder-Clutch Pup/Lightning/Outlaws
$20.67
10 018-6049-00 018-6049-00 - 3/8-16 X 1 GR 5 Hex Bolts Zinc
$2.99
11 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
12 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
13 015-0050-00 015-0050-00 - 2017-2018 Yamaha Exhaust
$175.37
14 015-0053-05 015-0053-05 - 2017-2022 Yamaha O2 Sensor
$181.89
15 015-0053-01 015-0053-01 - 2017-2022 Yamaha Exhaust Gasket
$8.01
16 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
17 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
18 041-8411-00 041-8411-00 - Pump Belt (See Models Used On For Detail)
$64.19
19 051-5403-00 051-5403-00 - Yamaha Oil Drain
$35.84
20 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
21 015-0053-00 015-0053-00 - 2017-2022 Yamaha Engine-33hp
$3208.93
22 015-0053-03 015-0053-03 - 2017-2022 Yamaha High Pressure Fuel Pump
$534.99
23 015-0053-04 015-0053-04 - 2017-2022 Yamaha Fuel Pump Bracket
$53.49
24 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
25 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
27 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
28 015-0053-06 015-0053-06 - 2017-2022 Yamaha Spark Plug
$8.79
29 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
30 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
31 015-0053-02 015-0053-02 - 2017-2022 Yamaha Oil Filter
$25.67
