2017 Outlaw XP Front Fork Assembly

Front Fork Assembly

The Bad Boy Mower Front Fork Assembly for the 2017 Outlaw XP is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the bad boy mowers parts diagrams for the 2017 Outlaw XP models as well. Find all of your Bad Boy mowers 2017 Outlaw XP parts here. We are your Bad Boy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. If you are not able to find the Bad Boy parts for your 2017 Outlaw XP please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

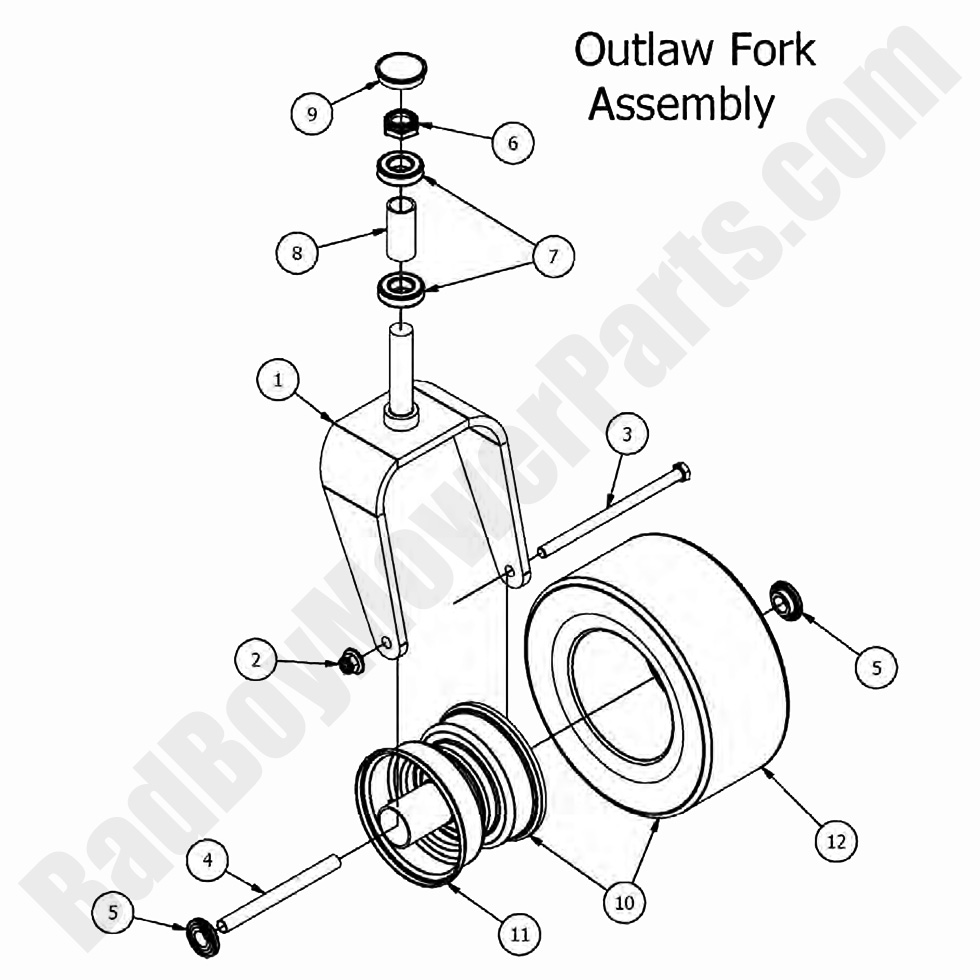

2017 Outlaw XP Front Fork Assembly
  Position Number SKU Product Title Price
1 023-7913-00 023-7913-00 - Front Fork-Non Suspension
$149.99
2 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
3 018-7010-00 018-7010-00 - 1/2-13 X 9 GR 5 Hex Bolts Zinc
$5.82
4 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
5 022-7010-00 022-7010-00 - 1 3/4" Bearing-Large Bore Front Wheel
$20.32
6 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine
$3.62
7 010-1050-00 010-1050-00 - Front Fork Caster Bearing (See Models Used On For Details)
$18.39
8 025-0003-00 025-0003-00 - Front Bearing Spacer
$14.04
9 014-2025-00 014-2025-00 - 2017-2022 Caster Bearing Cover (See Models Used On For Details)
$2.99
10 022-3085-00 022-3085-00 - 13x6.50-6 LARGE BORE-Black Front Assembly
$120.90
11 022-3090-00 022-3090-00 - Black Front Rim Only (See Models Used For Detail) (obsolete)
use part #022-3085-00
$120.90
12 022-5347-00 022-5347-00 - 13 x 6.50 - 6 Tire
$96.29
