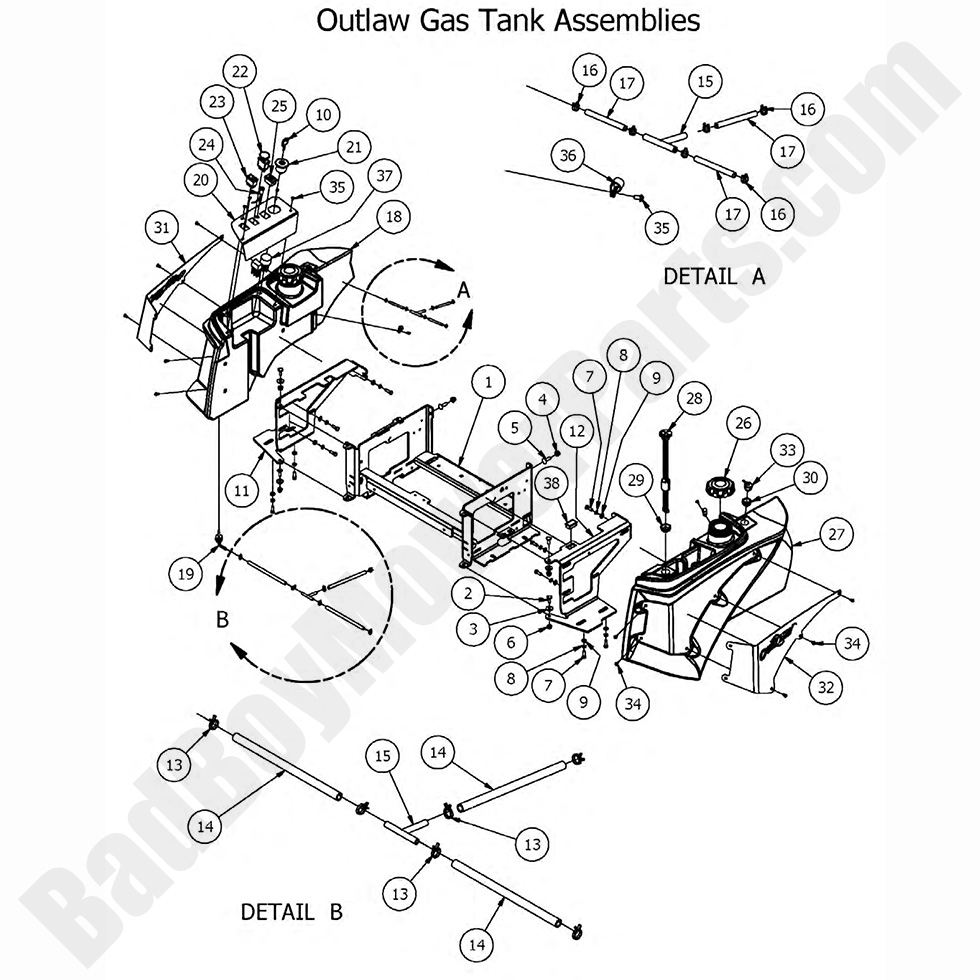

2017 Outlaw XP Fuel Tank Assemblies

Fuel Tank Assemblies

The Bad Boy Mower Fuel Tank Assemblies for the 2017 Outlaw XP is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the bad boy mowers parts diagrams for the 2017 Outlaw XP models as well. Find all of your Bad Boy mowers 2017 Outlaw XP parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. If you are not able to find the Bad Boy parts for your 2017 Outlaw XP please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2017 Outlaw XP Fuel Tank Assemblies
  Position Number SKU Product Title Price
1 080-5116-17 080-5116-17 - 2017 Outlaw Seat Bracket
$427.99
2 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
3 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
4 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
5 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
6 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
7 018-2007-00 018-2007-00 - 5/16-18 X 1 GR 5 Hex Bolt Zinc
$2.99
8 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
9 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
10 042-9000-00 042-9000-00 - Ignition Key
$4.06
11 031-2040-00 031-2040-00 - 2015-2018 Outlaw Tank Support (Right)
$58.84
12 031-2045-00 031-2045-00 - 2016-2018 Outlaw Tank Support (Left)
$58.84
13 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
14 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose PRICED/FOOT
$6.41
15 073-8068-00 073-8068-00 - Fuel Line T
$9.70
16 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 Vinyl Hose (See Models Used On For Detail)
$2.99
17 051-8072-00 051-8072-00 - 1/4" Vinyl Tubing - Black (Priced Per Foot)
$2.99
18 067-1180-50 067-1180-50 - 2015-2018 Outlaw/XP Right Fuel Tank
$278.99
19 067-6055-00 067-6055-00 - Fuel Tank Hose Nipple (See Models Used On For Detail)
$26.48
20 079-3360-00 079-3360-00 - 2015-2018 Outlaw/XP Control Panel
$28.39
21 077-8076-00 077-8076-00 - Ignition Switch (key not included)
$21.39
22 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
23 078-3000-00 078-3000-00 - Rocker Deck Lift Switch
$37.41
24 089-1000-00 089-1000-00 - Oil Light
$12.63
25 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
26 066-8083-00 066-8083-00 - 3.5" Tethered Fuel Cap
$21.23
27 067-1190-50 067-1190-50 - 2015-2018 Outlaw/XP Left Fuel Tank
$352.99
28 067-4090-00 067-4090-00 - Fuel Gauge (See Models Used On For Details)
$46.00
29 067-6056-00 067-6056-00 - Fuel Gauge Grommet (See Models Used On For Detail)
$7.14
31 079-3280-00 079-3280-00 - 2015-2018 Outlaw/XP Right Tank Panel (Metal)
$26.74
32 079-3281-00 079-3281-00 - 2015-2018 Outlaw/XP Left Tank Panel (Metal)
$26.74
33 067-6070-00 067-6070-00 - Rollover Valve and Grommet New
$24.60
34 018-2012-00 018-2012-00 - 1/4-20 X 1/2 BS C/S 18-8 SS
$2.99
35 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99
36 072-0001-00 072-0001-00 - 3/8 Cable Clamp-Black Nylon
$5.49
37 086-2050-00 086-2050-00 - Wiring Harness 23hp-27hp Briggs and Stratton, 2011-2018 Outlaw
$388.88
38 018-1040-00 018-1040-00 - Light Plug
$2.99
