2017 Outlaw XP Frame & Drive System

Frame & Drive System

The Bad Boy Mower Frame & Drive System for the 2017 Outlaw XP is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the bad boy mowers parts diagrams for the 2017 Outlaw XP models as well. Find all of your Bad Boy mowers 2017 Outlaw XP parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. If you are not able to find the Bad Boy parts for your 2017 Outlaw XP please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

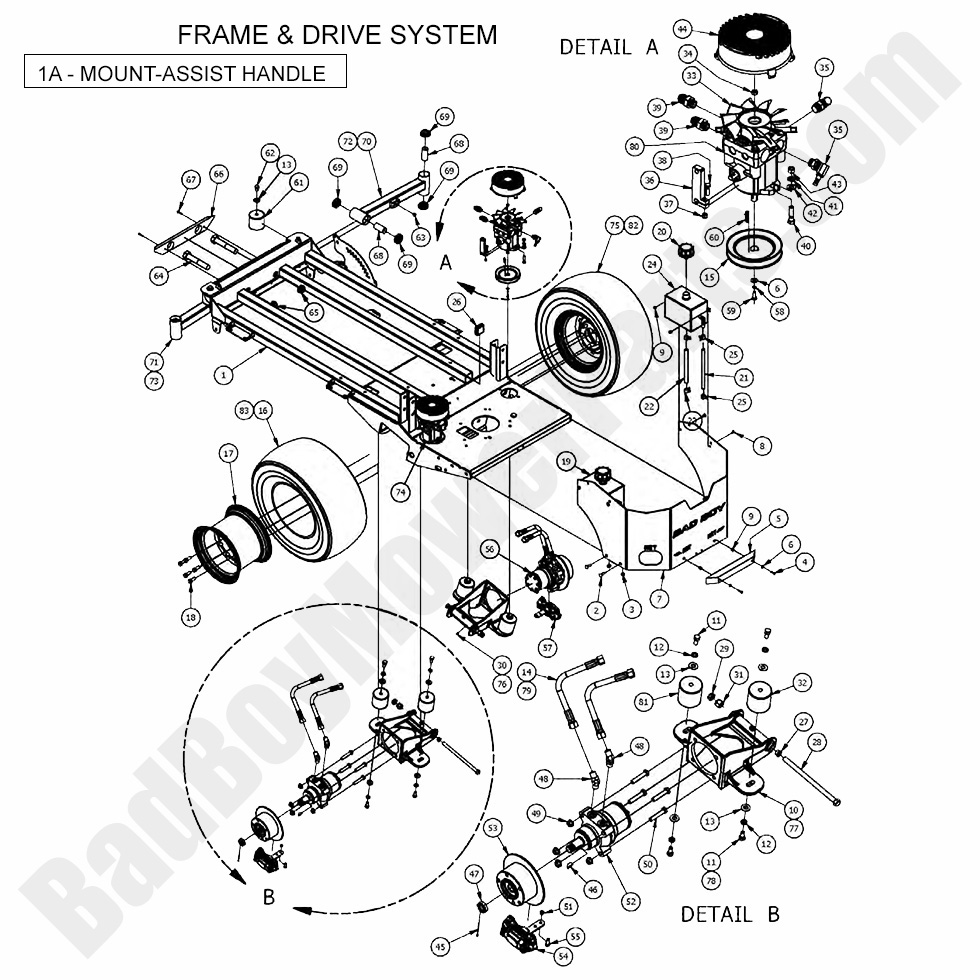

2017 Outlaw XP Frame & Drive System
  Position Number SKU Product Title Price
1A 088-3500-00 088-3500-00 - Mount Assist Handle
$58.84

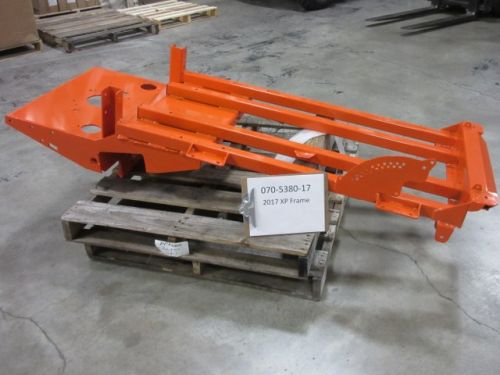

1 070-5380-17 070-5380-17 - 2017-2018 Outlaw XP Frame
$1390.99
2 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
3 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
4 018-4702-00 018-4702-00 - 1/4-20 X 1-1/4 GR 5 Hex Bolt
$2.99
5 029-7037-00 029-7037-00 - 14 Bumper
$42.79
6 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
7 026-2190-00 026-2190-00 - Outlaw/XP Rear Cover 36 Hp Vanguard (See Models Used On For Details)
$224.99
8 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
9 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99

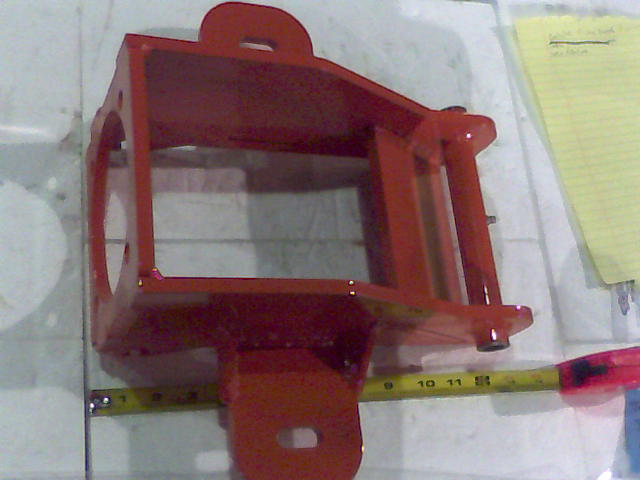

10 070-8000-00 070-8000-00 - 60 Suspension Kit Wheel Motor
$312.34
11 018-2030-00 018-2030-00 - 1/2 x 1 Bolt
$2.99
12 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
13 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
14 051-2000-00 051-2000-00 - 18" Hydraulic Hose Assy w/forged 45 Degree Adaptor
$49.63
15 033-5003-00 033-5003-00 - 5" Cast Pump Pulley - 15mm
$56.77

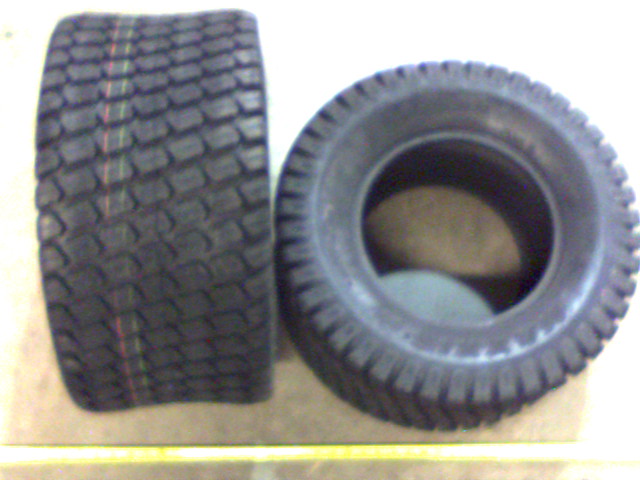

16 022-5349-00 022-5349-00 - 24 x 12 - 12 Tire Pro Maxxis (One Tire Only)
$246.99
17 022-4070-00 022-4070-00 - Black Wheel 12x8.5" For 2015 & Newer Outlaw/Outlaw XP, Rebel & 54" Rogue
$151.99

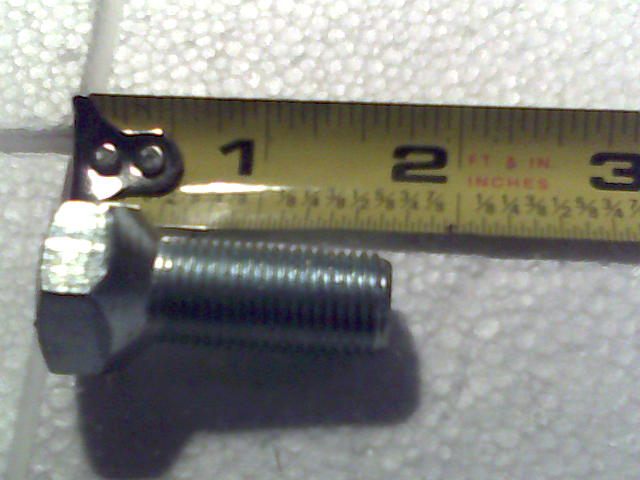

18 018-7033-00 018-7033-00 - 1/2-20 X 1-1/2 Lug Bolts Zinc
$2.99

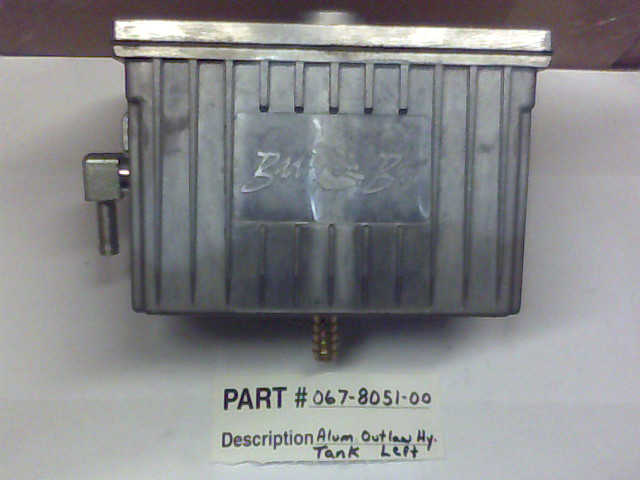

19 067-8051-00 067-8051-00 - Aluminum Outlaw Hydro Tank-Lef (See Models Used On For Details)
$192.59
20 066-8050-00 066-8050-00 - Hydraulic Tank Cap w/Dipstick (See Models Used On For Details)
$31.22
21 051-8063-00 051-8063-00 - 3/8 Clear Hose PRICED PER FOOT
$2.99
22 051-8064-00 051-8064-00 - 1/2 Clear Braided Hose PRICED/ FOOT
$2.99
23 072-8066-00 072-8066-00 - 1/2 Hose Clamp
$2.99

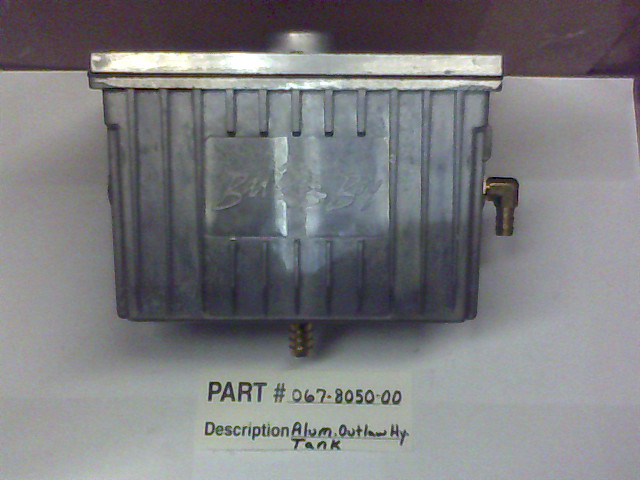

24 067-8050-00 067-8050-00 - Aluminum Outlaw Hydro Tank-Rig (See Models Used On For Details)
$192.59
25 072-8065-00 072-8065-00 - 3/8 Hose Clamp - CTB-16-STFS
$2.99
26 014-9000-00 014-9000-00 - Frame Plug 2x2
$2.99
27 032-5050-00 032-5050-00 - Bushing Sleeve - Suspension (obsolete)
use part #032-6033-00
$3.84

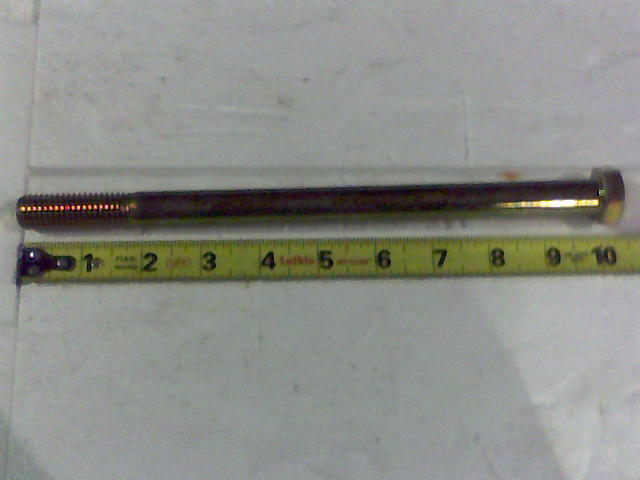

28 018-2051-00 018-2051-00 - 5/8 x 10 Bolt Grade 8
$15.61
29 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknu t Zinc
$2.99
30 024-3050-00 024-3050-00 - 1/4" Drive-in Grease Fitting Short
$2.99
31 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
32 032-9000-00 032-9000-00 - Isolator - Green Dot
$70.97

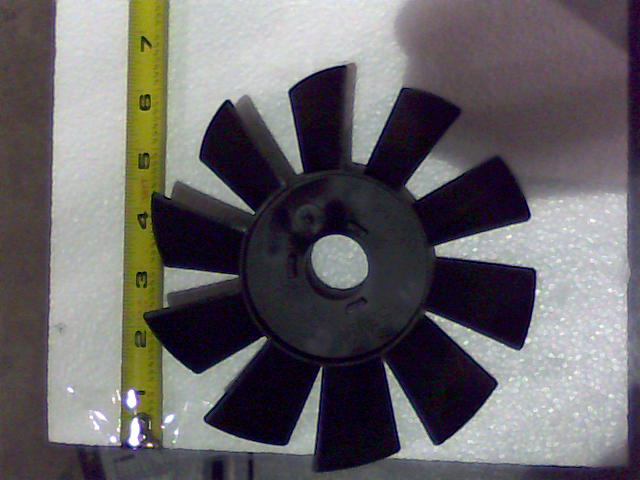

33 015-9999-00 015-9999-00 - Hydro Fan - Light/Pup/OutlawXP
$26.74
34 013-8043-00 013-8043-00 - 5/16-18 Hex Nuts Zinc
$2.99
35 024-5206-00 024-5206-00 - 90 Degree Fitting, 3/8 x 9/16, 4601-6-6
$12.42
36 031-5333-00 031-5333-00 - XP/Pup/Lightning Pump Arm
$22.75
37 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
38 018-4007-00 018-4007-00 - 1/4-20 X 1 GR 5 Hex Bolts Zinc
$2.99

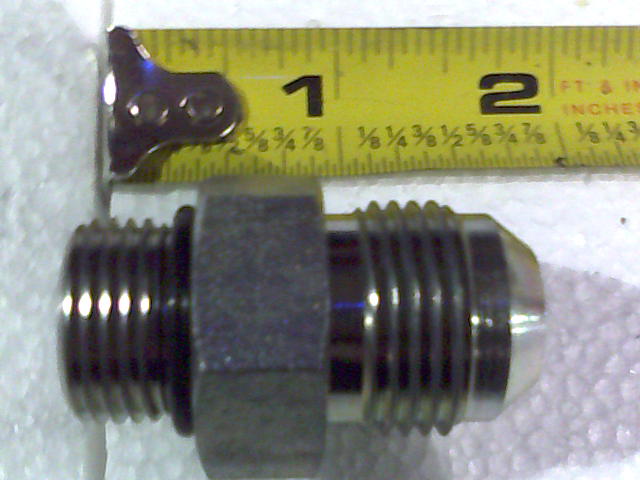

39 024-5343-00 024-5343-00 - Hydraulic Pump Fitting 6400-10 -8
$7.95
40 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
41 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
42 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
43 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
44 014-5600-00 014-5600-00 - Fan Guard 6.5" - Fits Wheel Motor Pumps
$39.81
45 020-7022-00 020-7022-00 - 1/8 X 2-1/4 Cotter Pins Zinc
$2.99

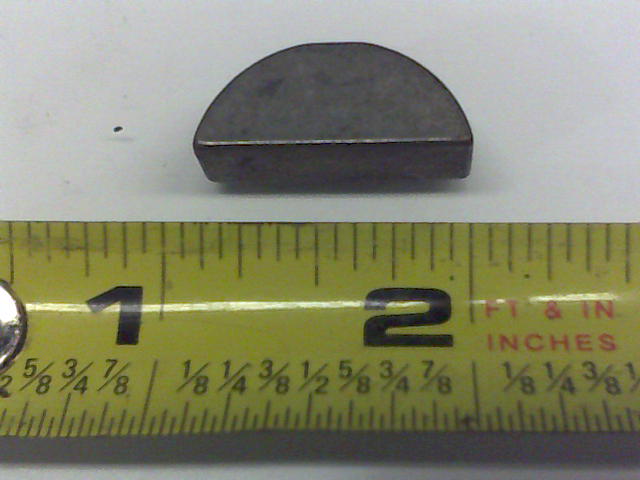

46 042-7041-00 042-7041-00 - Woodruff Key-Wheel Motor
$14.19

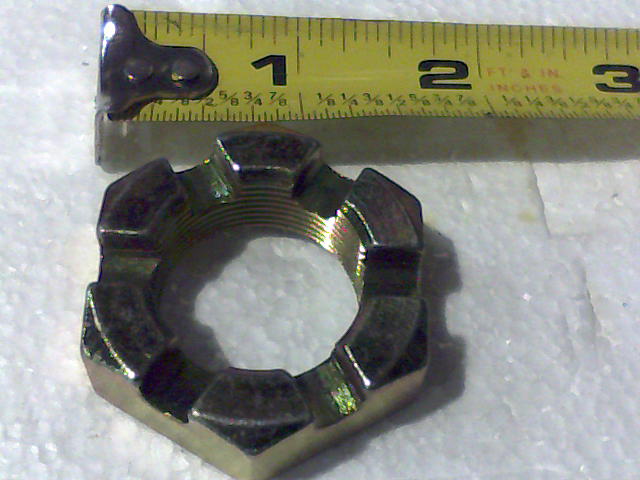

47 013-7050-00 013-7050-00 - 1" Castle Nut for Wheel Motor (obsolete)
use part #013-7055-00
$15.61
48 024-0050-00 024-0050-00 - 45 Degree Fitting 31704-10-10
$31.17
49 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
50 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 GR 5 Bolt Zinc
$2.99
51 013-8047-00 013-8047-00 - 5/16-18 Nylon Insert Locknut Z inc Orange Nylon
$2.99
52 015-4501-00 015-4501-00 - 15cc Parker Wheel Motor - Left
$533.93
53 092-5201-00 092-5201-00 - 2007-2008 AOS/Diesel, 2014-2018 Diesel/Outlaw XP, 2019-2022 Renegade/Rogue Brake Disc 8
$127.72
54 092-7001-00 092-7001-00 - 2014-2018 Outlaw XP/Diesel, 2019-2022 Renegade/Rogue Left Brake Caliper w/bracket
$99.32
55 018-6049-00 018-6049-00 - 3/8-16 X 1 GR 5 Hex Bolts Zinc
$2.99
56 015-4500-00 015-4500-00 - 15cc Parker Wheel Motor-Right
$533.93
57 092-7000-00 092-7000-00 - 2014-2018 Outlaw XP/Diesel, 2019-2022 Renegade/Rogue Right Brake Caliper w/bracket
$99.32
58 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
59 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT CL 8
$2.99
60 042-5301-00 042-5301-00 - 5MM X 1 Square Key Stock
$2.99
61 032-9002-00 032-9002-00 - Isolator - Red Dot
$70.97
62 018-1055-00 018-1055-00 - 1/2 x 3/4 Bolt
$2.99
63 014-3010-00 014-3010-00 - 5/8 Round Insert - Deck
$2.99
64 018-0026-00 018-0026-00 - 1-14 X 5 1/2 BOLT GR 8 ZC YEL
$13.90
65 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine
$3.62
66 029-8000-00 029-8000-00 - Front Bumper (See Models Used On For Details)
$31.17
67 030-7040-00 030-7040-00 - 1/4 x 1 Hex Head Tek Screw
$2.99
68 025-0003-00 025-0003-00 - Front Bearing Spacer
$14.04
69 010-1050-00 010-1050-00 - Front Fork Caster Bearing (See Models Used On For Details)
$18.39

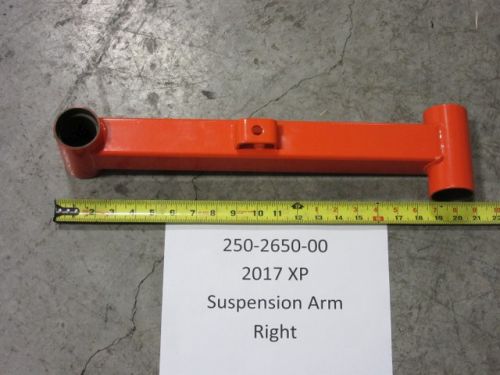

70 250-2650-00 250-2650-00 - 2017 XP Suspension Arm-Right
$56.72

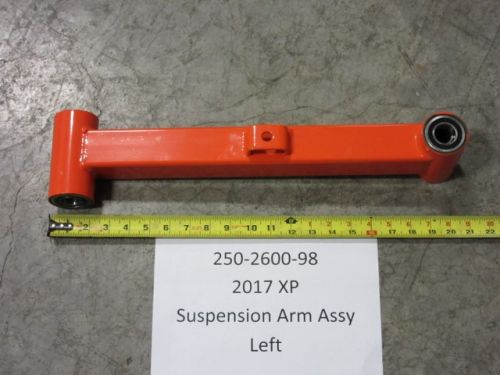

71 250-2600-98 250-2600-98 - 2017 XP Suspension Arm Assembly-Left
$109.26

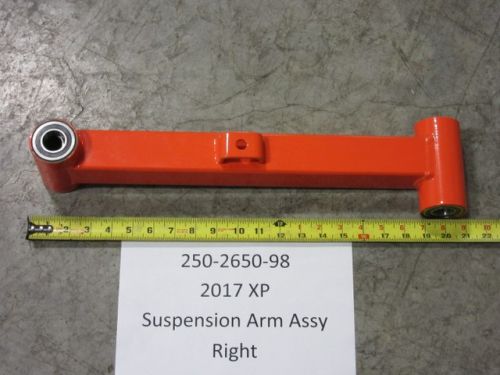

72 250-2650-98 250-2650-98 - 2017 XP Suspension Arm Assembly-Right
$109.26

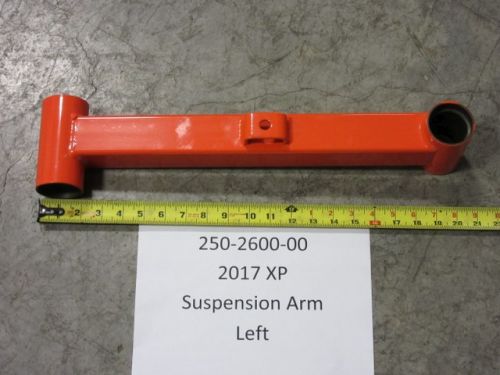

73 250-2600-00 250-2600-00 - 2017 XP Suspension Arm-Left
$56.72

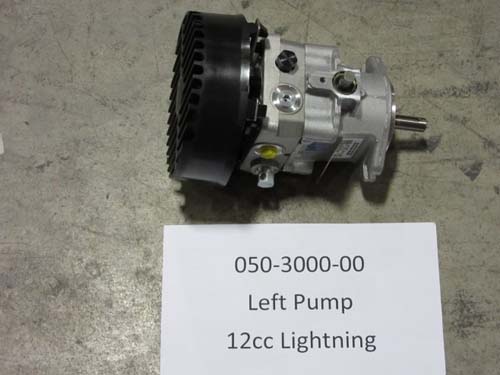

74 050-3000-00 050-3000-00 - Left Pump 12cc - Lightning PK-3KCC-GY1C-XXXX
$909.49

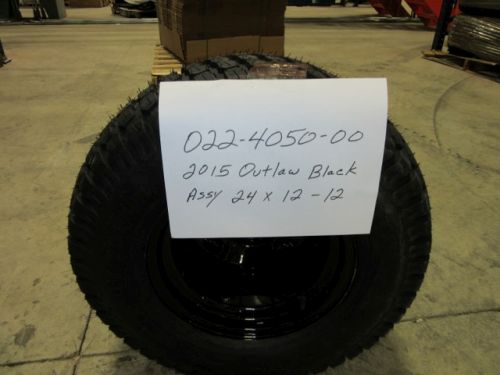

75 022-4050-00 022-4050-00 - Outlaw Black Assy24x12-12
$312.99
76 024-8000-00 024-8000-00 - 3/8 Grease Fitting-Thread Type
$2.99
77 070-8001-00 070-8001-00 - 72 Suspension Kit Wheel Motor
$283.95

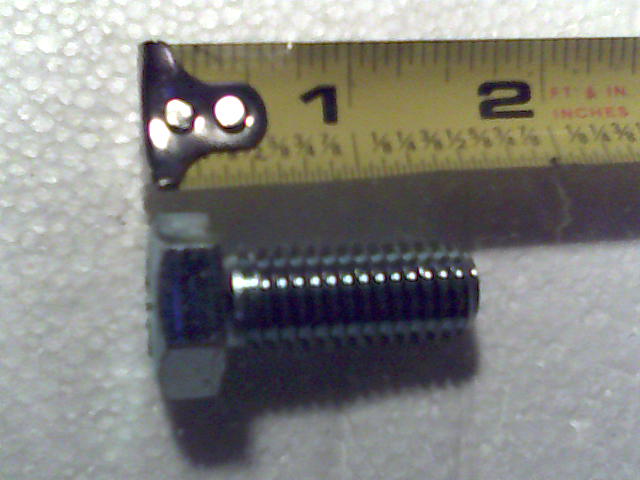

78 018-2080-00 018-2080-00 - 1/2-13 X 1-1/4 Hex Bolt
$2.99

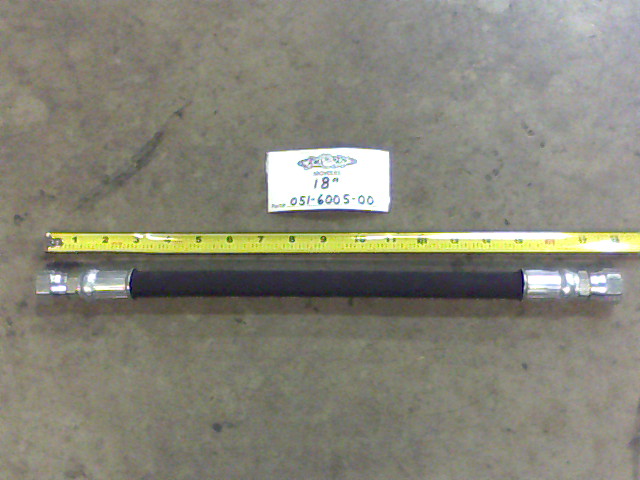

79 051-6005-00 051-6005-00 - 18" Hydraulic Hose Only
$35.84

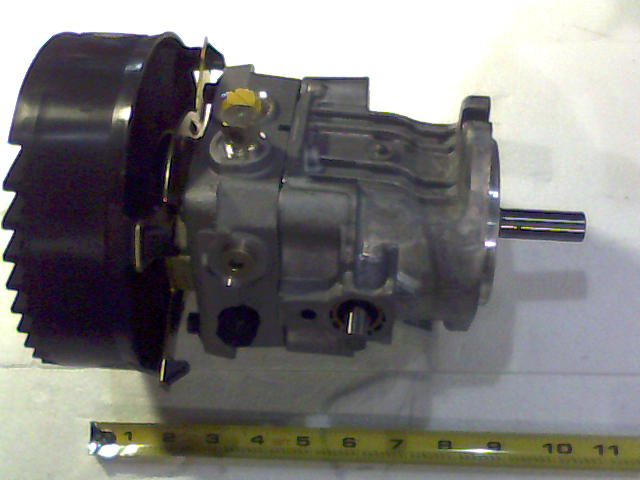

80 050-3050-00 050-3050-00 - Right Pump 12cc - Lightning PK-3HCC-GY1C-XXXX
$888.09
81 032-8999-00 032-8999-00 - Vibration Mount - Blue Dot Rear Mount for Diesel Models
$64.22
82 022-4080-00 022-4080-00 - 2017 Outlaw Assy-24x12-12 Reaper Turf
$310.99
83 022-4075-00 022-4075-00 - 2017 Outlaw Extreme/XP Reaper Tire fits the 022-4080-00
$192.99
