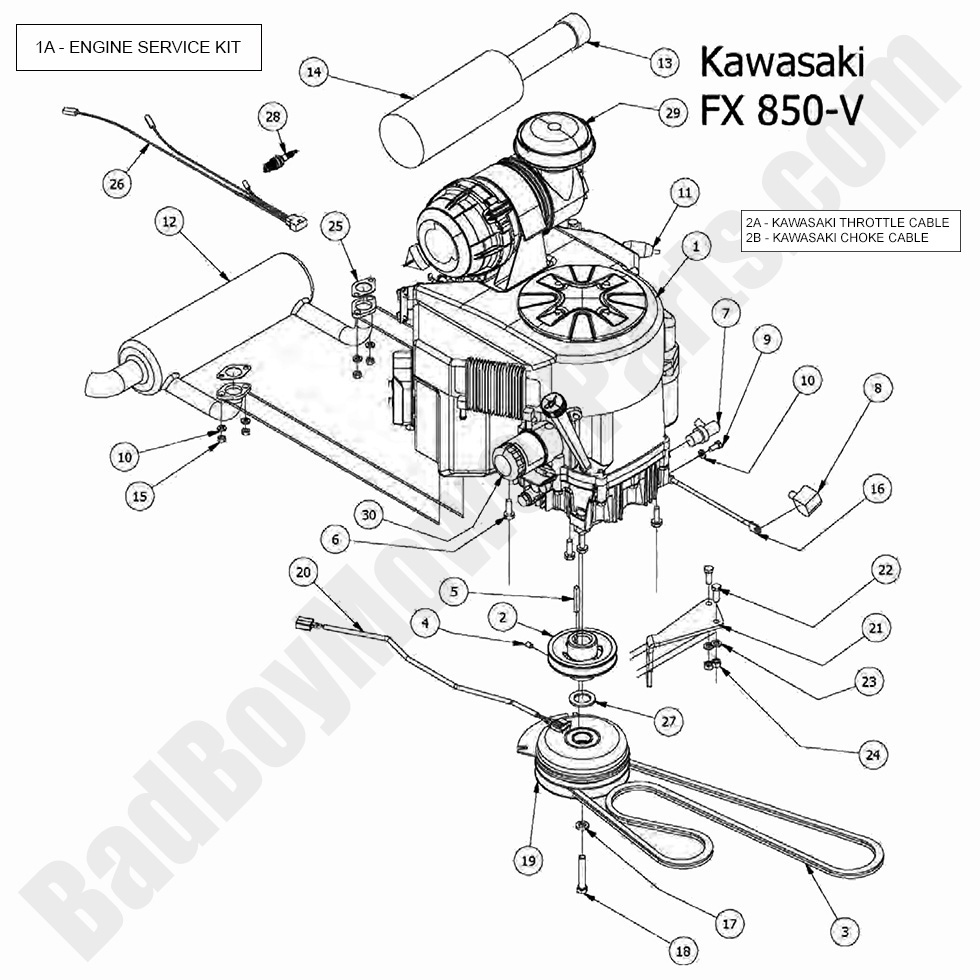

2017 Outlaw XP Engine - Kawasaki FX850V

Engine - Kawasaki FX850V

The Bad Boy Mower Engine - Kawasaki FX850V for the 2017 Outlaw XP is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the bad boy mowers parts diagrams for the 2017 Outlaw XP models as well. Find all of your Bad Boy mowers 2017 Outlaw XP parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. If you are not able to find the Bad Boy parts for your 2017 Outlaw XP please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2017 Outlaw XP Engine - Kawasaki FX850V
  Position Number SKU Product Title Price
1A 063-2000-02 063-2000-02 - Kawasaki FX850 & FX1000 Engine Service Kit
$124.74
1 015-0031-00 015-0031-00 - Kawa Engine FX-850V-AS15R
$3632.65
2 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley w/ Extended Shaft (See Models Used On For Details)
$42.58
3 041-8411-00 041-8411-00 - Pump Belt (See Models Used On For Detail)
$64.19
4 030-6029-00 030-6029-00 - 3/8-16x1/2 Socket Set Cup Poin
$2.99
5 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
6 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
7 015-5404-00 015-5404-00 - Oil Drain Valve - For Kawasaki FR, FS and FX Engines (obsolete)
use part #051-5404-00
$28.11
8 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
9 018-5321-00 018-5321-00 - M8 x 1.25 x 20MM Hex Head Bolt
$2.99
10 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
11 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
12 015-0035-00 015-0035-00 - Exhaust for 31hp Kawasaki
$218.63
13 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
14 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
15 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
16 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
17 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
18 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 GR 5 Hex Bolt
$2.99
19 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$299.59
20 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
21 057-5906-00 057-5906-00 - PTO Engager Holder-Clutch Pup/Lightning/Outlaws
$20.67
22 018-6049-00 018-6049-00 - 3/8-16 X 1 GR 5 Hex Bolts Zinc
$2.99
23 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
24 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
25 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
26 086-9002-00 086-9002-00 - Harness Adaptor-Outlaw FX-All
$46.84
27 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
28 015-8001-00 015-8001-00 - Spark plug-Kawasaki (NGK or Equivalent)
$8.79
29 088-1071-00 088-1071-00 - 31 KAW Rain Cap for Canister
$64.19
30 063-8017-00 063-8017-00 - Kawasaki Oil Filter Fits 26/27 Liquid Cool/31 KAW
$21.39
