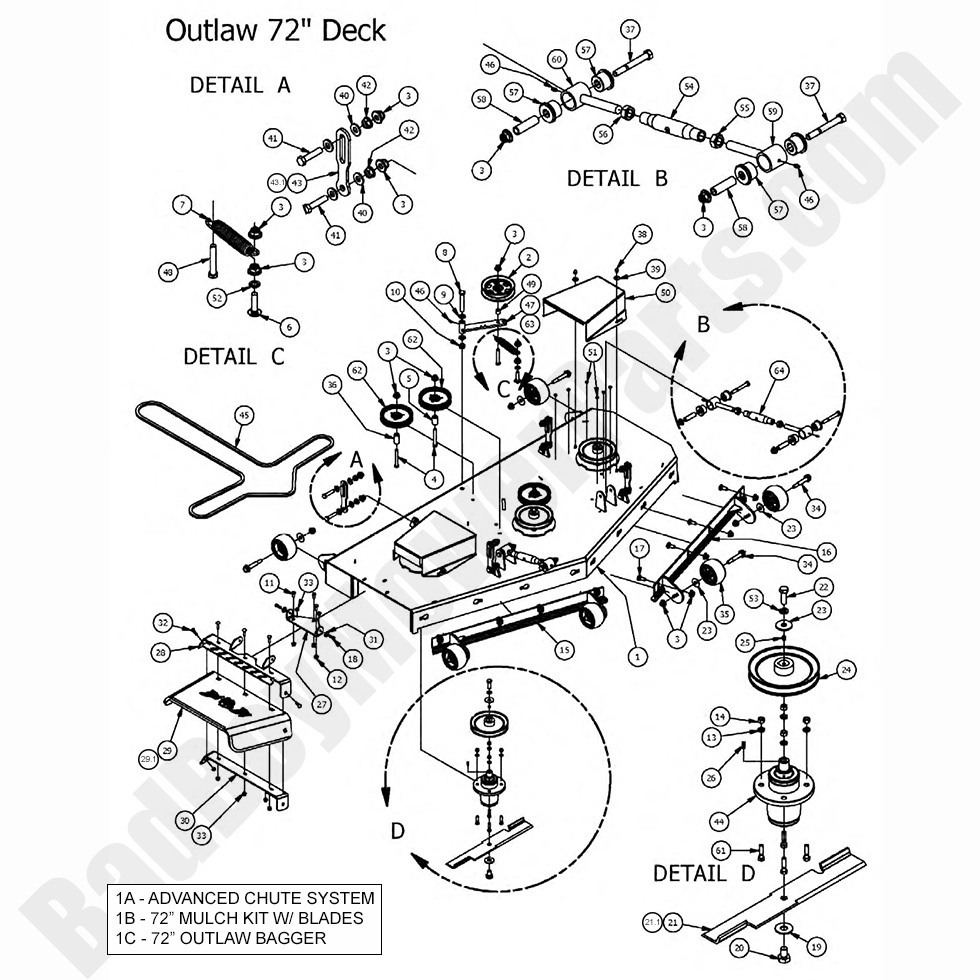

2017 Outlaw & Outlaw Extreme 72" Deck Assembly

72" Deck Assembly

The Bad Boy Mower 72" Deck Assembly for the 2017 Outlaw & Outlaw Extreme is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the bad boy mowers parts diagrams for the 2017 Outlaw & Outlaw Extreme models as well. Find all of your Bad Boy mowers 2017 Outlaw & Outlaw Extreme parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. If you are not able to find the Bad Boy parts for your 2017 Outlaw & Outlaw Extreme please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2017 Outlaw & Outlaw Extreme 72" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2024 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$266.99
1B 210-0272-50 210-0272-50 - 2017-2018 72" Mulch Kit Assembly w/Blades
$340.74
1 060-7250-00 060-7250-00 - 2015-2018 72" Outlaw/XP Deck Shell
$1283.99
2 033-8050-00 033-8050-00 - 2017-2024 5" Split Idler Pulley-Tensioner Only
$35.48
3 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
4 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
5 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500 Leng th Spacer Zinc
$3.62
6 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
7 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
8 018-5311-00 018-5311-00 - 5/8-11 X 4 GR 5 Hex Bolts Zinc
$4.06
9 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
10 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknu t Zinc
$2.99
11 018-5250-00 018-5250-00 - 3/8-16 X 3/4 GR 5 Hex Bolts
$2.99
12 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
13 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
14 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
15 060-7211-00 060-7211-00 - 72" Deck Adjustable Front (Right Gate) (See Models Used On For Detail)
$103.99
16 060-7210-00 060-7210-00 - 72" Deck Adjustable Front (Left Gate) (See Models Used On For Detail)
$103.99
17 018-3003-00 018-3003-00 - 1/2 x 1 1/4 Carriage Bolt
$2.99
18 018-2007-00 018-2007-00 - 5/16-18 X 1 GR 5 Hex Bolt Zinc
$2.99
19 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
20 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
21.1 038-5400-00 038-5400-00 - 72" Gator Mulching Blade
$24.99
21 038-7230-00 038-7230-00 - 72" High Lift Fusion Blade
$24.99
22 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 GR 5 Bolts Zinc, Fine Thread Bolt
$2.99
23 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
24 033-7203-00 033-7203-00 - 7" Spindle Deck Pulley 72" Decks - DB-112
$35.48
25 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
26 042-6030-00 042-6030-00 - 1/4 x 1 Square Key
$4.81
27 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
28 039-4864-00 039-4864-00 - Discharge Chute Upper Hanger Plate (See Models Used On For Detail)
$42.52
29.1 210-6005-98 210-6005-98 - Chute Assembly (See Models Used On For Detail)
$160.49
29 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
30 039-4863-00 039-4863-00 - Discharge Lower Bracket Rubber Chute (See Models Used On For Detail)
$32.65
31 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
32 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
33 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
34 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
35A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
35 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
36 025-5339-00 025-5339-00 -.502 ID X 1.00 OD X 1.750 Leng th Spacer Zinc
$5.36
37 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt Yello
$4.39
38 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
39 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
40 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
41 018-6037-00 018-6037-00 - 1/2-13 X 2-1/4 GR 5 Hex Bolts
$2.99
42 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
43.1 039-2125-17 039-2125-17 - Deck Hanger Assembly (See Models Used On For Details)
$15.60
43 039-2125-00 039-2125-00 - Outlaw Deck Hanger Bracket (See Models Used On For Details) (obsolete)
use part #039-2125-17
$15.60
44 037-4000-00 037-4000-00 - All Diesel/Outlaw Models (Will Not Work on Compact Outlaw), 2017 Stand-On (Will Not Work on 36" Stand-On), 2022 Maverick HD Spindle Assembly
$312.34
45 041-0202-00 041-0202-00 - B202 Deck Belt for 72" Outlaw/Outlaw XP
$117.06
46 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
47 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
48 018-7016-00 018-7016-00 - 1/2-13 X 3 GR 5 Hex Bolts Zinc
$2.99
49 025-5203-00 025-5203-00 - Spacer 3/4ODx1/2IDx0.75 Susp f ork
$3.29
50 014-7204-00 014-7204-00 - 2007-2018 72" Spindle Cover
$42.58
51 058-6000-00 058-6000-00 - Black, Round Stick-On Rubber Bumpon
$2.99
52 019-0007-00 019-0007-00 -.517 Square Hole Round Washer
$2.99
53 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
54 048-7020-00 048-7020-00 - Outlaw Toplink Body (See Models Used On For Details)
$28.32
55 013-0008-00 013-0008-00 - 11/16-12 Lefthand Hex Nut-Topl ink
$2.99
56 013-0007-00 013-0007-00 - 11/16-12 Hex Nut Toplink
$2.99
57 032-2000-00 032-2000-00 - Toplink Bushing (See Models Used On For Detail)
$4.37
58 032-2001-00 032-2001-00 - Toplink Sleeve (See Models Used On For Detail)
$4.37
59 048-7022-00 048-7022-00 - Outlaw Toplink LH End (See Models Used On For Details) (obsolete)
use part #048-7000-00
$80.24
60 048-7021-00 048-7021-00 - Outlaw Toplink RH End (See Models Used On For Details) (obsolete)
use part #048-7000-00
$80.24
61 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
62 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley-Capitol Stampings
$35.48
63 039-6945-18 039-6945-18 - 2018-2022 Deck Idler Assembly (See Models Used On For Detail)
$70.97
64 048-7000-00 048-7000-00 - Toplink-Outlaw Decks (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
