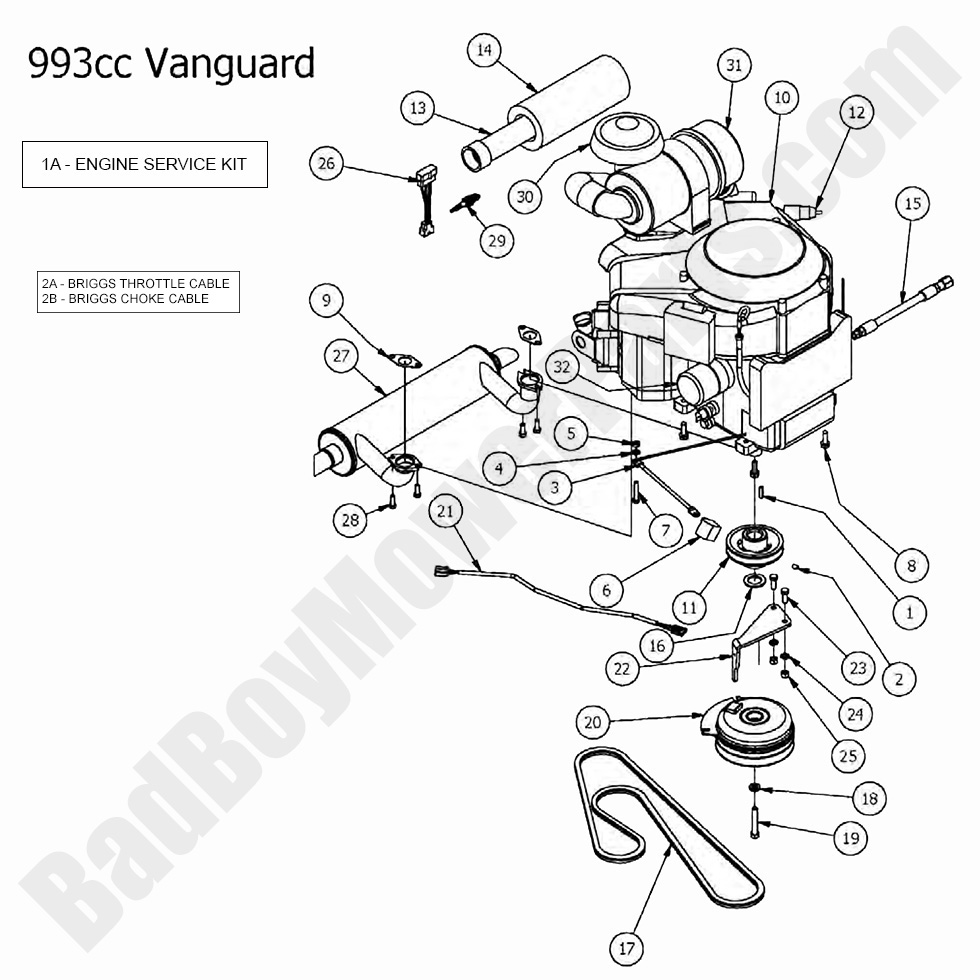

2017 Outlaw & Outlaw Extreme Engine - Vanguard 993c

Engine - Vanguard 993c

The Bad Boy Mower Engine - Vanguard 993c for the 2017 Outlaw & Outlaw Extreme is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the bad boy mowers parts diagrams for the 2017 Outlaw & Outlaw Extreme models as well. Find all of your Bad Boy mowers 2017 Outlaw & Outlaw Extreme parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. If you are not able to find the Bad Boy parts for your 2017 Outlaw & Outlaw Extreme please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2017 Outlaw & Outlaw Extreme Engine - Vanguard 993c
  Position Number SKU Product Title Price
1A 063-2000-10 063-2000-10 - Briggs Vanguard 810/993/999cc Engine Service Kit
$127.15
1 042-6030-00 042-6030-00 - 1/4 x 1 Square Key
$4.81
2 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
3 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
4 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
5 013-8043-00 013-8043-00 - 5/16-18 Hex Nuts Zinc
$2.99
6 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
7 018-8059-00 018-8059-00 - 5/16-18x1-3/4 GR 5 Hex Bolts
$2.99
8 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
9 015-2708-00 015-2708-00 - Exhaust Gasket - 36hp Vanguard
$16.04
10 015-3600-00 015-3600-00 - 36hp Briggs Vanguard Engine
$4686.00
11 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley w/ Extended Shaft (See Models Used On For Details)
$42.58
12 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
13 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
14 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
15 051-5402-00 051-5402-00 - 14mm Oil Drain Hose-36hp Vanguard
$31.22
16 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
17 041-5048-00 041-5048-00 - Pump Belt (See Models Used On For Details)
$60.98
18 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
19 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 GR 5 Hex Bolt
$2.99
20 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$299.59
21 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
22 057-5906-00 057-5906-00 - PTO Engager Holder-Clutch Pup/Lightning/Outlaws
$20.67
23 018-6049-00 018-6049-00 - 3/8-16 X 1 GR 5 Hex Bolts Zinc
$2.99
24 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
25 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
26 086-9001-00 086-9001-00 - Harness Adaptor-36 Vanguard
$35.30
27 015-0049-00 015-0049-00 - Exhaust-36hp Vanguard
$170.24
28 018-0017-00 018-0017-00 - Torx Bolt-Exhaust-23hp Vanguar
$5.82
29 015-8000-00 015-8000-00 - Spark Plug-Kohler Briggs
$10.99
30 063-2045-00 063-2045-00 - Rain Cap-Fits all Canisters (obsolete)
use part #088-3060-00
$53.49
31 015-2705-00 015-2705-00 - 30KO pre-2010/26KA complete canis.
$288.89
32 063-8018-00 063-8018-00 - Oil Filter
$21.39
