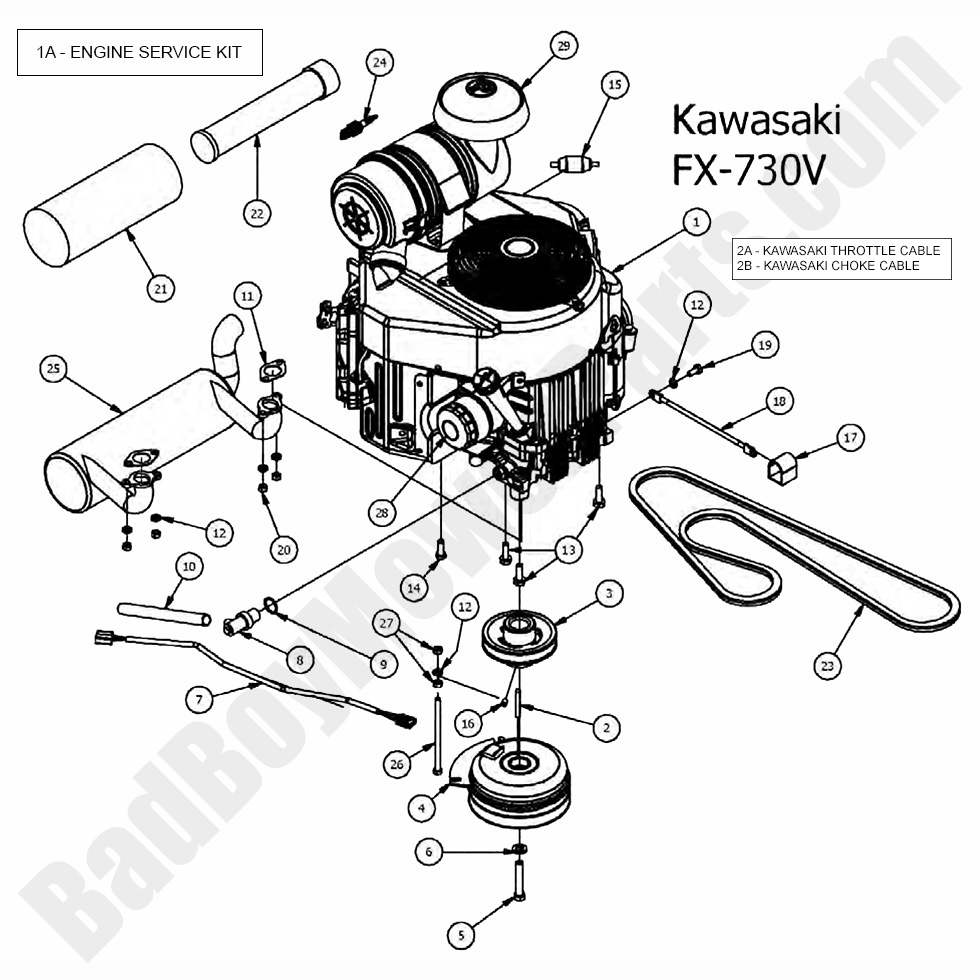

2017 Outlaw & Outlaw Extreme Engine - Kawasaki FX-730V

Engine - Kawasaki FX-730V

The Bad Boy Mower Engine - Kawasaki FX-730V for the 2017 Outlaw & Outlaw Extreme is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the bad boy mowers parts diagrams for the 2017 Outlaw & Outlaw Extreme models as well. Find all of your Bad Boy mowers 2017 Outlaw & Outlaw Extreme parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. If you are not able to find the Bad Boy parts for your 2017 Outlaw & Outlaw Extreme please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2017 Outlaw & Outlaw Extreme Engine - Kawasaki FX-730V
  Position Number SKU Product Title Price
1A 063-2000-14 063-2000-14 - Kawasaki FX691V & FX730V Engine Service Kit
$127.15
1 015-0730-00 015-0730-00 - FX730 Kawasaki Engine
$2780.93
2 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
3 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley w/ Extended Shaft (See Models Used On For Details)
$42.58
4 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$299.59
5 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 GR 5 Hex Bolt
$2.99
6 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
7 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
8 015-5404-00 015-5404-00 - Oil Drain Valve - For Kawasaki FR, FS and FX Engines (obsolete)
use part #051-5404-00
$28.11
9 015-5403-00 015-5403-00 - O Ring for Oil Drain - Kawasak
$7.28
10 051-8064-00 051-8064-00 - 1/2 Clear Braided Hose PRICED/ FOOT
$2.99
11 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
12 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
13 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
14 018-6049-00 018-6049-00 - 3/8-16 X 1 GR 5 Hex Bolts Zinc
$2.99
15 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
16 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
17 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
18 064-0030-00 064-0030-00 - 24 inch Black Cable
$18.72
19 018-5321-00 018-5321-00 - M8 x 1.25 x 20MM Hex Head Bolt
$2.99
20 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
21 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
22 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
23 041-5048-00 041-5048-00 - Pump Belt (See Models Used On For Details)
$60.98
24 015-8001-00 015-8001-00 - Spark plug-Kawasaki (NGK or Equivalent)
$8.79
25 015-0066-00 015-0066-00 - 2015-2017 Stand On Exhaust
$156.17
26 018-5350-00 018-5350-00 - 5/16-18 X 5-1/2 GR 5 Hex Bolt
$2.99
27 013-8043-00 013-8043-00 - 5/16-18 Hex Nuts Zinc
$2.99
28 063-2096-00 063-2096-00 - Oil Filter Kawasaki FR/FS/FX691/FX730/FX751
$18.18
29 088-1071-00 088-1071-00 - 31 KAW Rain Cap for Canister
$64.19
