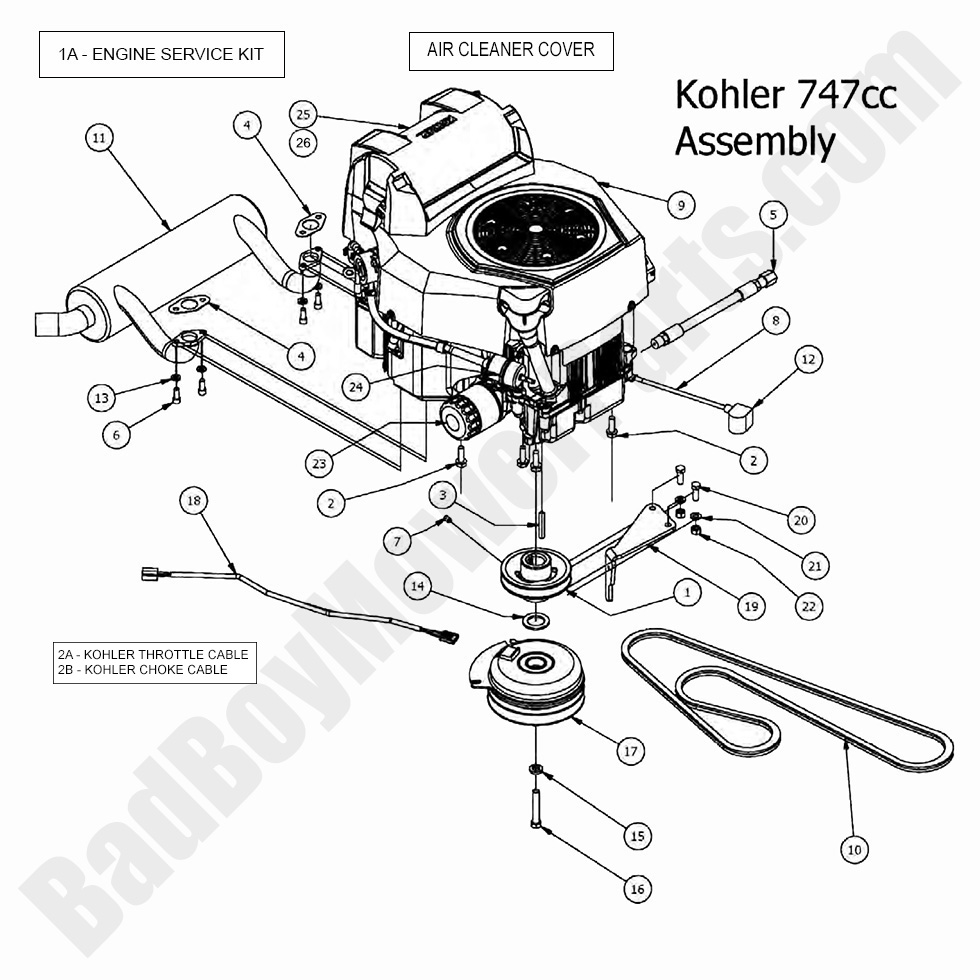

2017 Outlaw & Outlaw Extreme Engine - Kohler 747cc

Engine - Kohler 747cc

The Bad Boy Mower Engine - Kohler 747cc for the 2017 Outlaw & Outlaw Extreme is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the bad boy mowers parts diagrams for the 2017 Outlaw & Outlaw Extreme models as well. Find all of your Bad Boy mowers 2017 Outlaw & Outlaw Extreme parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. If you are not able to find the Bad Boy parts for your 2017 Outlaw & Outlaw Extreme please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2017 Outlaw & Outlaw Extreme Engine - Kohler 747cc
  Position Number SKU Product Title Price
1A 063-2000-07 063-2000-07 - Kohler Confidant Engine Service Kit
$102.57
1 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley w/ Extended Shaft (See Models Used On For Details)
$42.58
2 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
3 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
4 015-2751-00 015-2751-00 - Exhaust Gasket for 27,30 hp Kohler Engines
$6.56
5 015-5401-00 015-5401-00 - Kohler/Briggs Oil Drain Valve
$35.48
6 018-8067-00 018-8067-00 - 5/16-18 X 3/4 SOCKET C/S
$2.99
7 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
8 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
9 015-2030-00 015-2030-00 - 25hp Kohler-2014 CZT, Oulaw ZT740-3017
$2994.93
10 041-5048-00 041-5048-00 - Pump Belt (See Models Used On For Details)
$60.98
11 015-0065-00 015-0065-00 - 2014-2018 Kohler Outlaw Muffler 747cc
$184.56
12 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
13 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
14 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
15 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
16 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 GR 5 Hex Bolt
$2.99
17 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$299.59
18 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
19 057-5906-00 057-5906-00 - PTO Engager Holder-Clutch Pup/Lightning/Outlaws
$20.67
20 018-6049-00 018-6049-00 - 3/8-16 X 1 GR 5 Hex Bolts Zinc
$2.99
21 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
22 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
23 063-5000-00 063-5000-00 - 25/26 HP Kohler Oil Filter ZT
$20.32
24 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
25 063-5005-00 063-5005-00 - 25hp Kohler CZT/Outlaw Air Filte
$32.09
26 063-5006-00 063-5006-00 - 25hp Kohler CZT/Out Precleaner
$9.47
