2017 Outlaw & Outlaw Extreme Seat Frame

Seat Frame

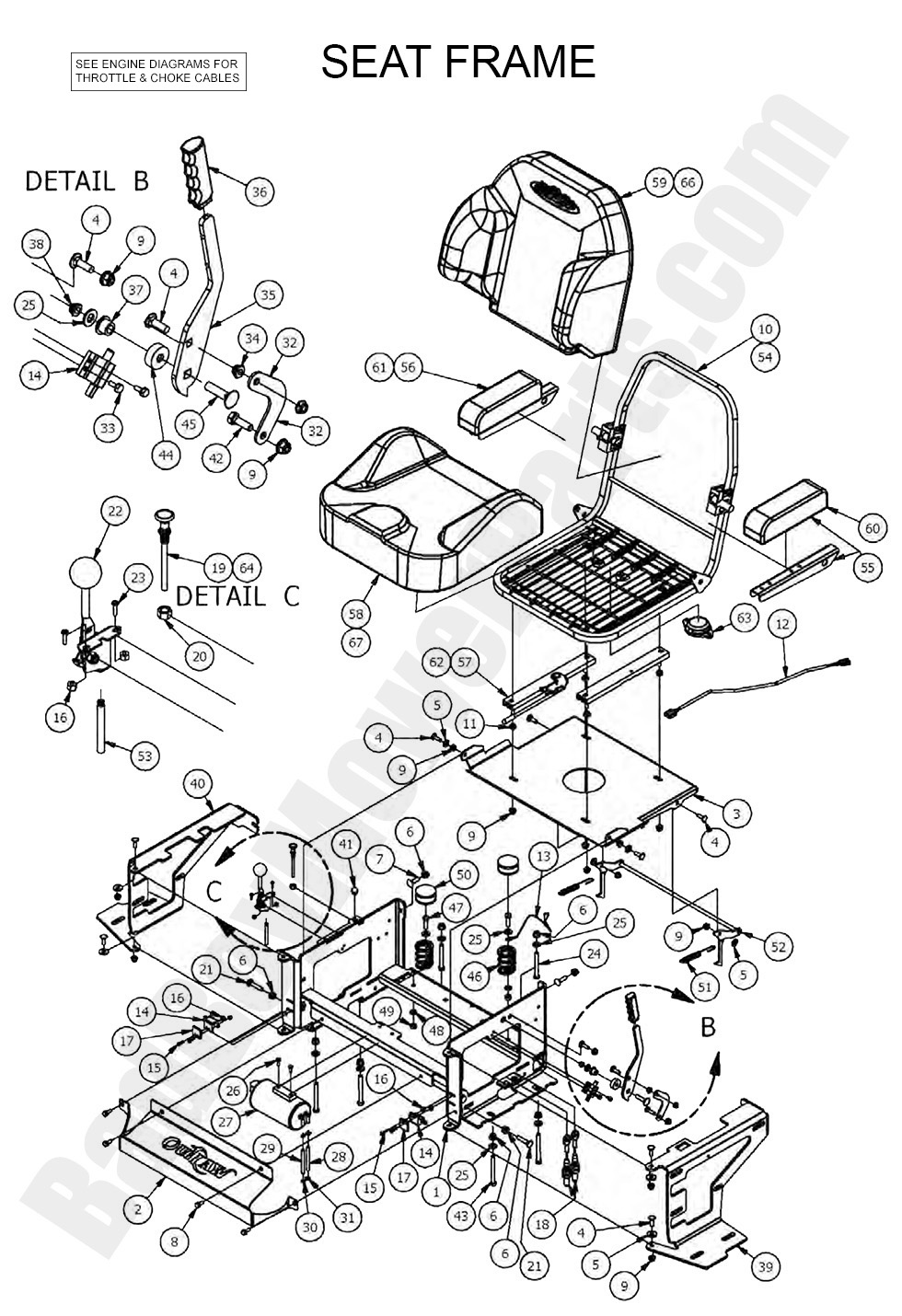

The Bad Boy Mower Seat Frame for the 2017 Outlaw & Outlaw Extreme is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the bad boy mowers parts diagrams for the 2017 Outlaw & Outlaw Extreme models as well. Find all of your Bad Boy mowers 2017 Outlaw & Outlaw Extreme parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. If you are not able to find the Bad Boy parts for your 2017 Outlaw & Outlaw Extreme please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2017 Outlaw & Outlaw Extreme Seat Frame
  Position Number SKU Product Title Price
1 080-5116-17 080-5116-17 - 2017 Outlaw Seat Bracket
$427.99
2 014-2100-00 014-2100-00 - Outlaw Cooler Cover
$21.39
3 026-2016-00 026-2016-00 -Outlaw Seat Plate (See Models Used On For Details)
$99.32
4 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
5 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
6 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
7 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
8 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F
$2.99
9 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
10 071-5060-00 071-5060-00 - 2011-2018 Outlaw Models & 2019 Rebel Seat
$748.99
11 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
12 036-5300-00 036-5300-00 - Seat Switch Adaptor
$15.55
13 064-8081-00 064-8081-00 - Seat Cable (See Models Used On For Details)
$15.60
14 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
15 018-8058-00 018-8058-00 - 10-24 X 1 BS C/S 18-8 SS
$2.99
16 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zin c Orange Nylon
$2.99
17 025-6041-00 025-6041-00 - Switch Block Plastic
$2.99
18 064-8056-00 064-8056-00 - Long Brake Cable
$53.49
19 054-8017-00 054-8017-00 - 62" Choke Cable For MZ, ZT, CZT, Maverick, Rebel, Rogue, Outlaw XP Also Works On Outlaw & Pup/Lightning Models with 30hp Kohler (Not For 2013-2016 MZs With Kawasaki Engines)
$25.80
20 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nuts Zinc
$2.99
21 018-0009-00 018-0009-00 - 3/8 x 1 3/4 Carriage Bolt
$2.99
22A 055-2013-00 055-2013-00 - Throttle/Brake Head Ball
$12.48
22 055-2012-00 055-2012-00 - Universal Throttle/Brake Lever (Knob Not Included)
$25.54
23 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
24 018-4700-00 018-4700-00 - 3/8-16 X 3 GR 5 Hex Bolts Zinc
$2.99
25 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
26 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT CL 8
$2.99
27 067-0020-00 067-0020-00 - Carbon Canister ZT,CZT,Outlaw RY652CC
$62.40
28 051-8072-00 051-8072-00 - 1/4" Vinyl Tubing - Black (Priced Per Foot)
$2.99
29 051-8073-00 051-8073-00 - 3/16" Vinyl Tubing (Priced Per Foot)
$2.99
30 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
31 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 Vinyl Hose (See Models Used On For Detail)
$2.99
32 039-0150-00 039-0150-00 - Brake Cable Adapter Bracket2015 Outlaws/XP
$18.72
33 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch-ZT
$2.99
34 013-9005-00 013-9005-00 - 5/16-18 Nylock Jam Nut
$2.99
35 069-1000-00 069-1000-00 - Brake Handle Cam Over
$7.28
36 069-7000-00 069-7000-00 - Rubber Brake Grip
$6.41
37 032-5053-00 032-5053-00 - Bronze Bushing SF-1220-8 2013 & UP CZT/ZT Brake Bushing
$2.99
38 013-0009-00 013-0009-00 - 3/8-16 Hex Flange Top L/N
$2.99
39 031-2045-00 031-2045-00 - 2016-2018 Outlaw Tank Support (Left)
$58.84
40 031-2040-00 031-2040-00 - 2015-2018 Outlaw Tank Support (Right)
$58.84
41 014-2000-00 014-2000-00 - Black Plug - 5/8" Head
$2.99
42 018-2007-00 018-2007-00 - 5/16-18 X 1 GR 5 Hex Bolt Zinc
$2.99
43 018-1010-00 018-1010-00 - 3/8-16x3-1/2 Grade 5 Hex Bolt
$2.99
44 025-0001-00 025-0001-00 - 2015-2022 Brake Lever Spacer
$8.01
45 018-4706-00 018-4706-00 - 3/8 x 1 1/2 Carriage Bolt
$2.99
46 034-8045-00 034-8045-00 - Seat Spring
$20.49
47 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 GR 5 Hex Bolt
$2.99
48 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
49 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
50 014-8047-00 014-8047-00 - Rubber Cap Cover
$8.93
51 034-1025-00 034-1025-00 - Brake Spring (See Models Used On For Detail)
$12.48
52 028-0085-00 028-0085-00 - Seat Latch Rod Assembly (See Models Used On For Detail)
$26.70
53A 055-8017-00 055-8017-00 - Throttle Cable - For Outlaws With FX850 Kawasaki Engines and All Pup/Lightning/AOS Gas Models without 32hp Briggs
$45.29
53 055-8021-75 055-8021-75 - 52" Outlaw Throttle Cable ONLY (Excludes Outlaws w/ FX850 Kawasaki Engines), Also Fits 2019-2022 Rebel, Renegade, Rogue, and Revolt (27hp Kawasaki, Yamaha, and Kohler, 29.5 EFI Kawasaki, 33hp EFI Kohler and Yamaha, 37hp EFI Vanguard)
$28.88
54 071-5055-00 071-5055-00 - 2016-2018 Compact Outlaw Seat
$534.99
55 071-5056-00 071-5056-00 - Left Armrest w/Pad-071-5055-00
$70.97
56 071-5057-00 071-5057-00 - Righ Armrest w/Pad-071-5055-00
$70.97
57 071-2020-50 071-2020-50 - Seat Rails-Wise Seats (obsolete)
use part #071-2012-00
$70.92
58 071-5063-00 071-5063-00 - Seat Cover for 071-5060-00 for the 2016 - 2018 Outlaw, Outlaw/XP, 2019-2021 Rebel
$129.13
59 071-5064-00 071-5064-00 - Back Cover for 071-5060-00 Used on 2016- 2018 Outlaw, Outlaw/XP, 2019 - 2021 Rebel
$171.72
60 071-5062-00 071-5062-00 - Pair of Arm Pads for the071-5060-00 2015 Outlaw Seat
$79.58
61 071-5061-00 071-5061-00 - Pair of Armrest for the 071-5060-00 2016 - 2018 Outlaw, Outlaw/XP, 2019-2021 Rebel
$124.87
62 071-5015-00 071-5015-00 - Seat Rails (See Models Used On for Details)
$93.69
63 071-8061-00 071-8061-00 - Seat Switch (See Models Used On For Detail)
$19.14
64 054-8016-00 054-8016-00 - 47" Choke Cable For AOS, Pup, Lightning, 2016-2018 Outlaw/Outlaw Extreme Units with Kawasaki FX730 & FX850 Engines and 2013-2016 MZ Units With Kawasaki Engines. (Will Not Work On Units With 30hp Engines)
$28.88
66 071-5058-00 071-5058-00 - Back Cover for 071-5055-00
$160.49
