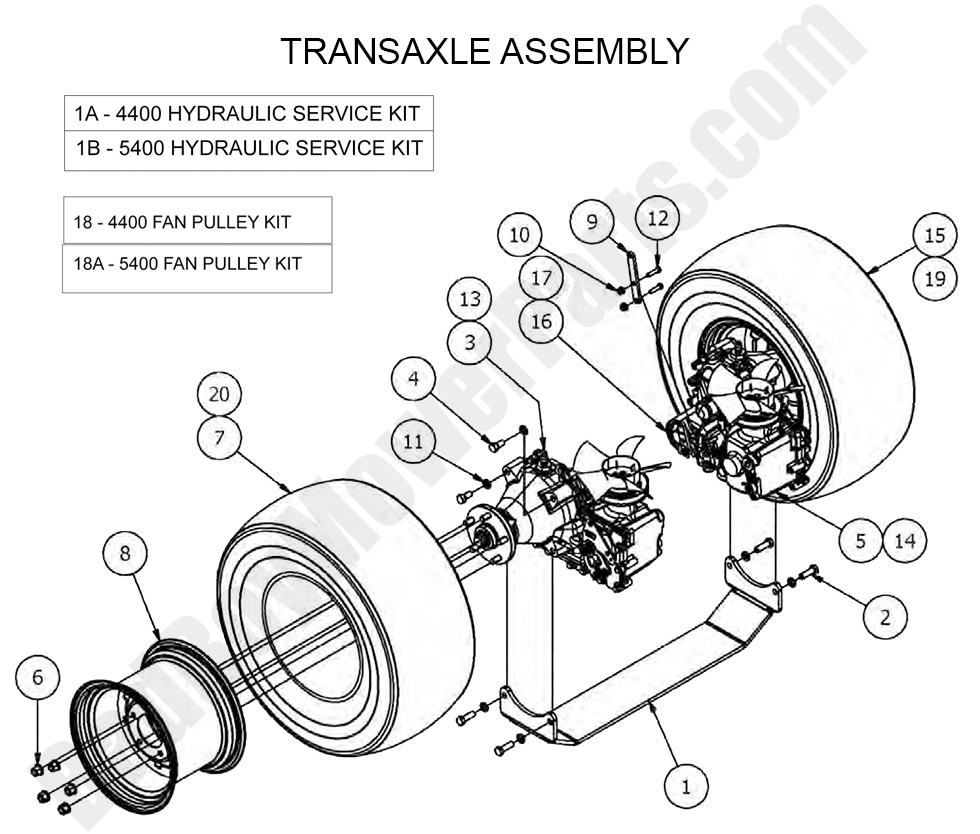

2017 Outlaw & Outlaw Extreme Transaxle Assembly

Transaxle Assembly

The Bad Boy Mower Transaxle Assembly for the 2017 Outlaw & Outlaw Extreme is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the bad boy mowers parts diagrams for the 2017 Outlaw & Outlaw Extreme models as well. Find all of your Bad Boy mowers 2017 Outlaw & Outlaw Extreme parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. If you are not able to find the Bad Boy parts for your 2017 Outlaw & Outlaw Extreme please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2017 Outlaw & Outlaw Extreme Transaxle Assembly
  Position Number SKU Product Title Price
1A 085-4050-00 085-4050-00 - Hydro-Gear ZT4400 Hydro Service Kit
$124.44
1B 085-4050-01 085-4050-01 - Hydro-Gear ZT5400 Hydro Service Kit
$159.92
1 203-0100-00 203-0100-00 - Outlaw Transaxle Cross Brace
$64.19
2 018-5006-00 018-5006-00 - 1/2-13 X 1-1/2 GR 5 Hex Bolt, Coarse Thread Bolt (For Use On Spindles Please Refer To Item Details)
$2.99
3 050-7000-00 050-7000-00 - 5400 Transaxle - Left - 2015-2018 Outlaw Extreme and 2014 & Older Outlaw/Outlaw Extreme
$962.99
4 018-2030-00 018-2030-00 - 1/2 x 1 Bolt
$2.99
5 050-7001-00 050-7001-00 - 5400 Transaxle - Right - 2015-2018 Outlaw Extreme and 2014 & Older Outlaw/Outlaw Extreme
$909.49
6 013-3000-00 013-3000-00 - Acorn Lug Nut
$3.29
7 022-5349-00 022-5349-00 - 24 x 12 - 12 Tire Pro Maxxis (One Tire Only)
$246.99
8 022-4070-00 022-4070-00 - Black Wheel 12x8.5" For 2015 & Newer Outlaw/Outlaw XP, Rebel & 54" Rogue
$151.99
9 039-2135-00 039-2135-00 - Brake Adapter Bracket (4400 Transaxle) 2015-2018 Outlaw/Extreme, 2019-2022 Rebel
$7.69
10 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
11 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
12 018-2006-00 018-2006-00 - 5/16-18 X 1-1/4 GR 5 Hex Bolt
$2.99
13 050-1000-00 050-1000-00 - 4400 Transaxle-Left-Base Outlaw (Not 2015 Outlaw Extreme)
$973.69
14 050-1050-00 050-1050-00 - 4400 Transaxle - Right
$973.69
15 022-4050-00 022-4050-00 - Outlaw Black Assy24x12-12
$312.99
16 063-1060-00 063-1060-00 - Hydro Filter for Outlaw ZT5400 Transaxles
$28.88
17 063-1070-00 063-1070-00 - Hydraulic Filter for ZT4400 Transaxle
$26.74
18A 050-2073-00 050-2073-00 - Fan/Pulley Kit for Outlaw with ZT-5400 Transaxle See Product Details for More Info
$127.99
18 050-1025-00 050-1025-00 - Fan/Pulley Kit for Outlaw with ZT-4400 Transaxle See Product Details for More Info
$117.12
19 022-4080-00 022-4080-00 - 2017 Outlaw Assy-24x12-12 Reaper Turf
$310.99
20 022-4075-00 022-4075-00 - 2017 Outlaw Extreme/XP Reaper Tire fits the 022-4080-00
$192.99
