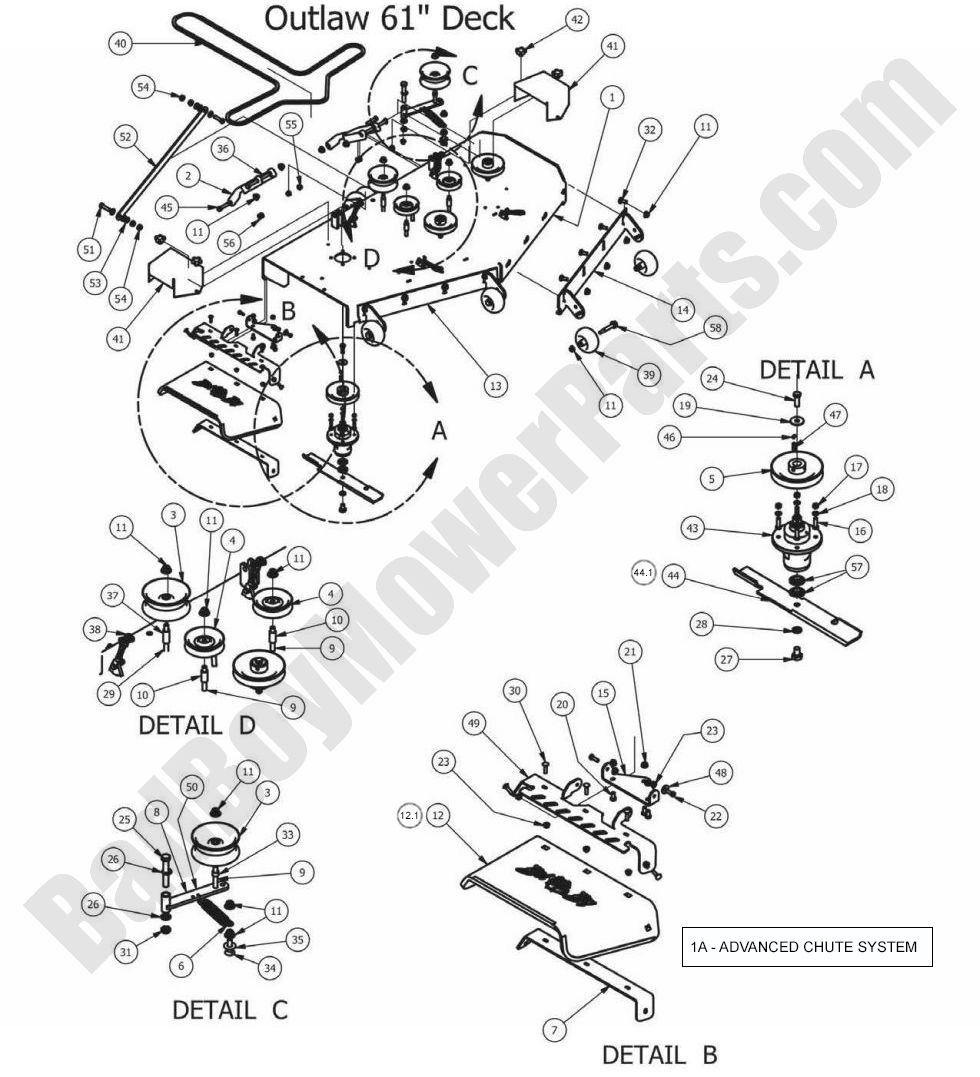

2013 Outlaw & Outlaw Extreme 61" Deck Assembly

61" Deck Assembly

The Bad Boy Mower parts diagram for the 2013 Outlaw 61" Deck is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2013 Outlaw models. Find all of your Bad Boy mowers 2013 Outlaw parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2013 Outlaw 61" Deck. If you are not able to find the Bad Boy parts for your 2013 Outlaw please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2013 Outlaw & Outlaw Extreme 61" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2024 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$266.99
1 060-6100-00 060-6100-00 - 2010-2014 Outlaw/XP, 2012-2014 Diesel (28hp, 1100CC) 61" Deck Shell
$1563.84
2 031-6010-00 031-6010-00 - Deck Hanger (One Piece) (obsolete)
use part #031-6020-00
$141.97
3 033-5001-00 033-5001-00 - 5 3/4" Flat Idler Double Width Pulley
$56.77
4 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
5 033-6004-00 033-6004-00 - 6 1/4 Spindle Deck Pulley 60 & 61 Decks DDB-100 (without set screw)
$35.48
6 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
7 039-4863-00 039-4863-00 - Discharge Lower Bracket Rubber Chute (See Models Used On For Detail)
$32.65
8 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
9 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
10 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500 Leng th Spacer Zinc
$3.62
11 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
12.1 210-6005-98 210-6005-98 - Chute Assembly (See Models Used On For Detail)
$160.49
12 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
13 060-6220-00 060-6220-00 - 61 Adjustable Deck Front (Left Gate) (See Models Used On For Detail)
$103.99
14 060-6210-00 060-6210-00 - 61 Adjustable Deck Front (Right Gate) (See Models Used On For Detail)
$103.99
15 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
16 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 GR 5 Hex Bolt
$2.99
17 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
18 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
19 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
20 018-5250-00 018-5250-00 - 3/8-16 X 3/4 GR 5 Hex Bolts
$2.99
21 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
22 018-2007-00 018-2007-00 - 5/16-18 X 1 GR 5 Hex Bolt Zinc
$2.99
23 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
24 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 GR 5 Bolts Zinc, Fine Thread Bolt
$2.99
25 018-5311-00 018-5311-00 - 5/8-11 X 4 GR 5 Hex Bolts Zinc
$4.06
26 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
27 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
28 019-4807-00 019-4807-00 - 5/8 Lockwasher Zinc
$2.99
29 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt Yello
$4.39
30 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
31 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknu t Zinc
$2.99
32 018-3003-00 018-3003-00 - 1/2 x 1 1/4 Carriage Bolt
$2.99
33 025-5203-00 025-5203-00 - Spacer 3/4ODx1/2IDx0.75 Susp f ork
$3.29
34 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
35 019-2040-00 019-2040-00 - 1/2 Flat Washer
$2.99
36 018-1090-00 018-1090-00 - 1/2-13x5 1/2 Hex Bolt Grade 5
$3.29
37 025-5339-00 025-5339-00 -.502 ID X 1.00 OD X 1.750 Leng th Spacer Zinc
$5.36
38 047-2000-00 047-2000-00 - 2 - Link Adjustable Deck Hanger - Outlaw Models (obsolete)
use part #046-6048-98
$32.09
39A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
39 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
40 041-0178-00 041-0178-00 - B178 Deck Belt For 61" Outlaw/Outlaw XP
$96.29
41 014-6010-00 014-6010-00 - Plastic Pulley Cover (See Models Used On For Details) (obsolete)
use part #014-4000-00
$28.39
42 045-6043-00 045-6043-00 - 5/16 Black Plastic Knob Spindle Cover
$4.39
43 037-8000-50 037-8000-50 - Double Bearing Spindle - Aluminum Housing (obsolete)
use part #037-4000-00
$312.34
44.1 038-6081-00 038-6081-00 - 61" Gator Blade for Outlaw
$22.99
44 038-6080-00 038-6080-00 - 61" High Lift Fusion Blade
$22.99
45 018-6037-00 018-6037-00 - 1/2-13 X 2-1/4 GR 5 Hex Bolts
$2.99
46 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
47 042-6030-00 042-6030-00 - 1/4 x 1 Square Key
$4.81
48 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
49 039-4864-00 039-4864-00 - Discharge Chute Upper Hanger Plate (See Models Used On For Detail)
$42.52
50 039-6945-98 039-6945-98 - Deck Idler Assy (See Models Used On For Details)
$78.08
51 018-5049-00 018-5049-00 - 1/2-13 X 2 GR 5 Hex Bolts Zinc
$2.99
52 028-6060-00 028-6060-00 - Panhard Linkage Bar Outlaw and Diesel Decks (See Models Used On For Detail)
$12.77
53 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
54 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
55 032-5056-00 032-5056-00 - Flange Bushing-Deck Arms EF081108 - Frame Mounted
$5.82
56 032-5057-00 032-5057-00 - Flange for Lower Deck Arm SF-1622-5
$5.82
57 037-8001-00 037-8001-00 - Double Bearing for Spindle (See Models Used On For Details)
$46.78
58 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
