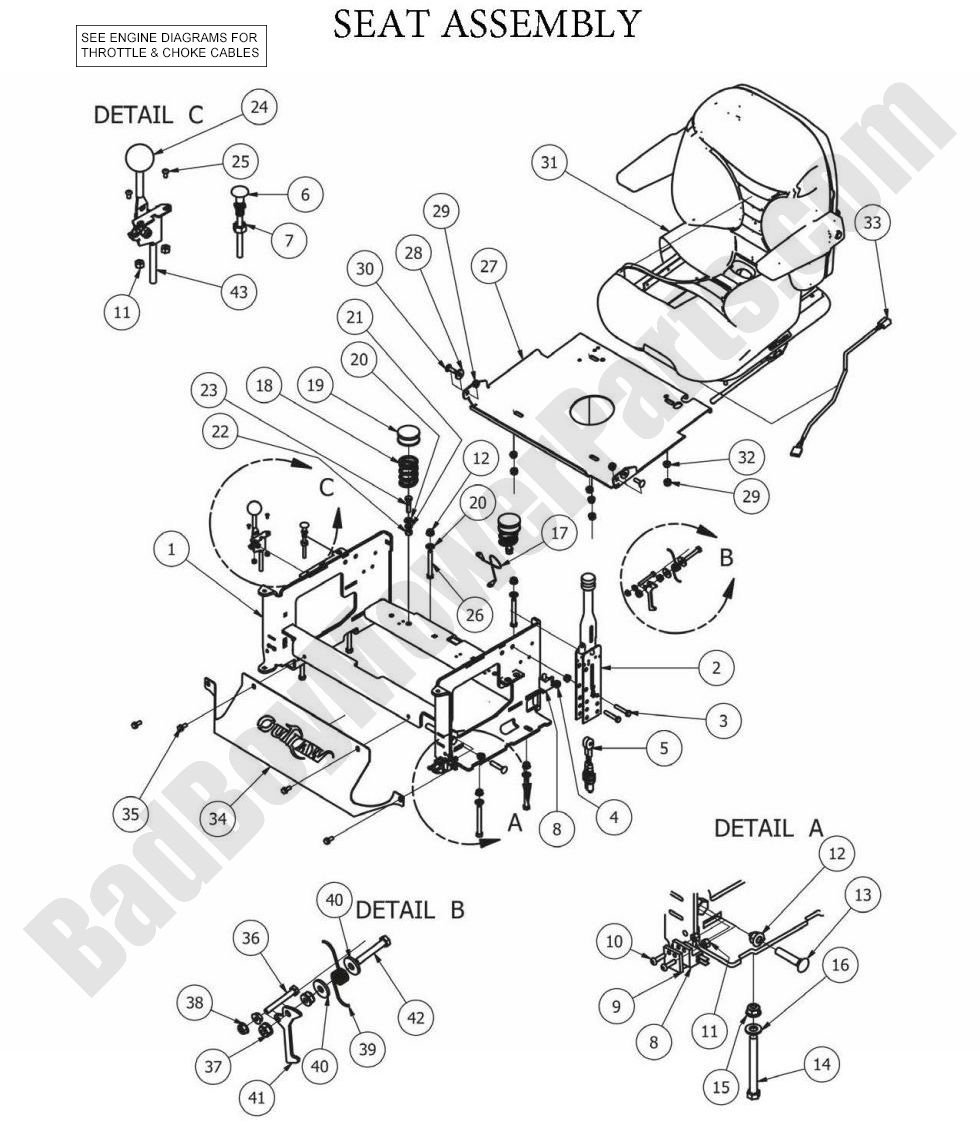

2013 Outlaw & Outlaw Extreme Seat Assembly

Seat Assembly

The Bad Boy Mower parts diagram for the 2013 Outlaw Seat Assembly is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2013 Outlaw models. Find all of your Bad Boy mowers 2013 Outlaw parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2013 Outlaw Seat Assembly. If you are not able to find the Bad Boy parts for your 2013 Outlaw please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2013 Outlaw & Outlaw Extreme Seat Assembly
  Position Number SKU Product Title Price
1 080-5000-00 080-5000-00 - Outlaw Seat Bracket 2012 Assembly
$427.99
2 069-8054-00 069-8054-00 - Brake Handle Kit
$127.77
3 018-8059-00 018-8059-00 - 5/16-18x1-3/4 GR 5 Hex Bolts
$2.99
4 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
5 064-8056-00 064-8056-00 - Long Brake Cable
$53.49
6 054-8017-00 054-8017-00 - 62" Choke Cable For MZ, ZT, CZT, Maverick, Rebel, Rogue, Outlaw XP Also Works On Outlaw & Pup/Lightning Models with 30hp Kohler (Not For 2013-2016 MZs With Kawasaki Engines)
$25.80
7 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nuts Zinc
$2.99
8 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
9 025-6041-00 025-6041-00 - Switch Block Plastic
$2.99
10 018-8056-00 018-8056-00 - 10-24x1/2 Buttonhead SCS 18-8
$2.99
11 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zin c Orange Nylon
$2.99
12 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
13 018-0009-00 018-0009-00 - 3/8 x 1 3/4 Carriage Bolt
$2.99
14 018-1010-00 018-1010-00 - 3/8-16x3-1/2 Grade 5 Hex Bolt
$2.99
16 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
17 064-8081-00 064-8081-00 - Seat Cable (See Models Used On For Details)
$15.60
18 034-8045-00 034-8045-00 - Seat Spring
$20.49
19 014-8047-00 014-8047-00 - Rubber Cap Cover
$8.93
21 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
22 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
23 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
24A 055-2013-00 055-2013-00 - Throttle/Brake Head Ball
$12.48
24 055-2012-00 055-2012-00 - Universal Throttle/Brake Lever (Knob Not Included)
$25.54
25 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
26 018-4700-00 018-4700-00 - 3/8-16 X 3 GR 5 Hex Bolts Zinc
$2.99
27 026-2006-00 026-2006-00 - Seat Plate (See Models Used On For Details)
$99.32
28 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
30 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
31 071-5000-00 071-5000-00 - 2010-2014 Outlaw Seat Use without ROPS (obsolete)
use part #071-5060-00
$748.99
32 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
33 036-5300-00 036-5300-00 - Seat Switch Adaptor
$15.55
34 014-2100-00 014-2100-00 - Outlaw Cooler Cover
$21.39
35 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F
$2.99
36 018-0011-00 018-0011-00 - 1/4-20 x 2 Hex Bolt
$2.99
38 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/ Serrations
$2.99
39 034-1075-00 034-1075-00 - Torsion Spring-Seat Latch
$5.49
41 031-0200-00 031-0200-00 - Seat Latch Lever
$2.99
42 018-0012-00 018-0012-00 - 5/16-18 X 2 HEX C/S (GR.5) ZC
$2.99
43A 055-8017-00 055-8017-00 - Throttle Cable - For Outlaws With FX850 Kawasaki Engines and All Pup/Lightning/AOS Gas Models without 32hp Briggs
$45.29
43 055-8021-00 055-8021-00 - Throttle Cable - Used on Pup/Lightning Models With 32hp Briggs Engines and all Outlaw models without FX850 Kawasaki Engines
$45.29
